Heinrich Kopp Interruptor de cruzamento AP para locais húmidos BLUE ELECTRIC cinzento 10A 250V IP44 interruptor de comutação de sobrepor

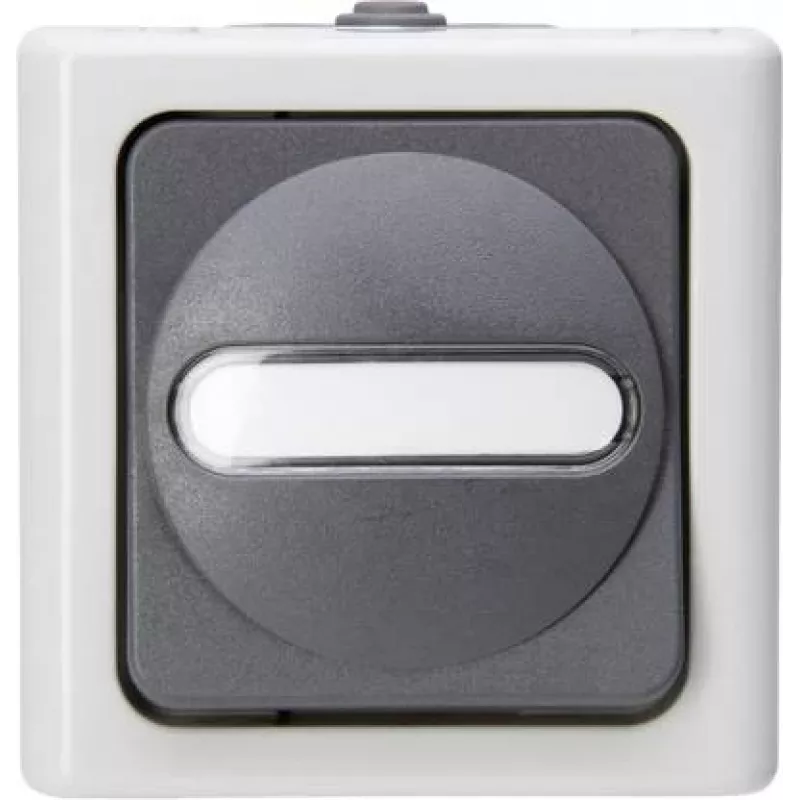

The Heinrich Kopp Kreuzschalter AP-Feuchtraum BLUE ELECTRIC is a robust surface-mounted changeover switch designed for damp and outdoor protected areas. With an IP44 rating, it offers reliable protection against splashing water and dust ingress, making it ideal for cellars, garages, workshops, and outdoor installations. Rated at 10A and 250V AC, this 1-pole switch features screw terminals for secure wiring up to 2.5 mm². Its thermoplastic housing in light grey (Lichtgrau) ensures durability and long-lasting performance.

Advantages

This switch provides dependable switching in challenging environments. The IP44 ingress protection safeguards against moisture and dust, while the surface-mounted design simplifies installation. Screw terminals accommodate solid and stranded conductors up to 2.5 mm², ensuring a reliable connection. The changeover (2-way) function allows control of a single light or load from two locations, offering flexibility in lighting circuits.

Suitable for

• Damp rooms such as bathrooms and laundry areas
• Cellars, garages, and workshops
• Outdoor protected areas like covered patios and garden sheds
• Industrial and commercial environments requiring robust switching

Key specifications

• Product Type: Electrical Switch (Changeover / 2-Way)
• Mounting: Surface-mounted (AP)
• IP Rating: IP44
• Rated Current: 10 A
• Rated Voltage: 250 V AC
• Frequency: 50/60 Hz
• Number of Poles: 1-pole
• Material: Thermoplastic
• Housing Color: Grey (Lichtgrau)
• Connection: Screw Terminals (up to 2.5 mm²)
• Operating Temperature: -25°C to +40°C
• Certification: CE

Recommendations

For optimal performance, use with appropriate junction boxes and ensure proper sealing of cable entries to maintain IP44 protection. This switch is part of the BLUE ELECTRIC series, offering reliable switching solutions for demanding environments.
