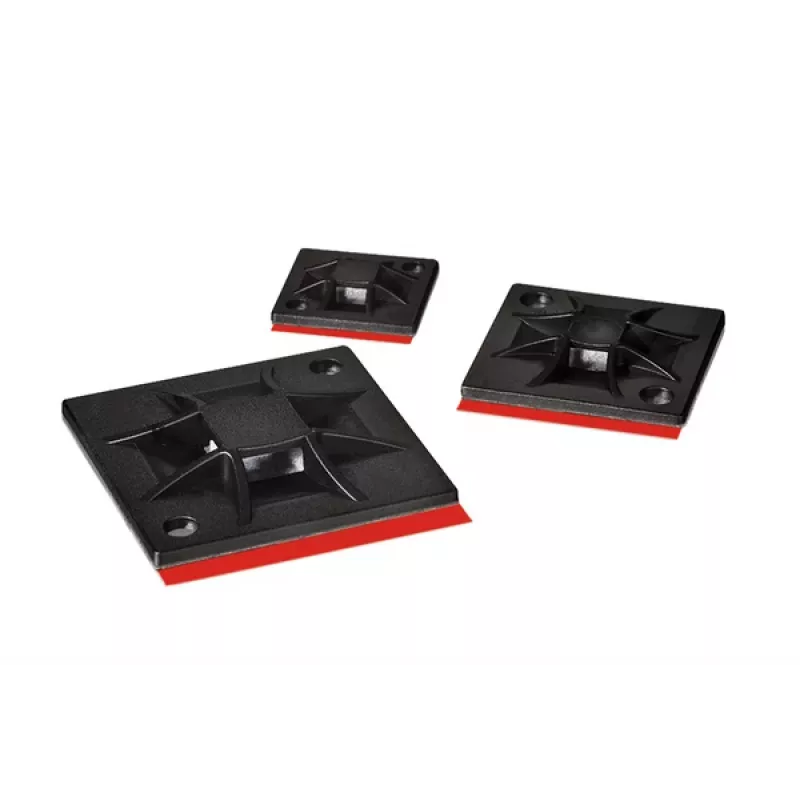

HellermannTyton 151-01595 QM40APT-I-PA66-NA base de montagem aparafusável autoadesiva, natural, PA66, isenta de halogéneos, isenta de silicone

This square mounting base supports cable ties up to 8 mm wide and offers both self-adhesive and screwable mounting for secure cable management.

Overview

The HellermannTyton QM40APT-I-PA66-NA is a natural-coloured mounting base made from polyamide 6.6 (PA66). It is designed for indoor use and provides a reliable anchor point for cable ties, with a maximum cable tie width of 8.0 mm. The base can be mounted either by its self-adhesive backing or by a screw through the central hole (4.3 mm diameter, M4 recommended).

What stands out

• Dual mounting: self-adhesive or screwable for flexible installation
• Halogen-free and silicone-free material
• UL94 V2 flammability rating
• Wide operating temperature range: -40 °C to +85 °C
• Compact 40 x 40 mm footprint with 7.5 mm height

Technical details

• Material: Polyamide 6.6 (PA66)
• Colour: Natural
• Adhesive type: Synthetic rubber
• Max. cable tie width: 8.0 mm
• Screw hole diameter: 4.3 mm
• Recommended screw size: M4
• Operating temperature: -40 °C to +85 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• Silicone-free: Yes
• RoHS compliant: Yes
• Length: 40 mm
• Width: 40 mm
• Height: 7.5 mm

Our verdict

A versatile and reliable mounting base for indoor cable management, offering dual mounting options and robust material properties.
