HellermannTyton 151-01643 RCA90SM6-PA66HIRHSUV/ST/ZN-BK clip em P com catraca, fixação por parafuso, PA66HIRHSUV, placa de aço zincado, preto

Secure bundles from 6.0 to 90.0 mm with this adjustable ratchet P-clamp, built from high-impact, heat-stabilised, UV-stabilised PA66HIRHSUV and featuring a zinc-plated steel mounting plate for durable screw fixing.

Overview

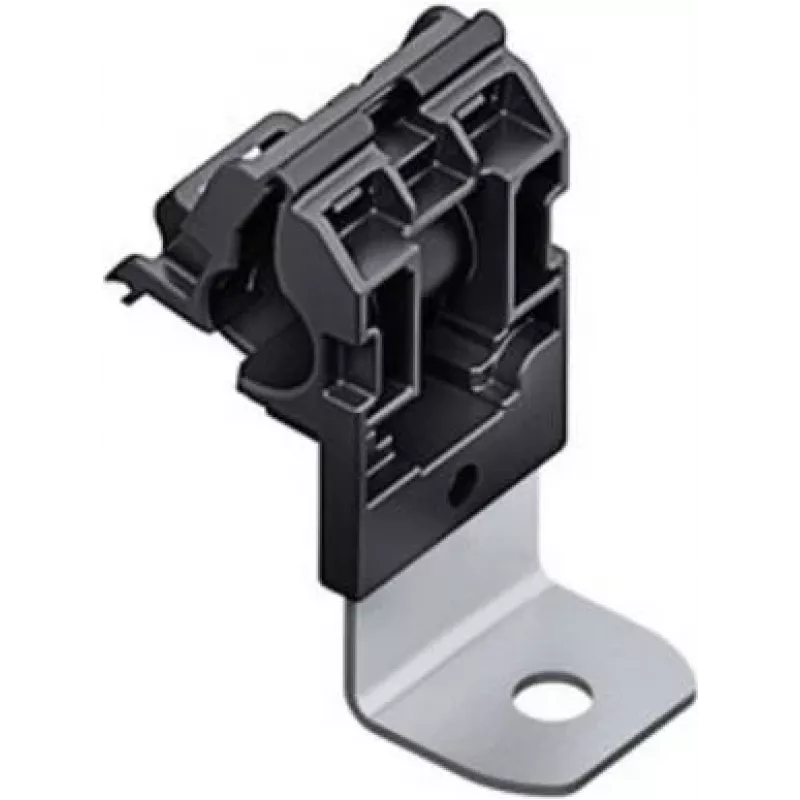

The HellermannTyton 151-01643 RCA90SM6 is a releasable ratchet P-clamp designed for fastening cables, hoses, and pipes. Its ratchet mechanism allows for precise adjustment and secure locking across a wide bundle diameter range, while the integrated steel plate provides a robust screw-mount interface.

What stands out

• Adjustable ratchet closure for a firm, releasable grip
• High-impact, heat-stabilised, UV-stabilised polyamide 6.6 body
• Zinc-plated steel mounting plate with 6.5 mm hole for M6 screws
• Halogen-free and RoHS compliant
• Operating temperature from -40 °C to +105 °C

Technical details

• Product type: Ratchet P-Clamp
• Material (clamp body): Polyamide 6.6 (PA66HIRHSUV)
• Material (mounting plate): Steel, zinc-plated
• Colour: Black
• Mounting type: Screw mount
• Mounting hole diameter: 6.5 mm
• Recommended screw size: M6
• Bundle diameter range: 6.0 – 90.0 mm
• Operating temperature: -40 °C to +105 °C
• Flammability rating: UL94 HB
• Halogen-free: Yes
• RoHS compliant: Yes
• Releasable: Yes

Our verdict

A versatile, heavy-duty clamp that combines a wide adjustment range with proven weather resistance, ideal for demanding cable management tasks.
