HellermannTyton abraçadeira de fixação em 2 peças para feixes de 5,0-6,0 mm, montagem em árvore de Natal, PA66, preto, 40 mm de comprimento 156-04098

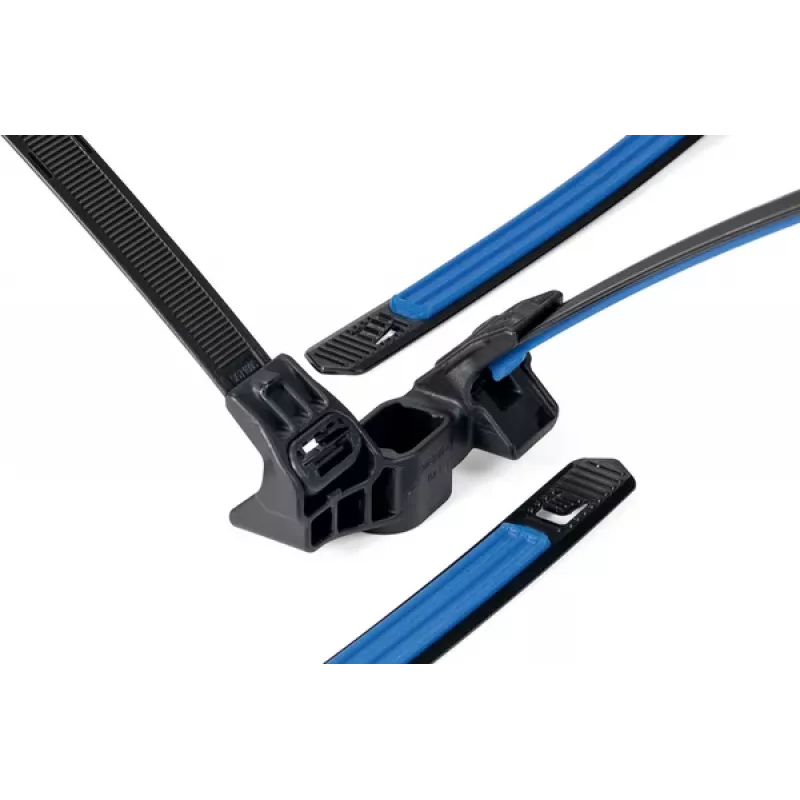

This 2-piece fixing tie securely fastens bundles with a diameter of 5.0 to 6.0 mm to panels using a fir tree mount. Its two-piece design allows for pre-assembly of the cable bundle before mounting, simplifying installation in tight spaces.

Advantages

The fir tree mount provides a secure fit in panels with a thickness of 0.8 to 3.0 mm and a hole diameter of 6.5 mm. Made from UV-resistant, halogen-free polyamide 6.6 (PA66), it withstands temperatures from -40 °C to +85 °C and meets UL94 V2 flammability standards.

Suitable for

• Securing cable bundles in automotive, industrial, and electronics applications
• Panels with mounting holes of 6.5 mm and thickness 0.8-3.0 mm
• Bundles with diameter 5.0-6.0 mm

Key specifications

• Bundle diameter: 5.0 - 6.0 mm
• Mounting hole diameter: 6.5 mm
• Panel thickness: 0.8 - 3.0 mm
• Overall length: 40.0 mm
• Strap width: 4.6 mm
• Head width: 9.0 mm
• Fir tree height: 11.5 mm
• Material: Polyamide 6.6 (PA66)
• Colour: Black
• Operating temperature: -40 °C to +85 °C
• Flammability rating: UL94 V2
• UV resistant, halogen free

Recommendations

For reliable cable management in demanding environments, pair with a pre-drilled panel of 6.5 mm hole diameter and ensure bundle diameter is within the specified range for optimal retention.
