HellermannTyton Caixa de tubo termorretrátil vermelho 12,7 mm x 6,4 mm x 5 m - HIS-PACK12,7/6,4-RD 300-31272

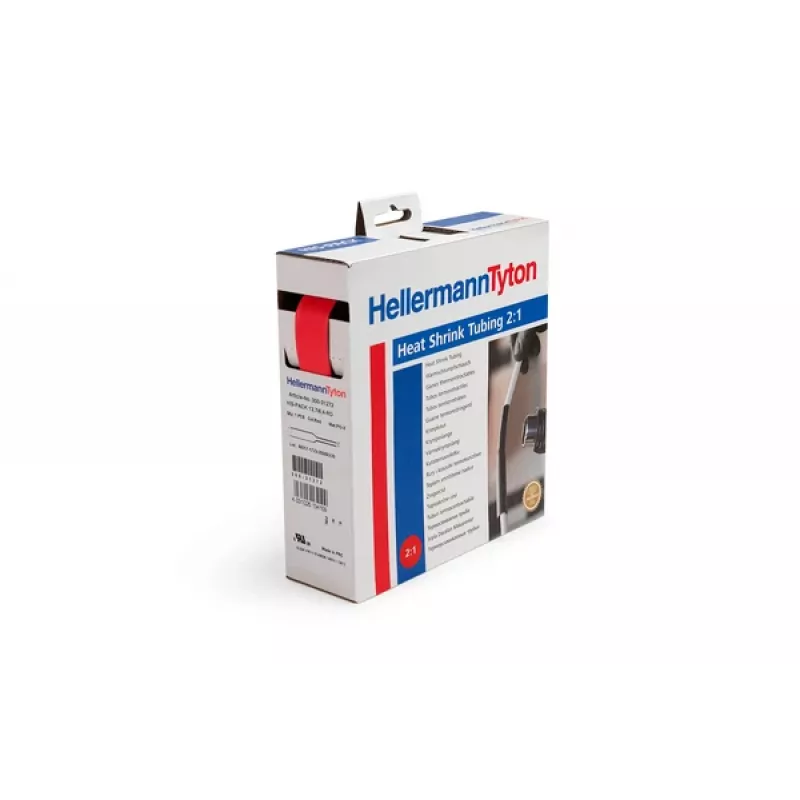

Heat shrink tubing box in red with a 2:1 shrink ratio, supplied in a convenient dispenser box. The tubing has an expanded diameter of 12.7 mm and recovers to 6.4 mm, providing secure insulation and strain relief for cables and connectors.

Advantages

Cross-linked polyolefin construction offers good chemical resistance and a wide operating temperature range from -55 °C to +125 °C. The 5 m length in a dispenser box allows easy storage and controlled dispensing.

Suitable for

• Electrical insulation of splices and terminations
• Strain relief for cables and connectors
• Bundling and colour-coding of wires

Key specifications

• Material: Cross-linked polyolefin
• Shrink ratio: 2:1
• Expanded diameter: 12.7 mm
• Recovered diameter: 6.4 mm
• Length: 5 m
• Colour: Red
• Operating temperature: -55 °C to +125 °C
• Minimum shrink temperature: +100 °C
• Dielectric strength: 20 kV/mm
• Flammability rating: UL94 V2
• Tensile strength: 15 MPa
• Elongation at break: 300%

Recommendations

Use a heat gun set above 100 °C to achieve full recovery. Ensure the tubing size matches the application for a tight, reliable seal.
