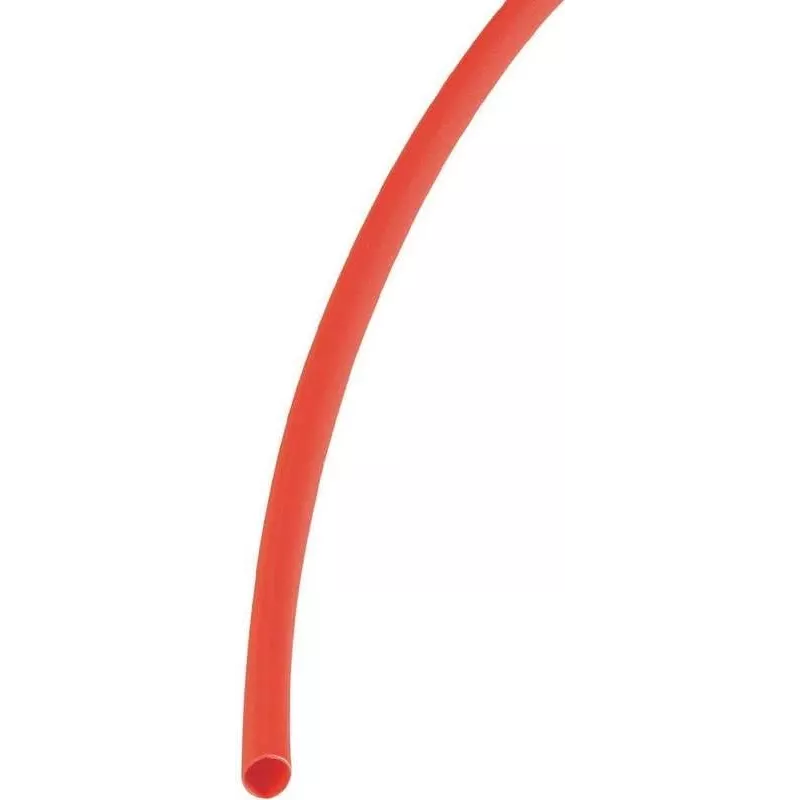

HELLERMANNTYTON Conjunto de tubo termorretrátil HIS-3 3:1 (308-30311) | 210 unid.

Organize and protect electrical connections with the HELLERMANNTYTON HIS-3 heat shrink tubing set. This kit provides a range of pre-cut polyolefin sleeves in five colors, allowing you to insulate, bundle, and identify wires without the need for separate purchases.

Who is it for

Electricians, technicians, and hobbyists who need a convenient assortment of heat shrink tubing for repairs, harness building, or wire marking.

Main features

• 3:1 shrink ratio for secure fit over connectors and splices
• Cross-linked polyolefin material is flexible and durable
• Five colors (black, red, blue, yellow, green) for color-coding
• Pre-cut 200 mm lengths in five diameter sizes
• Self-extinguishing and resistant to chemicals

Specifications

• Shrink ratio: 3:1
• Material: Cross-linked polyolefin
• Operating temperature: -55°C to +135°C
• Minimum shrink temperature: +90°C
• Dielectric strength: 20 kV/mm
• Flammability: Self-extinguishing
• Total pieces: 210
• Piece length: 200 mm
• Colors included: black, red, blue, yellow, green
• Diameter range (pre-shrunk): 1.5 mm to 12.0 mm
• Diameter range (post-shrunk): 0.5 mm to 4.0 mm

Tips

Use a heat gun set to at least 90°C for uniform shrinking. Select a tubing size that is slightly larger than the object to be covered to allow for shrinkage.
