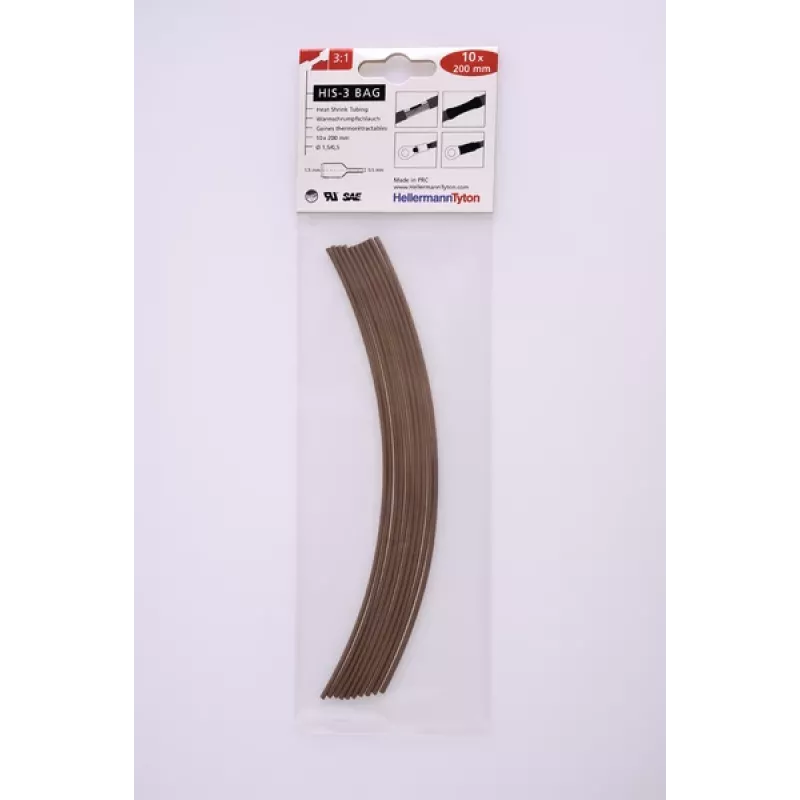

HellermannTyton Conjunto de tubo termorretrátil HIS-3, proporção de retração 3:1, 90 peças, 8 diâmetros, 7 cores, comprimentos de 100 mm 308-30163

With a 3:1 shrink ratio, this heat shrink tubing set provides reliable insulation and protection for a wide range of cable diameters. The cross-linked polyolefin material offers a broad operating temperature range from -55°C to +135°C, making it suitable for demanding environments.

Overview

The HellermannTyton HIS-3 set includes 90 pieces of 100 mm long, thin-wall heat shrink tubing in eight pre-shrunk diameters (1.5 mm to 24 mm) and seven colours: black, red, blue, yellow, green, white, and clear. All pieces are halogen-free and self-extinguishing, with a dielectric strength greater than 20 kV/mm.

What stands out

• 3:1 shrink ratio for a snug fit over connectors and splices
• Wide temperature range: -55°C to +135°C
• Halogen-free and self-extinguishing for enhanced safety
• Assorted colours and diameters for colour coding and identification
• UL Recognized and RoHS compliant

Technical details

• Material: Cross-linked polyolefin
• Minimum shrink temperature: +90°C
• Dielectric strength: > 20 kV/mm
• Wall type: Thin-wall
• Number of pieces: 90
• Tube length per piece: 100 mm
• Included diameters (pre-shrunk): 1.5, 3.0, 4.5, 6.0, 9.0, 12.0, 18.0, 24.0 mm
• Included colours: Black, red, blue, yellow, green, white, clear

Our verdict

An excellent all-round heat shrink tubing kit for electrical insulation, cable bundling, and mechanical protection in professional and hobbyist applications.
