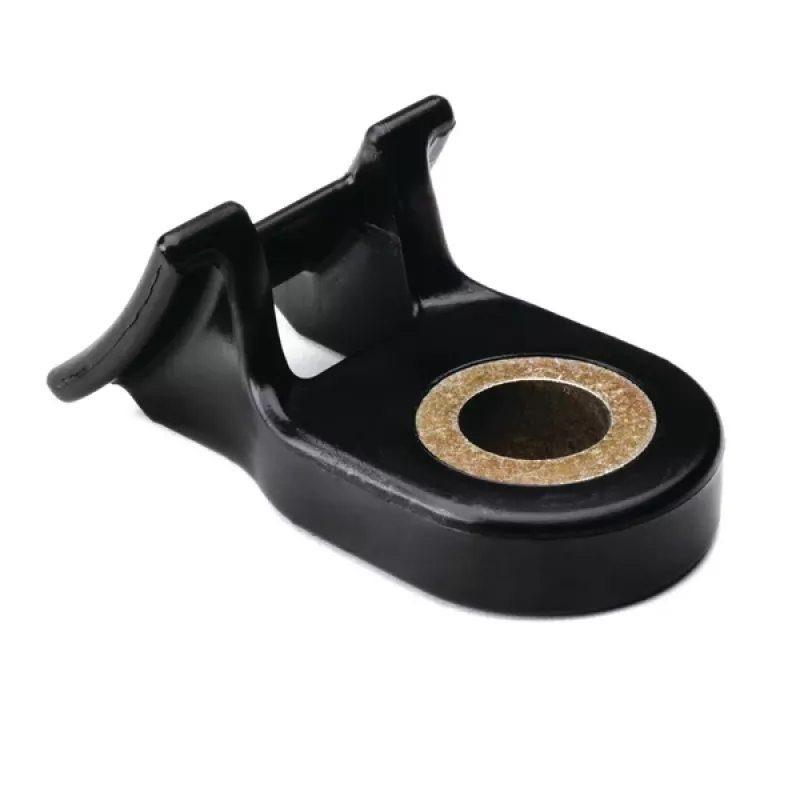

HellermannTyton HDM400-PA66HIRHSUV-BK base aparafusada para abraçadeiras, preto, 40 x 40 x 8 mm, para abraçadeiras de 8 mm, resistente a UV/calor/impacto, sem halogéneos, 1 unid. 151-01224

Routing cables and harnesses in demanding environments often fails when the fixing point cannot withstand heat, UV or mechanical shock. The HellermannTyton HDM400-PA66HIRHSUV-BK screw-mount base solves this by providing a rugged, heat-stabilised and UV-resistant anchor point for cable ties up to 8 mm wide.

Who is it for

Panel builders, automotive harness makers and industrial maintenance teams who need a black, screw-fixed base that keeps bundles secure under vibration, sunlight and temperature swings from -40 °C to +105 °C.

Main features

• Screw-mount design with 5.3 mm fixing hole for M5 or similar fasteners.
• Moulded from PA66HIRHSUV: high-impact, heat-stabilised, UV-resistant polyamide 6.6.
• Accepts cable ties up to 8.0 mm wide.
• Compact 40 x 40 x 8 mm footprint.
• Halogen-free and UL94 V2 rated.

Specifications

• Material: Polyamide 6.6 (PA66HIRHSUV)
• Colour: Black
• Length: 40.0 mm
• Width: 40.0 mm
• Height: 8.0 mm
• Fixing hole diameter: 5.3 mm
• Max. cable tie width: 8.0 mm
• Operating temperature: -40 °C to +105 °C
• Flammability rating: UL94 V2
• UV resistant: Yes
• Impact resistant: Yes
• Heat stabilised: Yes
• Halogen-free: Yes
• Unit count: 1

Tips

Use a pan-head screw with a washer to spread the load on the base. For outdoor installations, pair with a UV-stable cable tie such as HellermannTyton T-series in weather-resistant PA66.
