HellermannTyton HIS-3 Tubo termorretrátil 6,0/2,0 mm preto 10 m 308-32407

3:1 shrink ratio heat shrink tubing with a 6.0 mm supplied inner diameter that recovers to 2.0 mm, supplied in a 10 m dispenser box.

Overview

The HellermannTyton HIS-3 is a cross-linked polyolefin heat shrink tubing designed for electrical insulation, strain relief, and mechanical protection. Supplied in black, it shrinks at a minimum temperature of +90 °C and operates from -55 °C to +125 °C.

What stands out

• 3:1 shrink ratio allows the tubing to conform to irregular shapes and connectors.
• Self-extinguishing flame retardant material meets UL224 VW-1 and CSA standards.
• High dielectric strength of >20 kV/mm provides reliable electrical insulation.

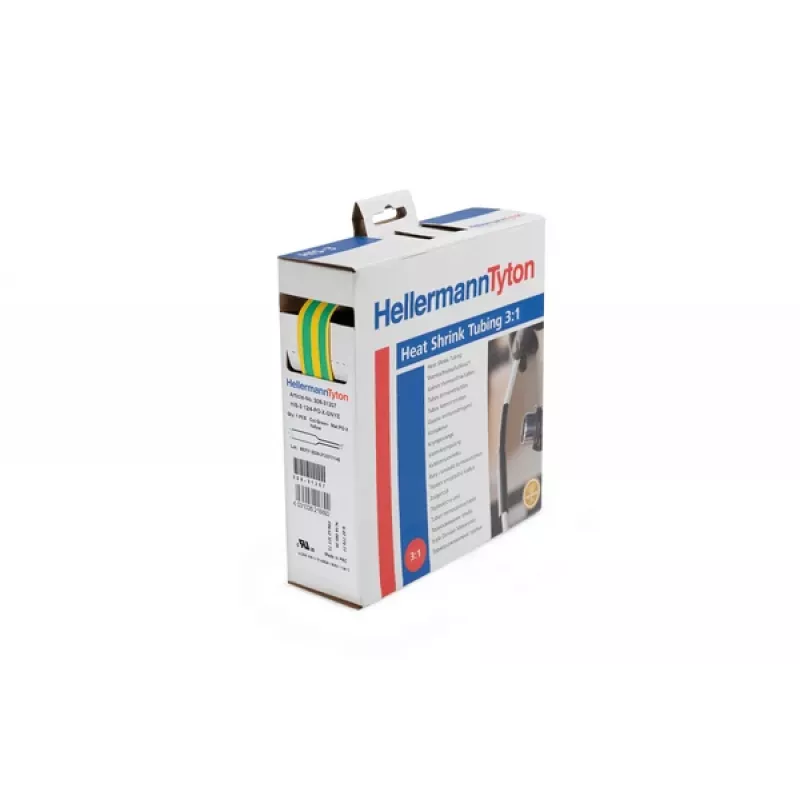

• Supplied in a convenient dispenser box for easy handling and storage.

Technical details

• Material: Cross-linked polyolefin
• Supplied inner diameter: 6.0 mm
• Recovered inner diameter: 2.0 mm
• Recovered wall thickness: 0.55 mm
• Length: 10 m
• Colour: Black
• Shrink ratio: 3:1
• Minimum shrink temperature: +90 °C
• Operating temperature range: -55 °C to +125 °C
• Dielectric strength: >20 kV/mm
• Tensile strength: 15 MPa
• Elongation at break: 200%
• Flame retardant: Self-extinguishing
• Halogen-free: No
• Approvals: UL224 VW-1, CSA, RoHS compliant

Our verdict

A versatile 3:1 heat shrink tubing ideal for demanding electrical insulation tasks, offering high dielectric strength and flame retardancy.
