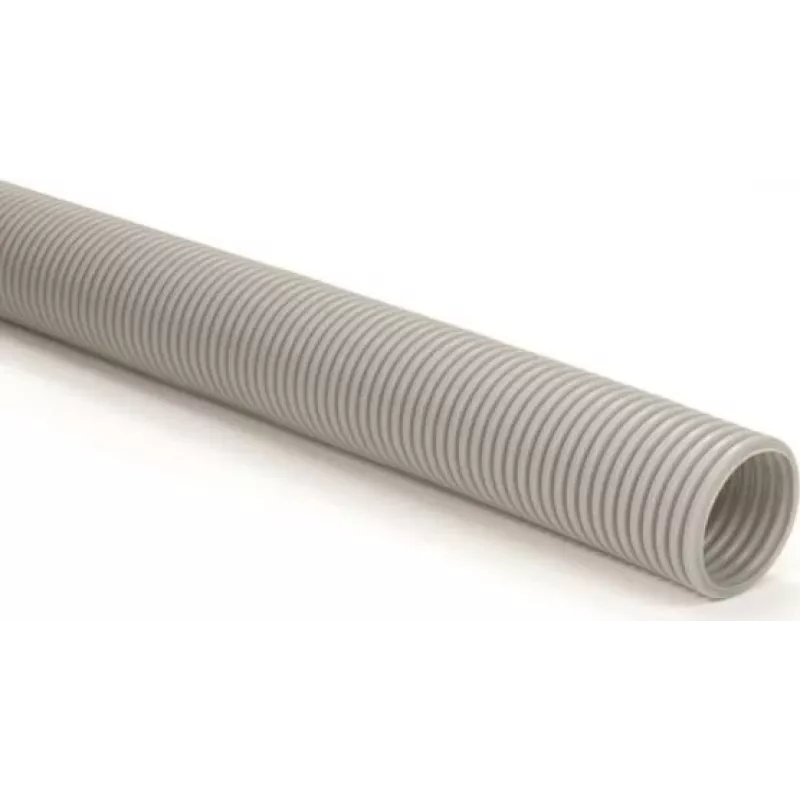

HellermannTyton IWS29-PE-GY Tubo ondulado flexível, PE, cinzento, 29,3 mm DE, 25 m

The HellermannTyton IWS29-PE-GY is a high-quality flexible corrugated conduit designed for reliable cable protection in industrial and commercial applications. Made from durable polyethylene (PE), this conduit offers excellent chemical resistance and UV stability, making it suitable for demanding environments. With an outer diameter of 29.3 mm and a length of 25 meters, it provides ample coverage for wiring harnesses and cable management systems.

Advantages

This conduit delivers superior flexibility for easy installation around tight corners and obstacles. Its halogen-free composition ensures safety in case of fire, while the UL94 HB flammability rating guarantees low flame spread. The grey color blends well with industrial settings, and the high crush resistance (320 N) protects cables from mechanical stress.

Suitable for

• Cable protection in industrial machinery and control panels
• Wiring harnesses in automotive and manufacturing sectors
• Outdoor installations requiring UV resistance
• General cable management in commercial buildings

Key specifications

• Product Type: Flexible Corrugated Conduit
• Material: Polyethylene (PE)
• Colour: Grey
• Outer Diameter: 29.30 mm
• Inner Diameter: 23.5 mm
• Nominal Size: NW23
• Length: 25 m
• Operating Temperature: -20 °C to +90 °C
• Flammability Rating: UL94 HB
• UV Resistance: Good
• Halogen-Free: Yes
• Chemical Resistance: Good against common acids, alkalis, and solvents
• Crush Resistance: 320 N (at 23°C, 50% deformation)
• Impact Resistance: Medium
• Flexibility: High
• Standards Compliance: RoHS
• Wall Thickness (approx): 2.9 mm (at peak)

Recommendations

For optimal performance, ensure the conduit is properly supported and avoid sharp bends that exceed the minimum bending radius. Pair with compatible fittings for a complete cable protection system.
