HellermannTyton TREDUX-MA47-30/8 PO-X BK 6 Tubo termorretrátil, poliolefina reticulada, 30mm para 8mm, preto, 1m, embalagem de 6 unid.

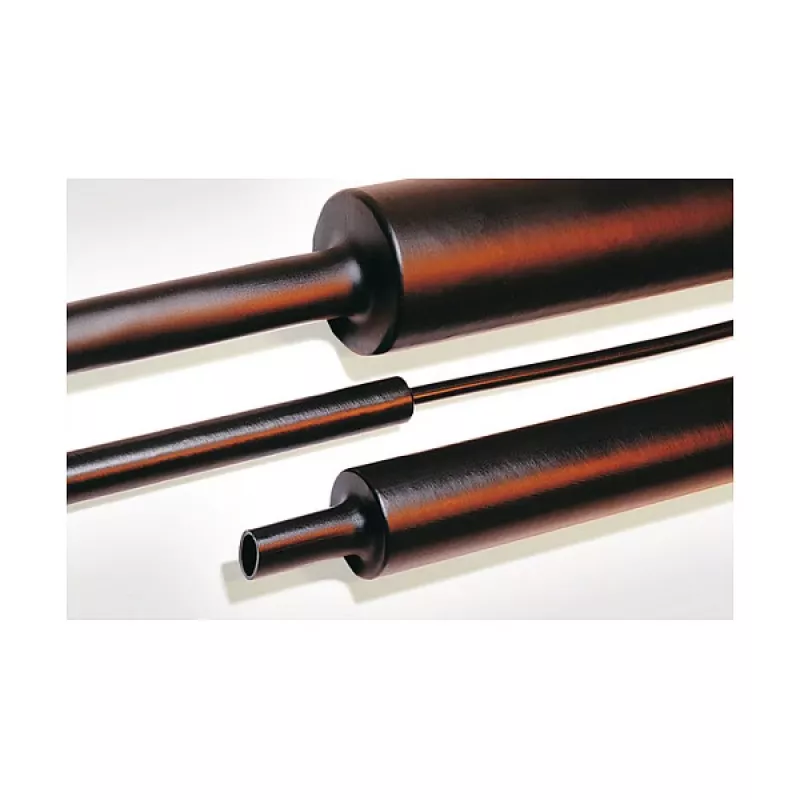

The HellermannTyton TREDUX-MA47-30/8 PO-X BK 6 is a high-quality heat shrink tubing made from cross-linked polyolefin (PO-X). With a 3:1 shrink ratio, it shrinks from 30 mm to 8 mm diameter, providing a tight, secure fit over connectors, terminals, and cables. This black tubing is supplied in 1-meter lengths and comes in a pack of 6 pieces. It is halogen-free, UV resistant, and self-extinguishing (UL224 VW-1), making it ideal for demanding electrical insulation and protection applications.

Advantages

Excellent electrical insulation with dielectric strength >20 kV/mm. High tensile strength >15 MPa ensures durability. Wide operating temperature range from -55°C to +135°C. Halogen-free and UV resistant for long-term reliability. Self-extinguishing flammability rating enhances safety.

Suitable for

• Electrical insulation of wires and cables
• Protection of connectors and terminals
• Bundling and strain relief
• Automotive, industrial, and electronic applications

Key specifications

• Product Type: Heat Shrink Tubing
• Series: TREDUX MA47
• Material: Cross-linked Polyolefin (PO-X)
• Shrink Ratio: 3:1
• Supplied Diameter: 30 mm
• Recovered Diameter: 8 mm
• Length: 1 m
• Color: Black
• Minimum Shrink Temperature: +90 °C
• Operating Temperature Range: -55 °C to +135 °C
• Recovered Wall Thickness: 1.02 mm
• Dielectric Strength: >20 kV/mm
• Tensile Strength: >15 MPa
• Flammability Rating: UL224 VW-1 (Self-extinguishing)
• Halogen-Free: Yes
• UV Resistant: Yes
• Chemical Resistance: Good
• Approvals: UL224 VW-1, CSA

Recommendations

For best results, use a heat gun or hot air blower to shrink the tubing evenly. Ensure the tubing is fully recovered and cooled before handling. Store in a cool, dry place away from direct sunlight.
