HELLERMANNTYTON VariPro-S Inserto de vedação individual, diâmetro de cabo 9-10 mm, M20, TPE isento de halogéneos, preto, 20 unid. 440-00011

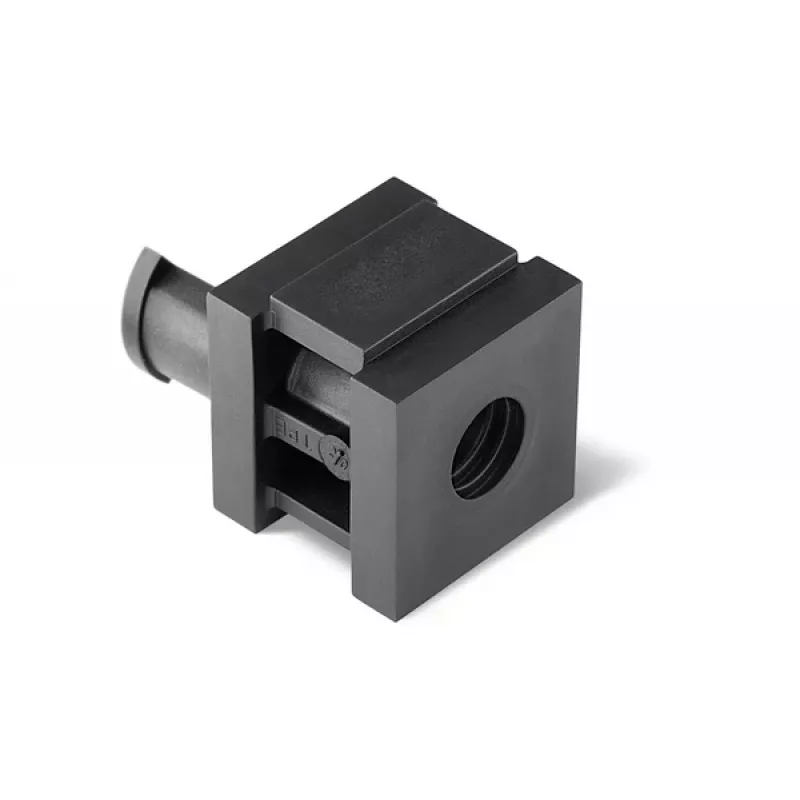

Single grommet for cable entry and sealing in M20 cable glands, providing strain relief and IP68 protection when installed with a compatible gland. Made from halogen-free thermoplastic elastomer in black, it accommodates cables with a diameter of 9 to 10 mm.

Advantages

Halogen-free TPE material ensures low smoke and toxicity in fire conditions. The grommet offers a wide operating temperature range from -40°C to +100°C and is UV resistant, suitable for outdoor use. It meets UL94 V-0 flammability standard.

Suitable for

• Cable entry and sealing in M20 cable glands
• Strain relief for cables 9-10 mm diameter
• Industrial, outdoor, and harsh environments

Key specifications

• Series: VariPro-S
• Type: Single grommet
• Cable diameter range: 9 - 10 mm
• Compatible gland thread: M20
• Material: Thermoplastic Elastomer (TPE)
• Colour: Black
• Halogen-free: Yes
• Quantity per pack: 20 pieces
• IP rating: IP68 (with compatible gland)
• Operating temperature: -40°C to +100°C
• Flammability: UL94 V-0
• UV resistant: Yes

Recommendations

For reliable cable sealing and strain relief in M20 glands, pair this grommet with a compatible HELLERMANNTYTON gland. Ensure cable diameter is within 9-10 mm for optimal performance.
