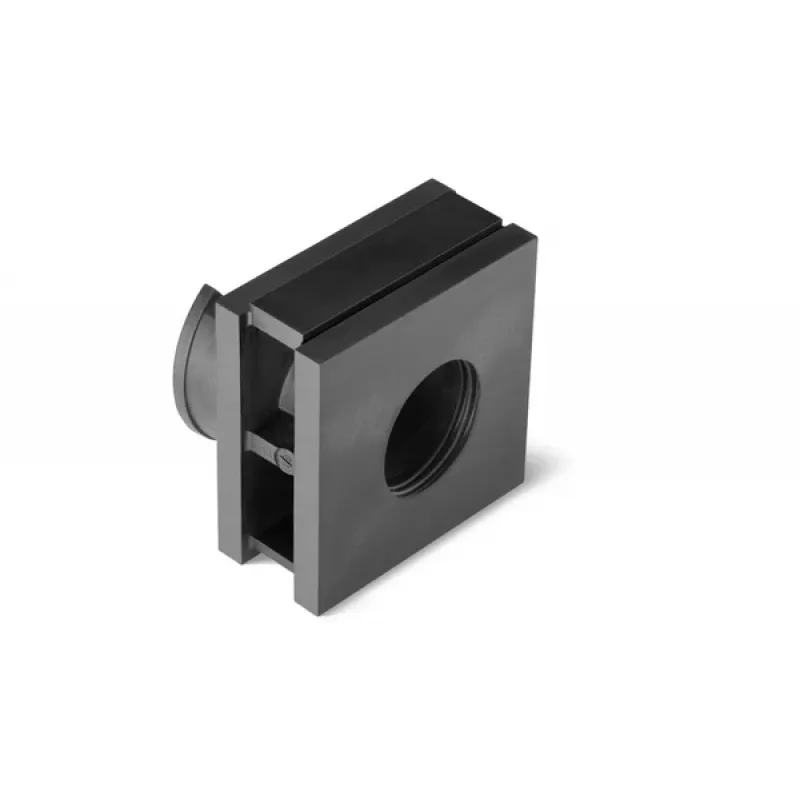

HellermannTyton VP-L 21-22 Passagem de cabo individual sem halogéneos TPE preto 1 unid. 440-00029

The HellermannTyton VP-L 21-22 single grommet offers a clean, halogen-free cable entry solution in black TPE. Its 19–21 mm clamping range and 21.5 mm panel cut-out suit a wide range of round cables, while the IP67 sealing keeps dust and moisture out once installed.

Highlights

• Halogen-free TPE material for enhanced safety in fire-sensitive areas
• IP67 protection when installed, blocking dust and temporary immersion
• Wide operating range from -40 °C to +100 °C
• UV-resistant and chemically robust for long service life
• UL94 V0 flammability rating

In daily use

This grommet simplifies cable routing through panels up to 3 mm thick. It provides strain relief, edge protection, and a reliable seal, making it suitable for control cabinets, enclosures, and machinery where cable integrity matters.

Full specifications

• Product type: Single grommet
• Material: Thermoplastic elastomer (TPE)
• Colour: Black
• Halogen-free: Yes
• Panel cut-out diameter: 21.5 mm
• Cable clamping range: 19–21 mm
• Maximum panel thickness: 3 mm
• Operating temperature: -40 °C to +100 °C
• Flammability rating: UL94 V0
• IP rating (installed): IP67
• UV resistance: Yes
• Chemical resistance: Good
• RoHS compliance: Yes
• Quantity per pack: 1 piece
• Series: VP-L Series
• Application: Cable entry, strain relief, sealing, edge protection
• Outer diameter: 26.5 mm
• Overall height: 11.5 mm

Final note

A dependable sealing grommet for professionals who need halogen-free performance without compromise.
