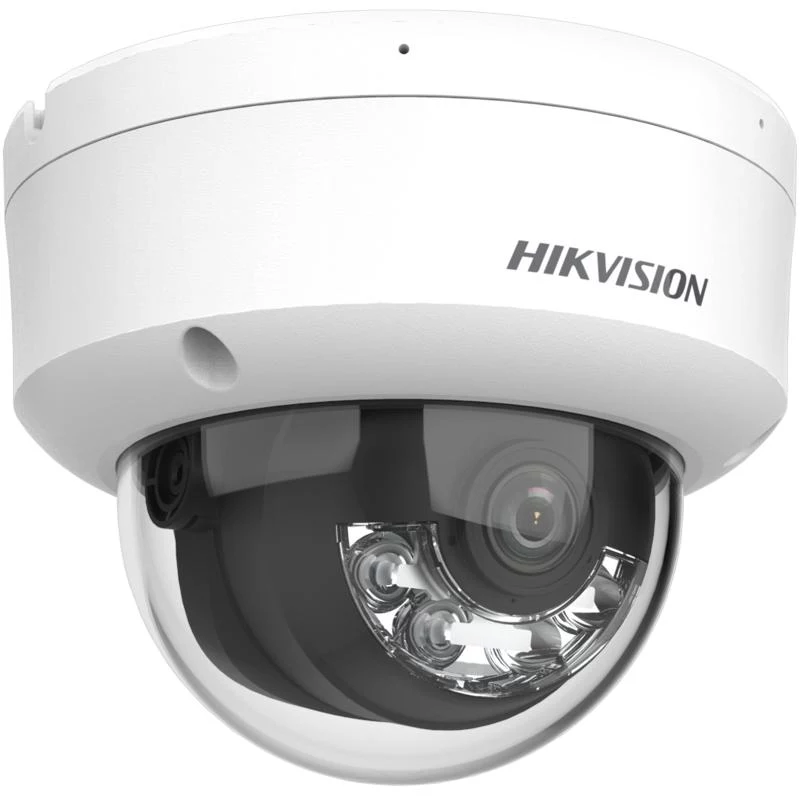

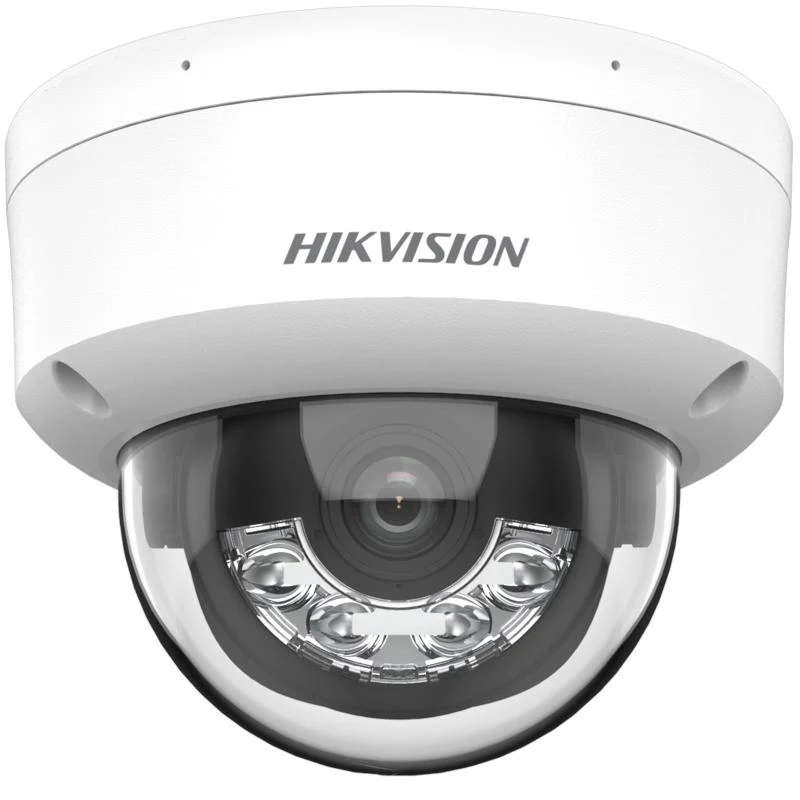

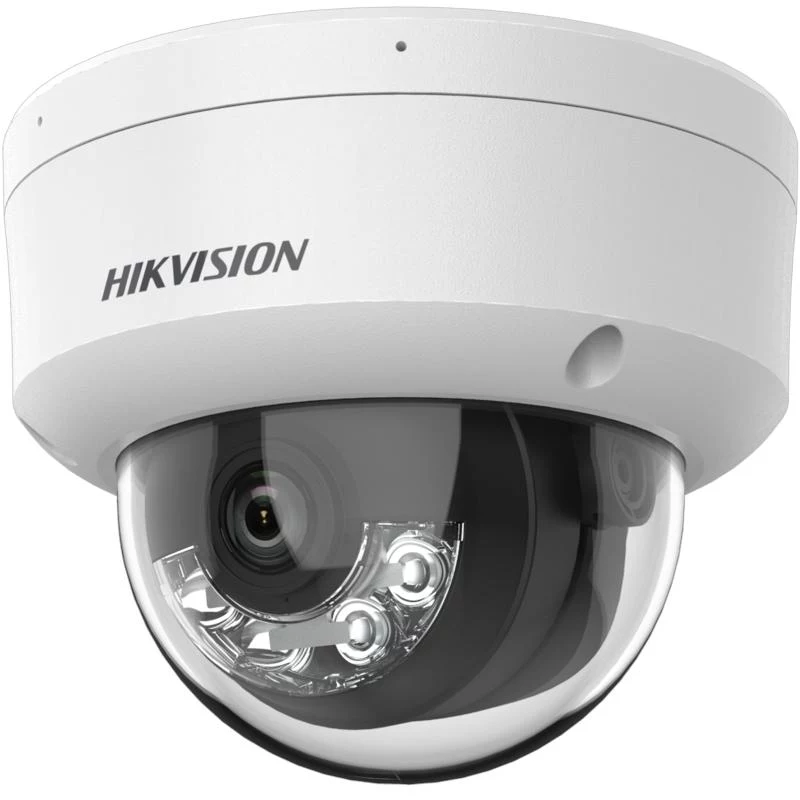

Hikvision DS-2CD3143G2-LISU(2,8mm) câmara IP dome 4MP

The Hikvision DS-2CD3143G2-LISU is a high-performance 4MP IP dome camera featuring AcuSense technology for accurate human and vehicle classification. With a 2.8mm fixed lens, it delivers a wide 103° horizontal field of view, making it ideal for indoor and outdoor surveillance in retail, offices, and residential areas.

Advantages

Equipped with Hikvision's AcuSense technology, this camera significantly reduces false alarms by distinguishing between humans, vehicles, and other objects. The 120 dB True WDR ensures clear images in high-contrast lighting, while the built-in EXIR 2.0 infrared provides up to 30 meters of night vision. Its IP67 and IK10 ratings guarantee durability against dust, water, and vandalism.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Residential properties and apartment complexes
• Warehouses and logistics centers
• Schools and public facilities

Key specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Max Resolution: 2688 × 1520 (4 MP)
• Lens: 2.8 mm fixed focal
• Field of View: Horizontal 103°, Vertical 55°, Diagonal 123°
• IR Range: Up to 30 m (EXIR 2.0)
• Video Compression: H.265+/H.265/H.264+/H.264
• Frame Rate: 25/30 fps
• Audio: Built-in microphone
• Network: 1 RJ45 10M/100M Ethernet port
• Storage: MicroSD/SDHC/SDXC slot, up to 256 GB
• Power: 12 VDC ± 25%, PoE (802.3af)
• Power Consumption: Max. 8 W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -30 °C to 60 °C
• Smart Features: AcuSense (Human & Vehicle Classification)
• WDR: 120 dB True WDR
• Minimum Illumination: Color 0.005 Lux @ F1.6

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted in a location with adequate network coverage and within the IR range for night vision. Regular firmware updates are recommended to maintain security and functionality.
