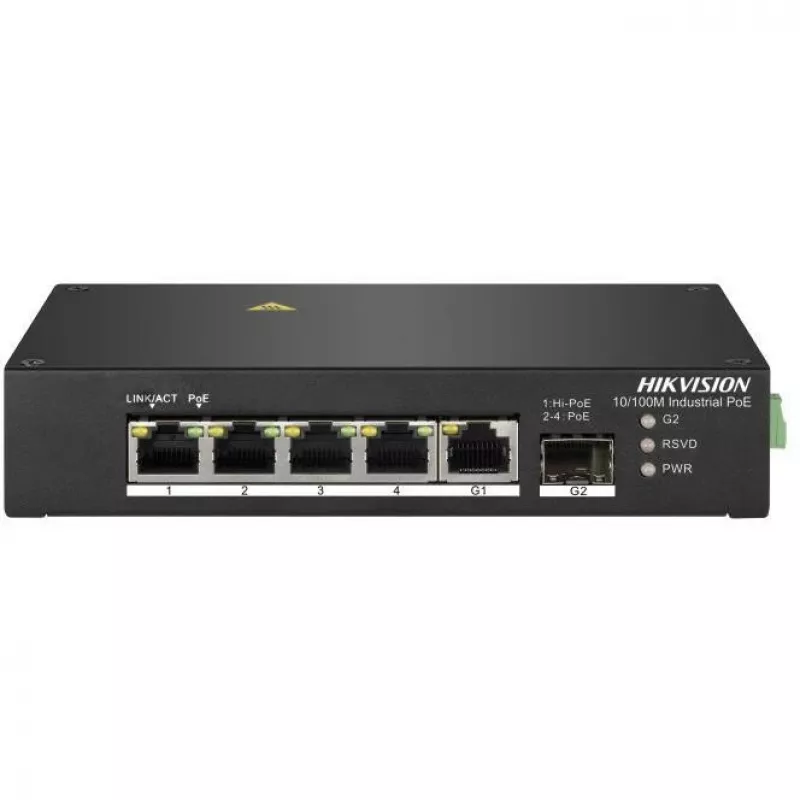

Hikvision DS-3T0306HP switch de rede não gerido 5 portas Fast Ethernet PoE preto

The Hikvision DS-3T0306HP is a reliable unmanaged network switch designed for small to medium-sized networks requiring Power over Ethernet (PoE) connectivity. With 5 Fast Ethernet ports, including 4 PoE ports, this switch delivers both data and power to devices such as IP cameras, access points, and VoIP phones, simplifying installation and reducing cable clutter. Its metal casing ensures durability, while support for PoE+ (IEEE 802.3at) provides up to 30W per port with a total PoE budget of 35W. The switch features Extend Mode for long-distance transmission up to 250 meters and PoE Watchdog for automatic device recovery, making it ideal for surveillance and edge networking applications.

Advantages

Plug-and-play unmanaged design eliminates configuration complexity. PoE+ support powers high-consumption devices directly via Ethernet cable. Extend Mode enables deployment beyond standard 100m distance. PoE Watchdog automatically reboots connected devices if they become unresponsive. Compact metal housing supports desktop or wall mounting for flexible installation.

Suitable for

• IP camera systems (up to 4 cameras with PoE)
• Wireless access point deployment
• VoIP phone networks
• Small office/home office (SOHO) networks
• Edge surveillance installations requiring long cable runs

Key specifications

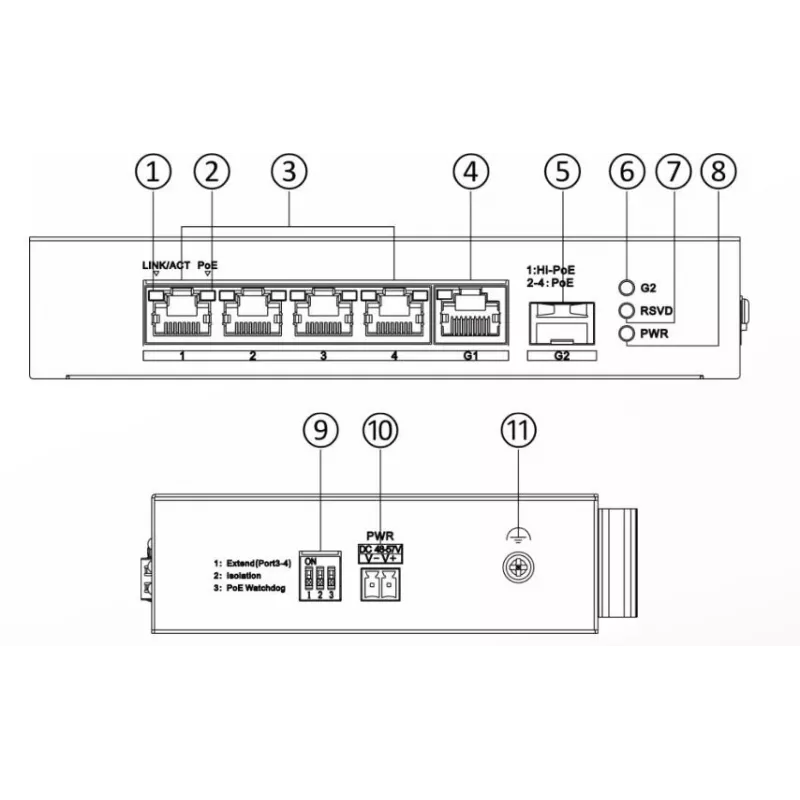

• 5 x 10/100 Mbps Ethernet ports (4 PoE, 1 uplink)
• PoE standards: IEEE 802.3af/at (PoE+)
• Max PoE power per port: 30 W
• Total PoE power budget: 35 W
• Switching capacity: 1 Gbps
• Packet forwarding rate: 0.744 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 1.5 KB
• Forwarding mode: Store-and-forward
• Power supply: External adapter 48 VDC, 1.25 A
• Operating temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Operating humidity: 5% to 95% (non-condensing)

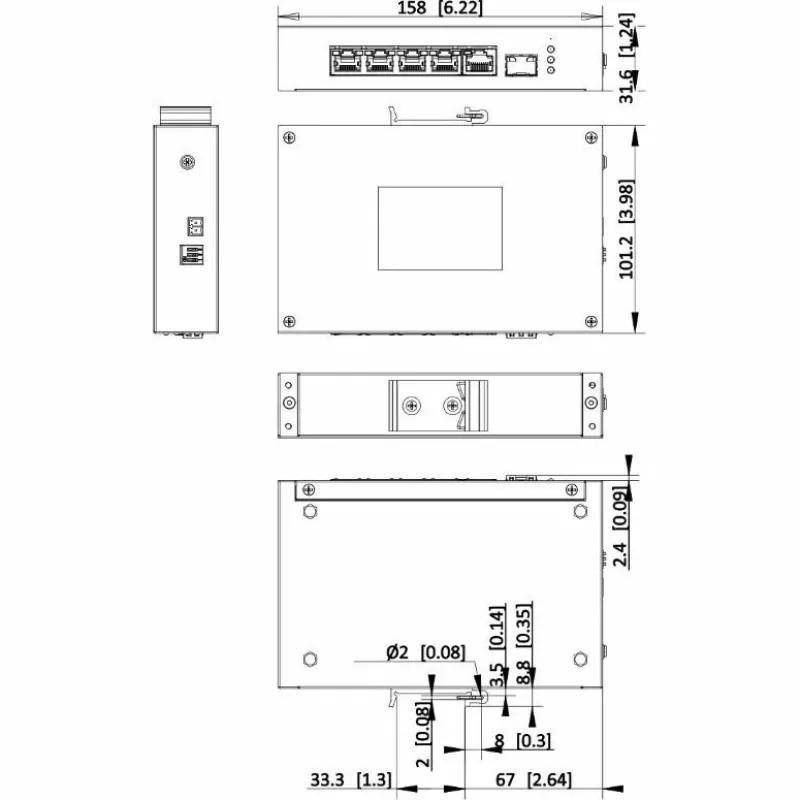

• Mounting: Desktop, wall-mountable
• Casing material: Metal
• Colour: Black

Recommendations

For optimal performance, use Cat5e or higher Ethernet cables. The switch is best suited for networks with up to 4 PoE devices; ensure total power draw does not exceed 35W. Extend Mode is recommended for distances between 100m and 250m, but may reduce data speed to 10 Mbps.
