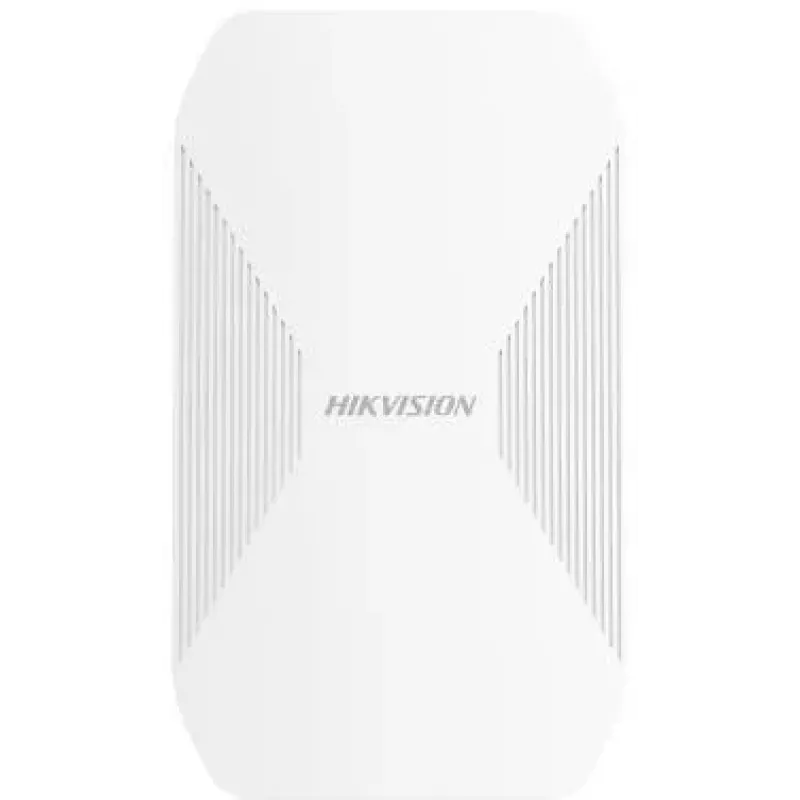

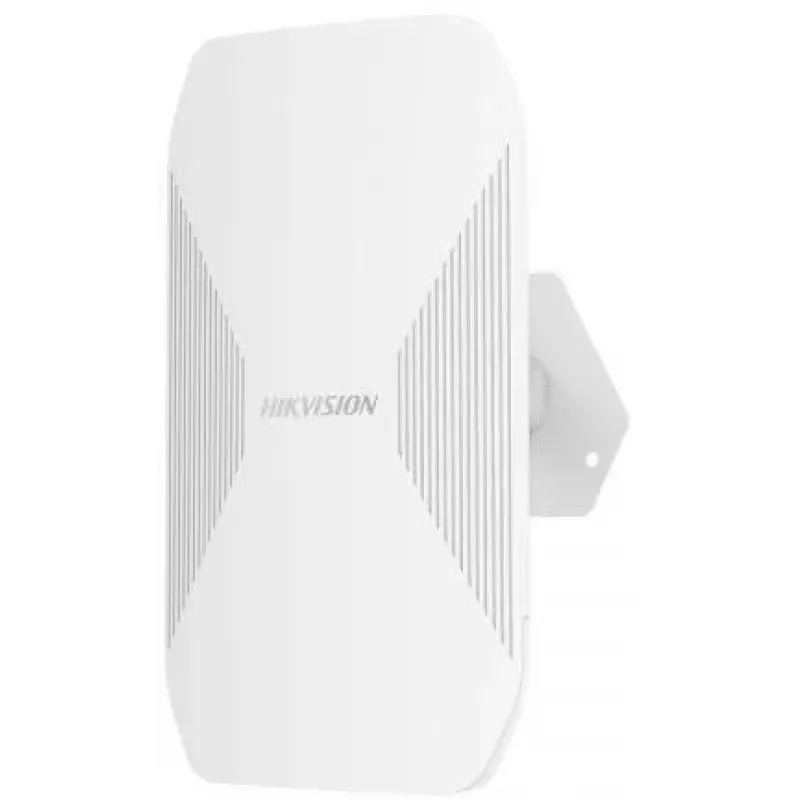

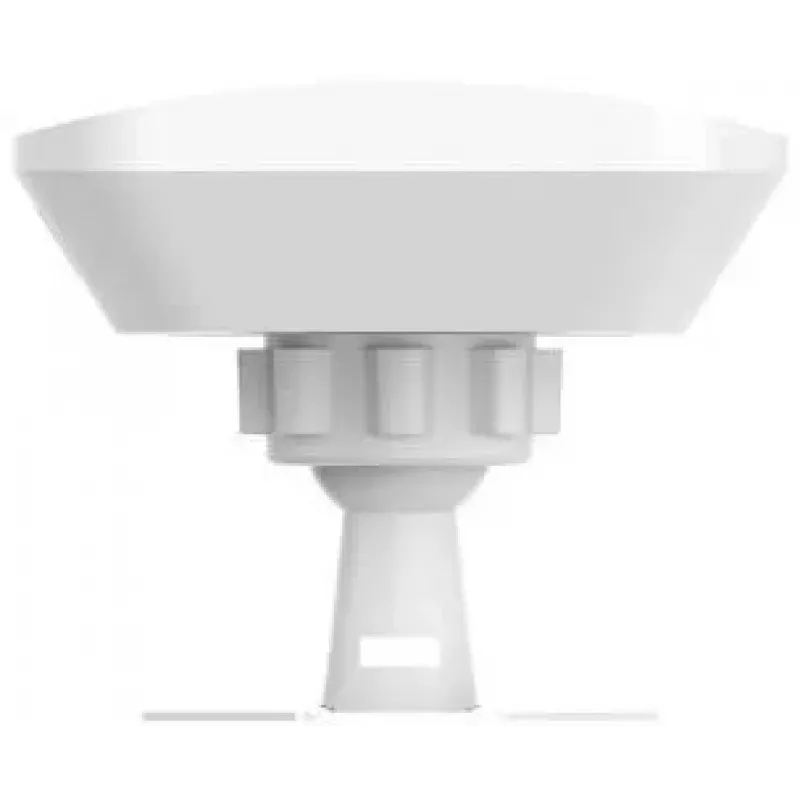

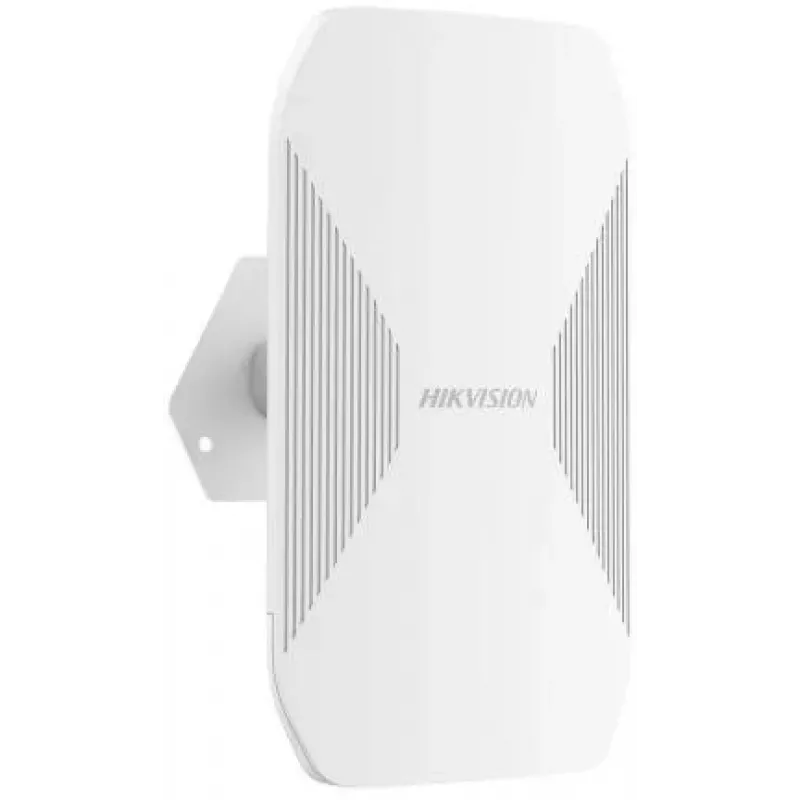

Hikvision DS-3WF5000S-SI-5ACG/2P ponte wireless 5 GHz 867 Mbps

The Hikvision DS-3WF5000S-SI-5ACG/2P is a high-performance 5 GHz wireless bridge kit designed for long-range point-to-point connections. With a maximum throughput of 867 Mbps and a transmission distance of up to 5 km, this kit is ideal for extending network coverage across campuses, warehouses, or remote sites. The kit includes two units pre-configured for easy deployment, each featuring a dual-polarized directional antenna with 16 dBi gain and 2x2 MIMO technology.

Advantages

Reliable and weatherproof (IP65) design ensures operation in harsh outdoor environments. Passive PoE support simplifies installation by carrying both data and power over a single Ethernet cable. The included pole mount kit and 24V PoE adapters make setup straightforward.

Suitable for

• Point-to-point bridging between buildings
• Extending Wi-Fi coverage to remote areas
• Surveillance network backhaul
• Temporary event networks

Key specifications

• Wireless Standard: IEEE 802.11a/n/ac
• Frequency Band: 5 GHz
• Max Throughput: 867 Mbps
• Antenna Gain: 16 dBi
• Ethernet Ports: 2x Gigabit (10/100/1000)
• PoE: 24V Passive PoE
• Range: Up to 5 km
• Enclosure: IP65
• Operating Temperature: -30°C to 65°C

Recommendations

For optimal performance, ensure clear line-of-sight between the two units. Use shielded outdoor-rated Ethernet cables for best results. The kit supports multiple operating modes including AP, Station, Repeater, WISP, and Router.
