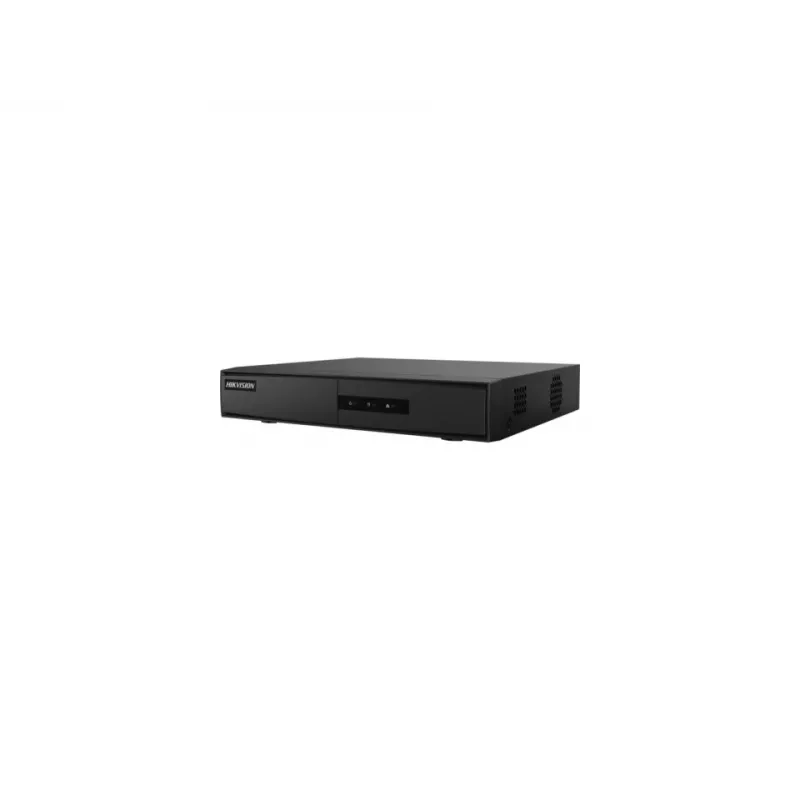

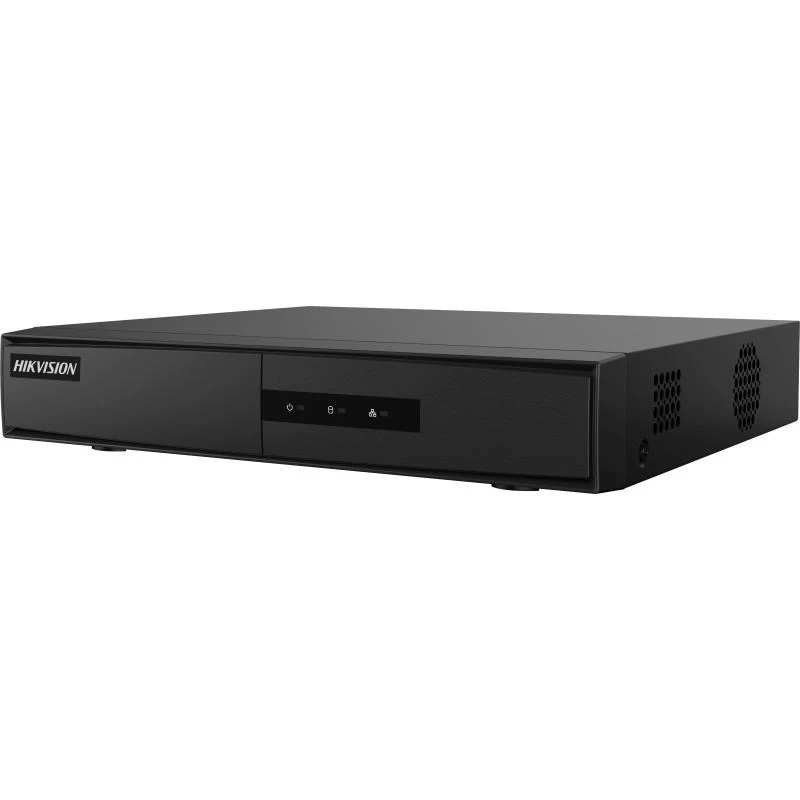

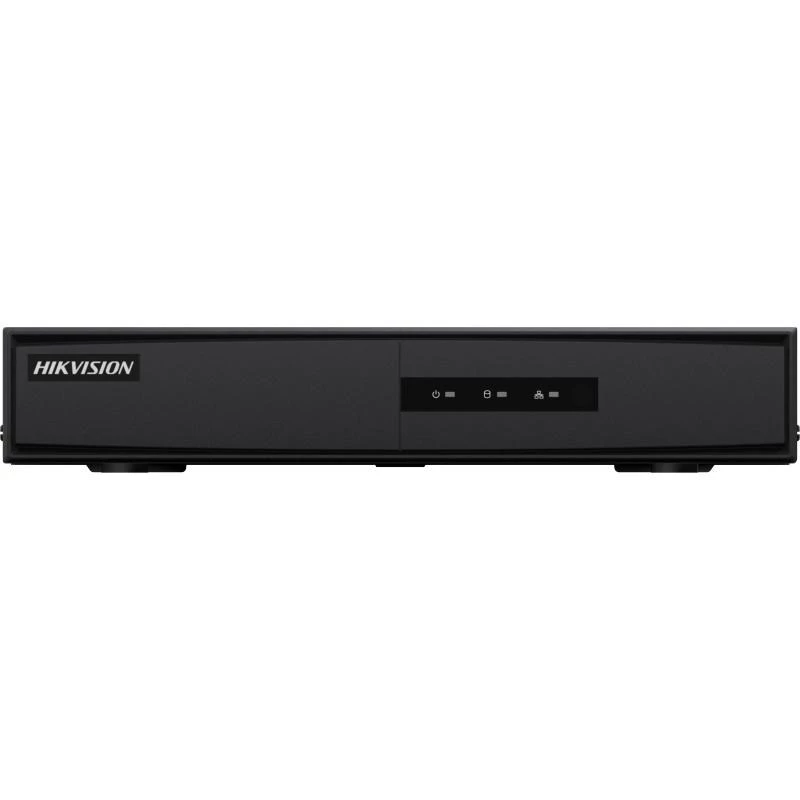

Hikvision DS-7104NI-Q1/M(D) NVR 4 canais 1U, H.265+, preto

The Hikvision DS-7104NI-Q1/M(D) is a 4-channel embedded network video recorder from the Value Series, designed for small to medium-sized surveillance systems. It supports H.265+ compression for efficient bandwidth and storage usage, and provides reliable recording and playback for up to 4 IP cameras at 1080p resolution.

Advantages

This NVR offers high-quality video recording with H.265+ technology, reducing storage requirements by up to 50% compared to H.264. Its compact 1U chassis fits easily into any rack or desktop setup. With a maximum incoming bandwidth of 40 Mbps and outgoing bandwidth of 60 Mbps, it ensures smooth video streaming and remote access. The device supports one SATA HDD up to 6 TB, providing ample storage for extended recording.

Suitable for

• Small businesses (retail stores, offices)
• Residential surveillance systems
• Remote monitoring applications
• Upgrading analog DVR systems to IP-based NVR

Key specifications

• Video Input: 4-channel IP camera input
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 60 Mbps
• Decoding: 4-ch@1080p (25 fps)
• HDMI Output: 1-ch, up to 1920×1080p
• VGA Output: 1-ch, up to 1920×1080p
• Synchronous Playback: 4-ch
• SATA Interface: 1 SATA, up to 6 TB per HDD
• Network Interface: 1× RJ-45 10/100 Mbps
• USB Interface: 2× USB 2.0
• Audio Output: 1-ch RCA (Linear, 1 KΩ)
• Power Supply: 12 VDC
• Power Consumption: ≤ 10 W (without HDD)
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Chassis: 1U Mini
• Product Colour: Black

Recommendations

For optimal performance, pair this NVR with Hikvision IP cameras and use a high-quality SATA HDD rated for surveillance (e.g., WD Purple or Seagate SkyHawk). Ensure the network switch supports sufficient bandwidth for all connected cameras.
