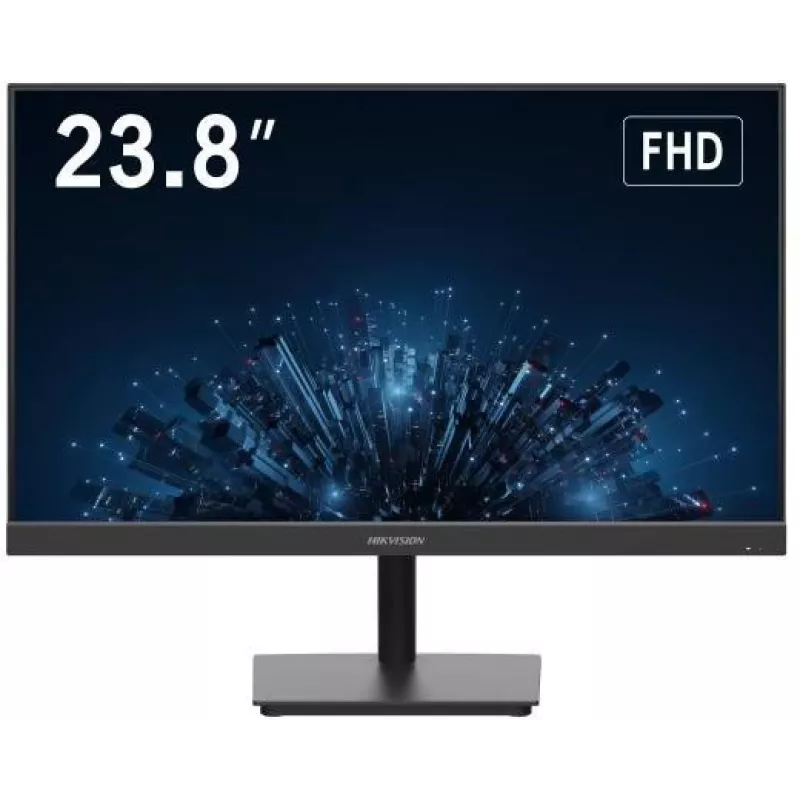

Hikvision DS-D5224F2-1V1S/B monitor VA Full HD de 23,8 polegadas com HDMI, VGA, CVBS e altifalantes

In a dimly lit security operations center, operators rely on crisp, accurate images to spot details. The Hikvision DS-D5224F2-1V1S/B is a 23.8-inch Full HD monitor built for continuous surveillance use, offering versatile input options and comfortable viewing for long shifts. Its VA panel ensures consistent colour and contrast from almost any angle, making it a practical choice for multi-person monitoring stations.

Key specifications

• 23.8-inch VA panel with Full HD 1920x1080 resolution
• 250 cd/m² brightness and 3000:1 contrast ratio
• 178°/178° wide viewing angles
• 6.5ms response time (GTG)
• Inputs: 1x HDMI, 1x VGA, 1x CVBS (BNC), 1x RCA audio in
• Built-in 2 x 2W speakers
• 16.7 million colours, 72% NTSC colour gamut
• 100x100mm VESA mount compatible
• 60Hz refresh rate
• ≤25W typical power consumption

Why choose it

This monitor is designed for professional environments where reliability and clarity matter. The high contrast ratio of 3000:1 delivers deep blacks, while the 250 cd/m² brightness remains readable in well-lit rooms. The built-in 3D comb filter and 3D noise reduction enhance performance with composite video sources, ensuring sharp, stable images from analogue CCTV cameras. With HDMI and VGA, you can connect modern digital devices as well.

Ideal use cases

• Security control rooms and CCTV monitoring
• Financial trading floors and command centres
• Industrial HMI and process control displays
• Desktop productivity and business use

Good to know

The Hikvision DS-D5224F2-1V1S/B supports a wide range of video formats through its CVBS, VGA and HDMI interfaces. The CVBS input is particularly useful for legacy analogue equipment, while the HDMI input handles full HD digital signals without loss. The monitor also includes an audio line-in and two 2W speakers, so basic audio monitoring is possible without external speakers. A standard 100x100mm VESA mount allows flexible installation on arms, brackets, or walls. With power consumption of just 25W, it is also energy-efficient for always-on operations.
