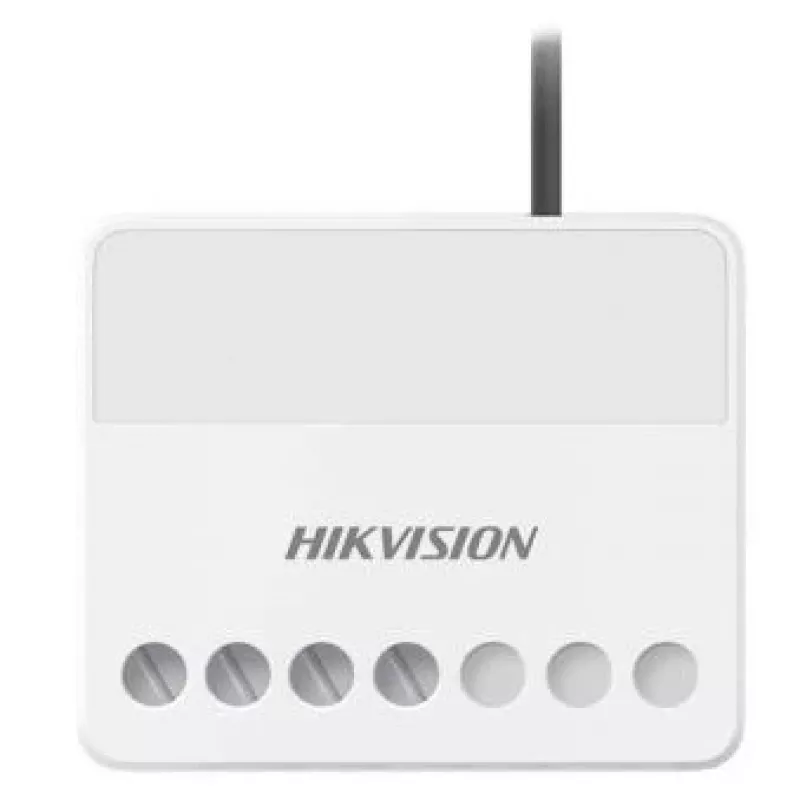

Hikvision DS-PM1-O1H-WE Interruptor sem fios Tri-X 868 MHz 1600 m Branco Plástico 100-240 VAC

The Hikvision DS-PM1-O1H-WE is a wireless switch designed for integration with Hikvision AX PRO series alarm systems. It utilizes Tri-X wireless technology for reliable two-way communication at 868 MHz, offering an open-air range of up to 1600 meters. This device features a relay output with a capacity of 30 VDC/1 A or 230 VAC/1 A, making it suitable for controlling various external devices. Its robust IP65-rated plastic housing ensures durability in outdoor or harsh indoor environments.

Advantages

• Long-range wireless connectivity (1600 m open area) ensures reliable communication even in large properties.
• Tri-X wireless technology provides two-way communication for enhanced system feedback.
• IP65 rating offers protection against dust and water jets, suitable for outdoor installation.
• Front and rear tamper protection increases security against unauthorized access.
• Easy wall-mounting design simplifies installation.

Suitable for

• Integration with Hikvision AX PRO alarm systems
• Wireless control of external devices such as lights, gates, or sirens
• Outdoor or indoor security applications requiring reliable long-range wireless communication

Key specifications

• Wireless Technology: Tri-X Wireless (Two-way communication)
• Wireless Frequency: 868 MHz
• Wireless Range: 1600 m (open area)
• Output Type: Relay Output
• Number of Relay Outputs: 1
• Relay Output Capacity: 30 VDC / 1 A; 230 VAC / 1 A (Max)
• Input Voltage: 100 to 240 VAC
• Input Frequency: 50 / 60 Hz
• Power Consumption: 1.2 W
• LED Indicator: Status LED (Power, Signal, Relay Status)
• Tamper Protection: Front and Rear Tamper
• Operating Temperature: -20 °C to 55 °C (-4 °F to 131 °F)
• Operating Humidity: 10% to 90% (non-condensing)
• IP Rating: IP65
• Material: Plastic
• Color: White
• Installation: Wall mounting
• Compatibility: Hikvision AX PRO series alarm systems

Recommendations

For optimal performance, ensure the wireless switch is within the specified range of the alarm panel and avoid obstructions. Use with Hikvision AX PRO series control panels for seamless integration.
