Moldura Hikvision DS-KD-ACW1/S

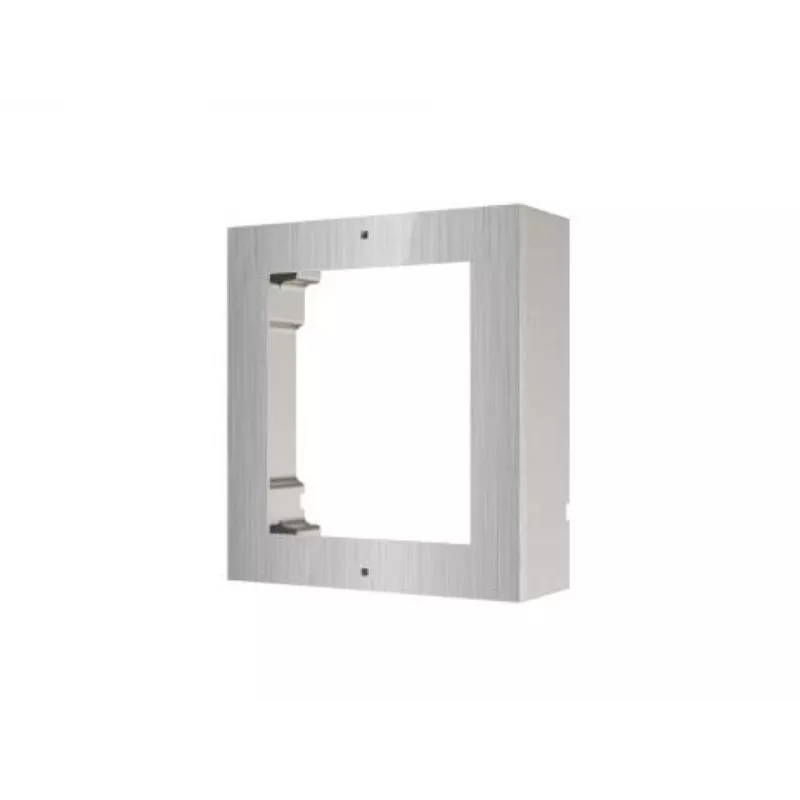

The Hikvision DS-KD-ACW1/S is a stainless steel surface-mount frame for Hikvision intercom modules. The package contains a 1-module frame, a 1-module front panel and the required mounting accessories. Its dimensions are approximately 107 mm wide, 32.7 mm deep and 117 mm high, providing a compact, durable housing that integrates with Hikvision door-station equipment.

Advantages

The stainless steel construction offers corrosion resistance and mechanical strength for reliable long-term use. Designed for surface mounting, the frame simplifies installation on walls or panels and is fully compatible with Hikvision 1-module intercom components. The included front panel and accessories reduce the need to source additional parts.

Suitable for

• Surface mounting of a single Hikvision intercom module
• Replacement or upgrade of existing 1-module frames in access control systems
• Indoor or sheltered outdoor door-station installations where a compact frame is required

Key specifications

• Brand: Hikvision
• Model/MPN: DS-KD-ACW1/S
• Material: Stainless steel
• Compatibility: Hikvision 1-module intercom units
• Dimensions: 107 mm (W) × 32.7 mm (D) × 117 mm (H)
• Package contents: 1-module frame, 1-module front panel, mounting accessories

How to use

Mark and prepare the mounting location on a flat surface, ensuring compatibility with the frame dimensions. Fix the frame to the wall or panel using the supplied mounting accessories, then install the Hikvision 1-module intercom unit into the frame and attach the front panel. Verify that the module is securely seated and that all electrical connections comply with the intercom installation guidelines.

Recommendations

Install the frame in a sheltered location or use appropriate sealing if exposed to direct weather. Follow Hikvision mounting and electrical guidelines for safe and reliable operation.
