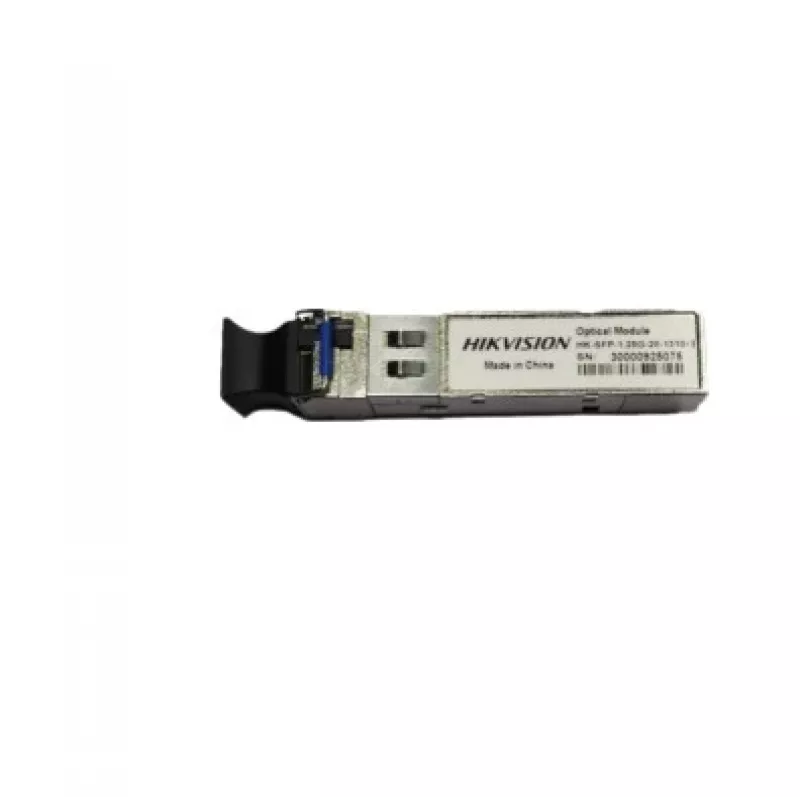

Hikvision HK-SFP-1.25G-20-1550 Módulo SFP 1,25 Gbit/s 20 km Monomodo 1550 nm

The Hikvision HK-SFP-1.25G-20-1550 is a high-performance SFP (Small Form-Factor Pluggable) transceiver module designed for Gigabit Ethernet and Fiber Channel applications. It operates at a data rate of 1.25 Gbps and supports transmission distances up to 20 km over single-mode fiber. The module uses a 1550 nm DFB laser transmitter and a 1310 nm PIN photodiode receiver, enabling BiDi (Bidirectional) communication over a single strand of fiber with an LC Simplex connector. It is hot-pluggable, MSA compliant, and features DDM/DOM support for real-time monitoring of optical parameters. This module is ideal for extending network reach in metropolitan area networks (MANs), enterprise campus networks, and service provider access networks.

Advantages

Reliable long-distance connectivity up to 20 km over single-mode fiber, low power consumption (<1W), and hot-pluggable design for easy installation and maintenance. DDM/DOM support allows proactive network management. MSA compliance ensures interoperability with a wide range of networking equipment.

Suitable for

• Gigabit Ethernet links in enterprise and data center networks
• Fiber Channel storage area networks (SANs)
• Metropolitan area networks (MANs) and access networks
• Hikvision switches and compatible MSA devices

Key specifications

• Module Type: SFP
• Data Rate: 1.25 Gbps
• Transmission Wavelength (TX): 1550 nm
• Reception Wavelength (RX): 1310 nm
• Max Transmission Distance: 20 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Simplex
• Cable Type: Single-strand fiber (BiDi)
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C
• Power Supply: 3.3V
• Power Consumption: <1W
• Compliance: MSA Compliant, RoHS Compliant
• Laser Type: DFB
• Receiver Type: PIN Photodiode
• Hot-Pluggable: Yes

Recommendations

For optimal performance, pair this module with Hikvision switches or any MSA-compliant SFP port. Ensure the fiber patch cable is single-mode with LC connectors. Avoid bending fiber cables beyond their minimum bend radius to maintain signal integrity.
