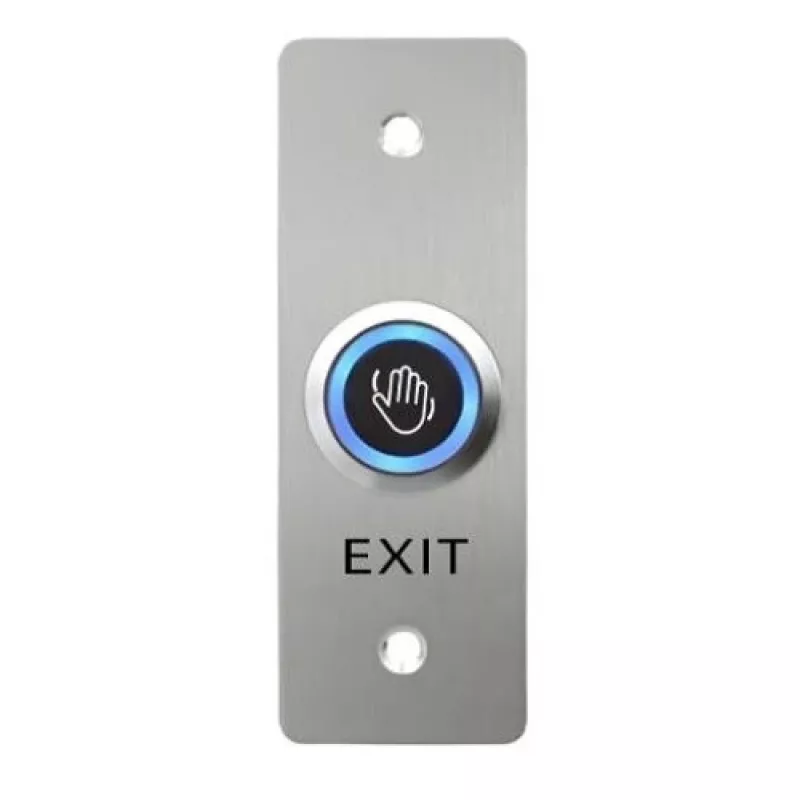

HISMART TV993895 Botão de Saída Sem Contacto, Sensor de Proximidade Infravermelho, Montagem Embutida, Aço Inoxidável, DC 12V, IP54

This touchless exit button eliminates the need to physically press a switch, reducing the spread of germs and providing convenient, hygienic door operation in commercial and residential access control systems. Designed for flush mounting, it combines a modern stainless steel faceplate with reliable infrared sensing technology.

Who is it for

Ideal for offices, clinics, hospitals, hotels, and any environment where hygiene and hands-free access are important. Also suitable for internal doors, gates, and automatic doors requiring a touchless request-to-exit signal.

Main features

• Infrared proximity sensor – simply wave your hand near the button to activate
• Flush-mounted (recessed) design – neat, unobtrusive installation
• NO/NC/COM relay output – compatible with most access controllers and door locks
• Dual-colour LED indicator: blue for standby, green for activation
• Weather-resistant IP54-rated construction
• Stainless steel faceplate, ABS housing
• Durability: rated for 500,000 cycles

Specifications

• Model: TV993895
• Supply voltage: DC 12V
• Max load: 3A @ 30V DC
• Detection range: 3–10 cm
• Response time: < 0.1 s
• Standby current: < 20 mA
• Active current: < 50 mA
• Operating temperature: -20°C to +55°C
• Operating humidity: 0–95% RH (non-condensing)
• Protection rating: IP54
• Wiring: 5-wire connection
• Faceplate dimensions: 86 × 86 mm
• Cutout dimensions: 70 × 48 × 35 mm

Tips

Ensure the power supply provides stable DC 12V and that the relay output is correctly wired to your access control system. Test the detection range during installation to adjust the sensor for optimal performance.
