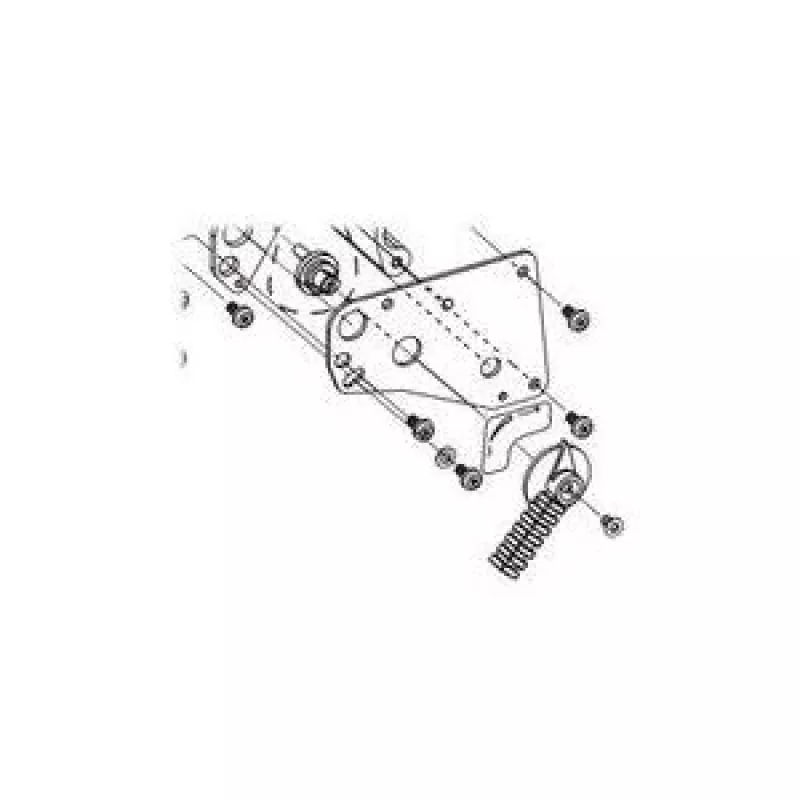

Intermec veio de manivela para impressora 501/601XP, modelo 1-040248-02

Replacement crank shaft designed for Intermec 501 and 601XP label printers. This OEM-style part restores the mechanical motion and alignment within the feed/drive assembly, helping to re-establish consistent media transport and accurate label feeding. The part is intended for use during routine maintenance or repair to extend the working life of compatible printers and reduce downtime in label printing operations.

Advantages

The crank shaft provides precise rotational motion essential for media transport, improving feeding accuracy and reducing print errors caused by misalignment. Manufactured to fit the feed/drive assembly of compatible Intermec printers, it supports reliable mechanical performance and straightforward replacement. Using a correctly sized crank shaft can reduce wear on adjacent components and help maintain consistent label positioning over time.

Suitable for

• Maintenance and repair of Intermec 501 series label printers
• Maintenance and repair of Intermec 601XP label printers
• Workshops and service centers performing mechanical replacements
• Facilities seeking to restore accurate media feed and reduce printer downtime

Key specifications

• Function: mechanical crank shaft for feed/drive assembly
• Compatibility: designed for use with Intermec 501 and 601XP printer models
• Role: restores rotational motion and alignment of media transport mechanism
• Material characteristics: durable engineering-grade metal suitable for mechanical load (OEM-style)
• Fit: replacement part sized to match original feed/drive mounting and tolerances

How to use

Power off the printer and disconnect it from the power source before beginning work. Open the printer access panels to expose the feed/drive assembly, then remove any media and consumables. Carefully disassemble the required components to access the existing crank shaft, noting orientation and mounting hardware. Replace the old shaft with the new crank shaft, ensuring correct alignment and secure fastening according to the printer service procedures. Reassemble the drive components, reload media, and perform a test feed and alignment check to confirm proper operation.

Recommendations

Use original replacement parts or equivalent-quality components and follow manufacturer service instructions to ensure safe installation. If you are not experienced with printer repairs, consider professional service to avoid damage to the drive assembly or misalignment that could affect print quality.
