Automatismo para portão de correr Hörmann Lineamatic 868 MHz BiSecure para portões até 300 kg

The Hörmann Lineamatic 868 MHz BiSecure is a high-quality sliding gate operator designed for residential and light commercial use. With a maximum gate weight of 300 kg and a width of up to 8 m, this robust DC gear motor drive ensures reliable and quiet operation. The integrated BiSecure radio system provides encrypted communication for enhanced security.

Advantages

Reliable 24 V DC motor with soft start/soft stop for gentle gate movement. Integrated control unit simplifies installation. BiSecure radio technology offers rolling code security. Suitable for sliding gates up to 300 kg and 8 m width.

Suitable for

• Residential sliding gates
• Light commercial sliding gates
• Gates with rack and pinion drive

Key specifications

• Gate Type: Sliding Gate
• Max. Gate Weight: 300 kg
• Max. Gate Width: 8000 mm
• Drive System: Rack and Pinion
• Motor Type: DC Gear Motor
• Mains Voltage: 230 V AC, 50 Hz
• Operating Voltage: 24 V DC
• Radio System: Hörmann BiSecur
• Radio Frequency: 868.3 MHz
• Opening Speed: Approx. 22 cm/s
• Duty Cycle: S3 25%
• Max. Cycles per Day: 25
• Protection Class: IP44
• Operating Temperature Range: -20°C to +60°C
• Soft Start/Soft Stop: Yes
• Automatic Obstacle Detection: Yes
• Integrated Control Unit: Yes

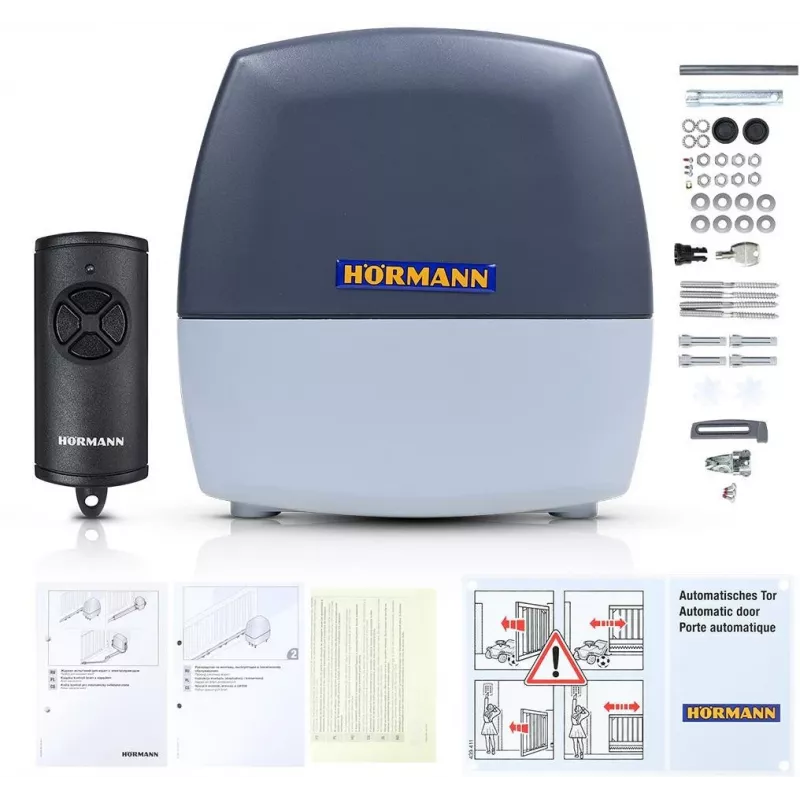

• Included Hand Transmitters: 1x HS 5 BS (5-button BiSecur)
• Housing Material: Die-cast zinc and weather-resistant plastic
• Safety Features: Connection for self-monitoring closing edge safety device

Recommendations

For optimal performance, ensure the gate is properly balanced and the rack is correctly aligned. Professional installation is recommended.
