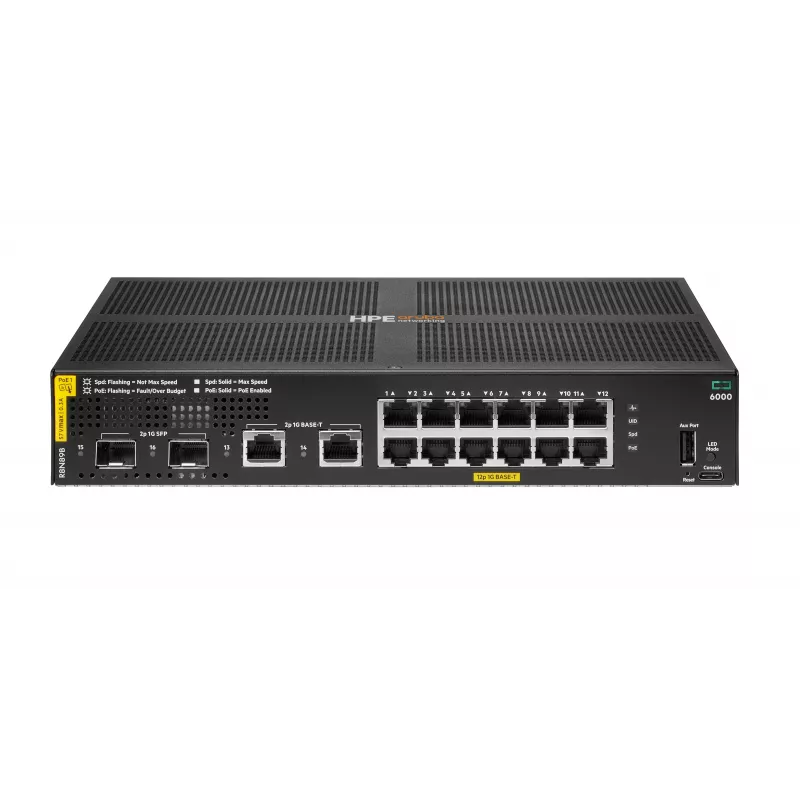

HPE ANW 6000 12G CL4 2F 139W Switch EU

Network bottlenecks and insufficient power delivery can cripple a growing business. The HPE ANW 6000 12G CL4 2F 139W Switch EU is a managed Ethernet switch engineered to deliver reliable connectivity and Power over Ethernet Plus (PoE+) for modern workgroups and branch offices. With 12 Gigabit Ethernet ports and 2 SFP uplinks, it provides the speed and flexibility needed to connect IP phones, wireless access points, surveillance cameras, and other powered devices without extra power supplies.

Who is it for

This switch is ideal for small to medium-sized businesses, retail environments, and remote branch offices that require a compact, rack-mountable solution with advanced Layer 2 and static Layer 3 features. IT administrators who need to manage network traffic efficiently, enforce security policies, and power multiple PoE devices from a single unit will find it particularly valuable.

Main features

• 12 x 10/100/1000BASE-T Gigabit Ethernet ports with PoE+ (Class 4) support, delivering up to 30W per port and a total PoE budget of 139W.
• 2 x 1G SFP uplink ports for fiber connectivity, enabling flexible network expansion and long-distance links.
• Layer 2 switching with static Layer 3 routing, supporting up to 256 VLANs for traffic segmentation and improved security.
• Comprehensive security features including ACLs, DHCP snooping, port security, and RADIUS/TACACS+ authentication.
• Management via SNMP, CLI, Web GUI, and Aruba Central for simplified deployment and monitoring.
• Jumbo frame support up to 9198 bytes, enhancing performance for large data transfers.
• Rack-mountable 1U form factor with internal AC power supply and dual fans for reliable operation.

Specifications

• Switching capacity: 28 Gbps
• Throughput: 20.8 Mpps
• MAC address table size: 8192 entries
• Operating temperature: 0°C to 45°C (32°F to 113°F)
• Number of fans: 2
• Power source: Internal AC
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• LED indicators: Yes

Tips

To maximize the PoE budget, connect only essential powered devices and monitor power consumption via the management interface. Use the SFP uplinks to connect to a core switch or server for high-bandwidth applications. Ensure proper ventilation in the rack to maintain optimal operating temperatures, especially when all PoE ports are active.
