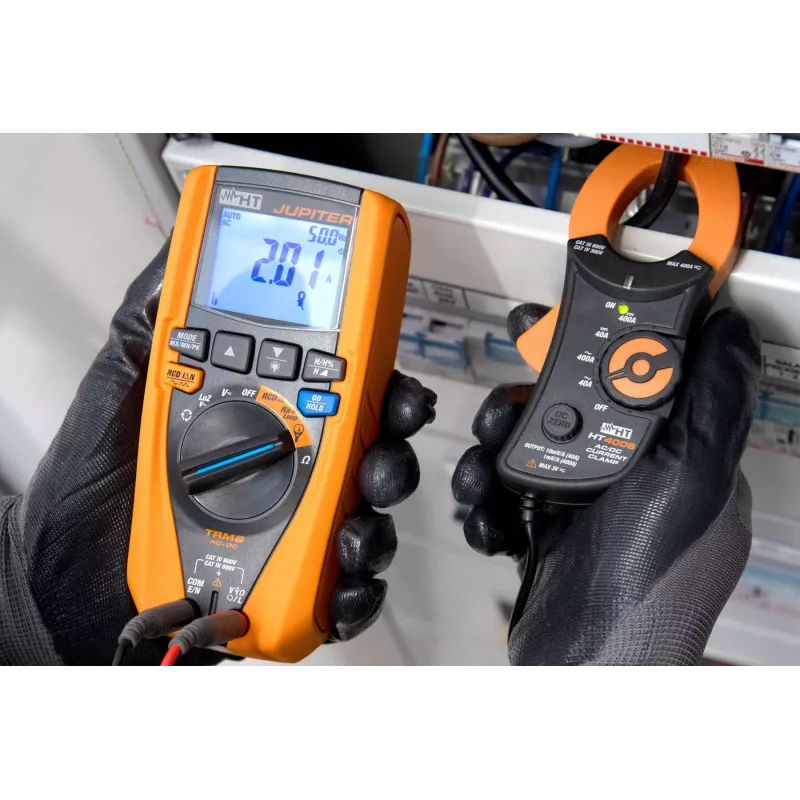

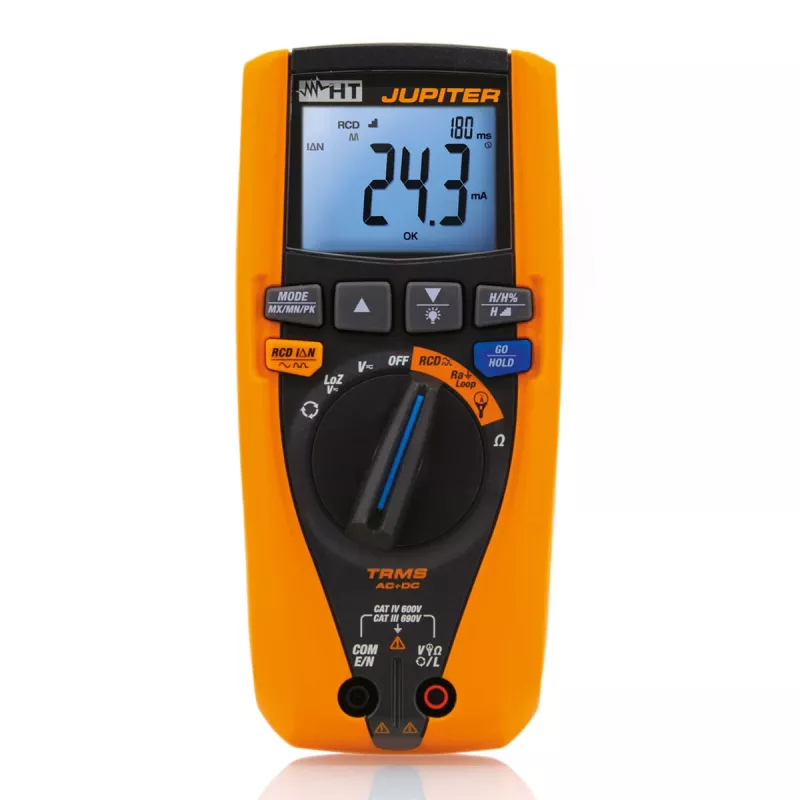

HT Instruments JUPITER multímetro digital e testador de diferencial, calibrado ISO, CAT IV 600V / CAT III 690V, 6000 contagens, Bluetooth 1010680

Electrical installations demand precise verification of safety and performance. The HT Instruments JUPITER combines a full-featured digital multimeter with an RCD tester, enabling electricians and maintenance technicians to measure voltage, current, resistance, capacitance, frequency, loop impedance, and prospective fault current, and to verify RCD trip times and currents. With ISO calibration, it is ready for professional use in demanding environments.

Who is it for

Qualified electricians, electrical contractors, and maintenance personnel who need a single, reliable instrument for both general electrical measurements and RCD testing in residential, commercial, and industrial settings.

Main features

• 6000-count backlit LCD display for clear readings in any lighting.
• True RMS measurement for accurate AC voltage and current.
• RCD testing for Type A, AC, and F RCDs, including general, selective, and delayed modes.
• Loop impedance and prospective fault current (PFC/PSC) measurement.
• Bluetooth connectivity for data transfer and remote operation.
• Safety rated CAT IV 600V and CAT III 690V.
• ISO calibrated, ensuring traceable accuracy.

Specifications

• Display: 6000 counts, backlit LCD
• AC voltage range: 0.1 V to 690 V
• DC voltage range: 0.1 V to 1000 V
• AC current range: 0.1 mA to 10 A
• DC current range: 0.1 mA to 10 A
• Resistance range: 0.1 Ω to 60 MΩ
• Capacitance range: 1 nF to 10 mF
• Frequency range: 0.01 Hz to 10 kHz
• RCD trip current settings: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 650 mA
• Power supply: 6x 1.5 V AA batteries
• Connectivity: Bluetooth
• Calibration: ISO calibrated

Tips

Use the JUPITER's RCD test function regularly to verify that residual current devices trip within required times, ensuring ongoing protection against electric shock. The Bluetooth connection allows you to log measurements on a mobile device for documentation and reporting.
