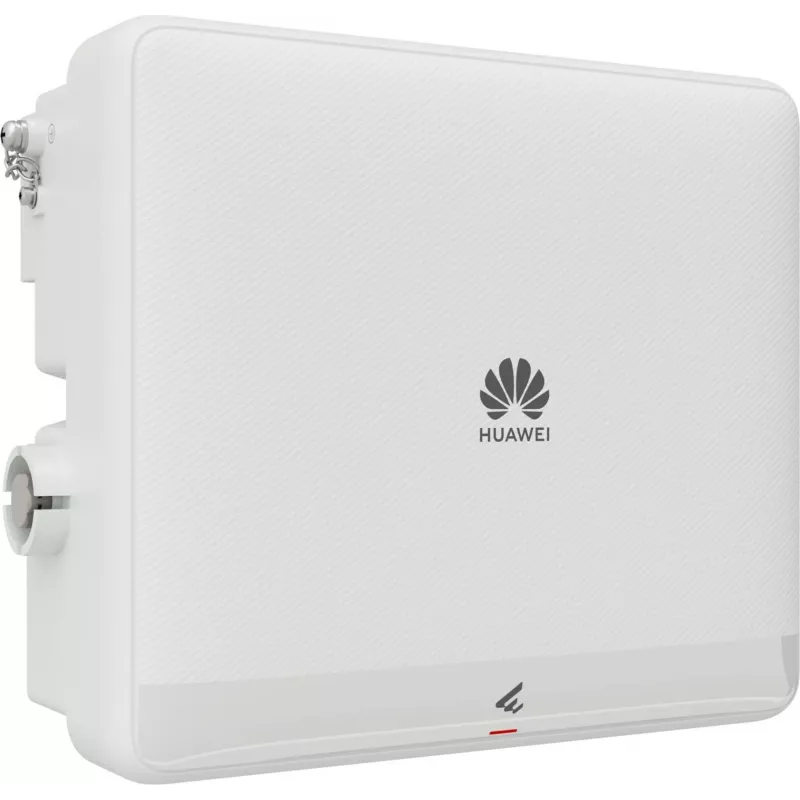

HUAWEI AP772 11be Ponto de acesso Wi-Fi 7 Tri-Band exterior com antena omnidirecional Dual-Band 2+4, USB BLE 50088137

With a combined tri-band throughput of up to 17.96 Gbps, the HUAWEI AP772 11be outdoor access point delivers next-generation Wi-Fi 7 performance in the most demanding environments. Its 2+4 dual-band omnidirectional smart antenna system provides 360-degree coverage across 2.4 GHz, 5 GHz, and 6 GHz, ensuring seamless connectivity for high-density outdoor deployments.

Overview

The HUAWEI AP772 is engineered for outdoor use, featuring an IP68-rated enclosure that withstands dust, water, and extreme temperatures from -40°C to +65°C. It supports the latest Wi-Fi 7 (802.11be) standard with key technologies such as Multi-Link Operation (MLO), 4096-QAM, and preamble puncturing, maximizing spectral efficiency and reducing latency. The access point is powered by PoE++ (802.3bt), simplifying installation with a single cable for both data and power.

What stands out

• Tri-band Wi-Fi 7 with 2x2 MIMO on 2.4 GHz and 4x4 MIMO on both 5 GHz and 6 GHz, totaling 10 spatial streams.
• Built-in omnidirectional smart antennas for uniform coverage without external antenna alignment.
• Bluetooth 5.2 (BLE) and USB 2.0 port for IoT integration and peripheral connectivity.
• Robust security with WPA3, WPA2, and WAPI support.
• Flexible management via cloud or AC, suitable for large-scale deployments.

Technical details

• Networking standards: IEEE 802.11be, 802.11ax, 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a.
• Frequency bands: 2.4 GHz, 5 GHz, 6 GHz.
• Ethernet ports: 1x 10GE (RJ45), 1x GE (RJ45).
• USB ports: 1x USB 2.0.
• Bluetooth: Bluetooth 5.2 (BLE).
• Power over Ethernet: PoE++ (802.3bt), max power consumption 45 W.
• Ingress protection: IP68.
• Operating temperature: -40°C to +65°C.
• Mounting: Pole mount, wall mount (mounting kit included).
• Dimensions (W x D x H): 220 mm x 220 mm x 90 mm.
• Weight: 1.5 kg.

Our verdict

The HUAWEI AP772 11be is a future-proof outdoor access point that delivers exceptional Wi-Fi 7 performance, rugged durability, and versatile connectivity. Its omnidirectional smart antennas and PoE++ support make it an ideal choice for enterprises seeking reliable, high-speed wireless coverage in outdoor spaces.
