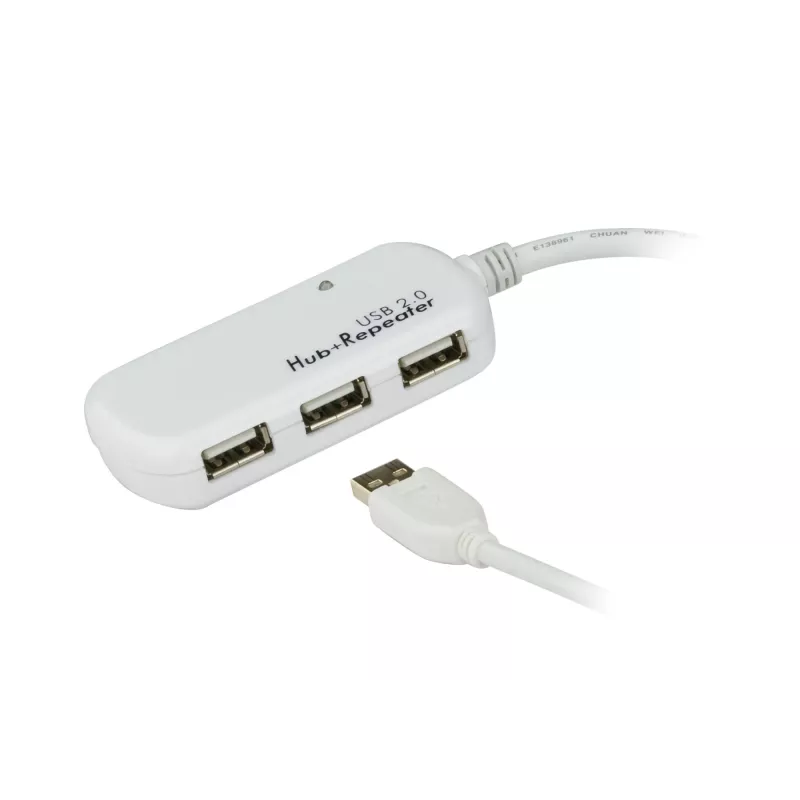

Hub extensor USB ATEN UE-2120H 4 portas 60m

The ATEN UE-2120H 4-Port USB 2.0 Extender Hub enables extension of USB connections between a host computer and USB devices up to 60 metres by chaining up to four UE-2120 extender cables with one UE-2120H hub. The device preserves USB 2.0 signal integrity and supports data transfer rates up to 480 Mbit/s. Its compact plastic housing and 5 V input make it suitable for integration in a variety of setups.

Advantages

The extender hub supports USB 2.0 host and hub interfaces and allows chaining of up to four UE-2120 extender cables plus one UE-2120H to reach a maximum extension distance of 60 metres. It maintains optimal signal integrity for connected USB devices and offers a compact, lightweight design (41 x 82 x 17 mm, 0.484 kg) in white plastic housing. Data transfer rates up to 480 Mbit/s are supported.

Suitable for

• Extending USB 2.0 peripherals (printers, scanners, external drives) over long distances
• Workstations and kiosks requiring remote USB device placement
• AV installations and control rooms where devices must be located away from the host

Key specifications

• Model: ATEN UE-2120H
• Host interface: USB 2.0
• Hub interfaces: 4 × USB 2.0
• Maximum extension distance: up to 60 m (with up to 4 UE-2120 cables + 1 UE-2120H)
• Data rate: up to 480 Mbit/s
• Input voltage: 5 V
• Dimensions: 41 × 82 × 17 mm
• Weight: 0.484 kg
• Colour: White

How to use

Connect the UE-2120H hub to the host using the designated UE-2120 extender cables. Chain up to four UE-2120 extender cables together with one UE-2120H to achieve the required extension length (maximum 60 m). Plug USB devices into the hub's USB 2.0 ports and ensure the host recognises each device. Provide 5 V power to the hub as required by the setup.

Recommendations

For best performance, use genuine ATEN UE-2120 extender cables and avoid exceeding the specified maximum number of chained extenders. Keep connections secure and avoid sharp bends in the cables to maintain signal integrity.
