Hub USB 3.0 de 4 portas em alumínio, extra digital XC-304-SV-PRO

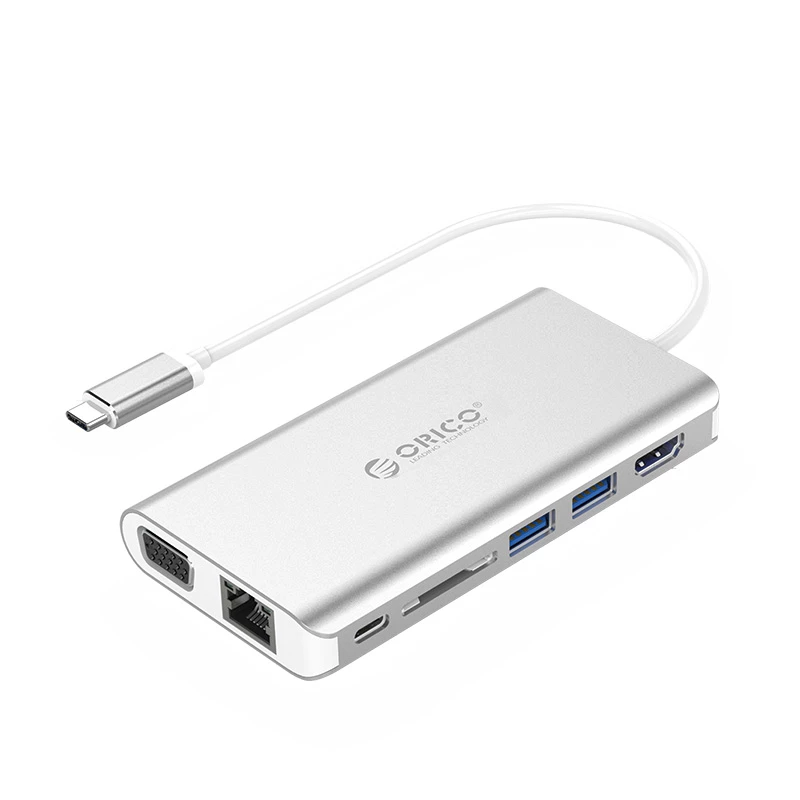

ORICO XC-304 is a compact TYPE-C multifunctional docking station in an aluminum-alloy body. It expands the connectivity of laptops and new TYPE-C smartphones that support video output, allowing devices to connect to external displays, wired networks and multiple peripherals. The dock supports video expansion, projection display, mobile working and large-screen gaming while enabling PD charging over the Type-C port.

Advantages

The aluminum housing and portable design offer durability and easy transport. Multiple output ports — HDMI, VGA, USB 3.0, SD, RJ45 and audio — provide versatile expansion from a single Type-C connection. The Type-C port supports PD charging up to 20V/3A and the Gigabit RJ45 port provides up to 1000Mbps network speed. Broad OS compatibility includes Windows, Linux and macOS.

Suitable for

• Expanding video output from Type-C laptops and compatible smartphones
• Connecting external USB peripherals: drives, keyboards, mice and flash drives
• Wired network access for devices without an Ethernet port
• Presentations and projection display in meetings or classrooms

Key specifications

• Input / interface: Type-C
• Ports: Type-C (PD charging), HDMI, VGA, 2× USB 3.0, SD card slot, RJ45, audio
• Dimension: 116 × 60 × 16 mm
• Cable length: 15 cm
• Type-C PD charging: up to 20V / 3A
• USB 3.0 maximum speed: 480 Mbps
• RJ45 maximum speed: 10 / 100 / 1000 Mbps (Gigabit Ethernet)
• Supported systems: Windows, Linux, macOS

How to use

Connect the docking station to a host device using the integrated Type-C cable. For video output, connect an HDMI or VGA cable from the dock to an external monitor or projector; choose the appropriate display input on the external screen. Insert USB devices into the USB 3.0 ports and an SD card into the card slot. For wired network access, plug an Ethernet cable into the RJ45 port. If charging is required while using the dock, connect a PD-capable Type-C power adapter to the Type-C PD input.

Recommendations

Use a PD-rated Type-C power adapter that matches the dock's PD specification (up to 20V/3A) to ensure stable charging. Avoid exposing the aluminum housing to liquids and excessive heat. For best network performance, use quality Cat5e/Cat6 Ethernet cables.
