Hypertec 272210-HY Módulo keystone

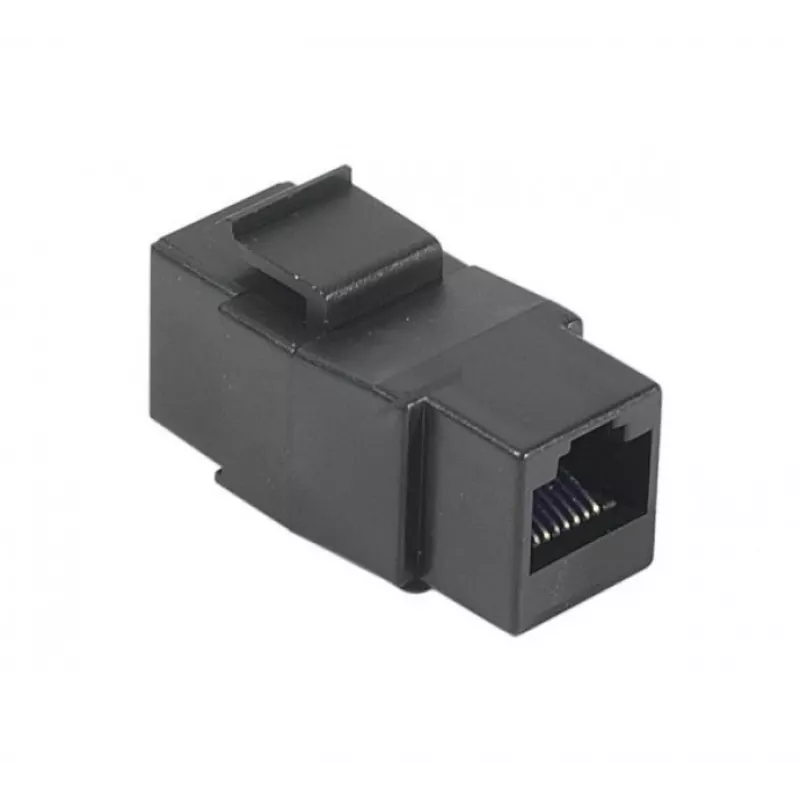

The Hypertec 272210-HY keystone module is a single-port network insert designed for structured cabling installations. With a black housing and dual RJ-45 connector layout, this keystone module provides a compact, panel- or wall-plate-mountable solution for Ethernet terminations. It is intended to fit standard keystone openings and offers straightforward snap-in installation for access points, patch panels, and outlet plates in commercial and residential networks.

Advantages

The module’s standardized keystone form factor ensures compatibility with most keystone wall plates and patch panels. The black finish provides a neutral appearance that blends with common faceplates and cabling furniture. Dual RJ-45 connectivity supports secure cable termination and makes it possible to route separate network lines through a single module opening. The design emphasizes reliable contact alignment and easy replacement or upgrade without altering existing plates.

Suitable for

Key specifications

How to use

Terminate the Ethernet cable conductors onto the module’s IDC or punch-down contacts following the appropriate wiring scheme (T568A or T568B). Verify pair alignment and trim excess conductors before seating the module. Insert the module into a compatible keystone opening until the retention tabs click into place. After installation, test the port with a network tester to confirm continuity and correct wiring.

Recommendations

When installing the keystone module, maintain proper cable bend radius and avoid excessive tension on the terminated cable to preserve signal integrity. Use a quality punch-down tool for consistent contacts and perform post-installation testing to ensure reliable network performance.
