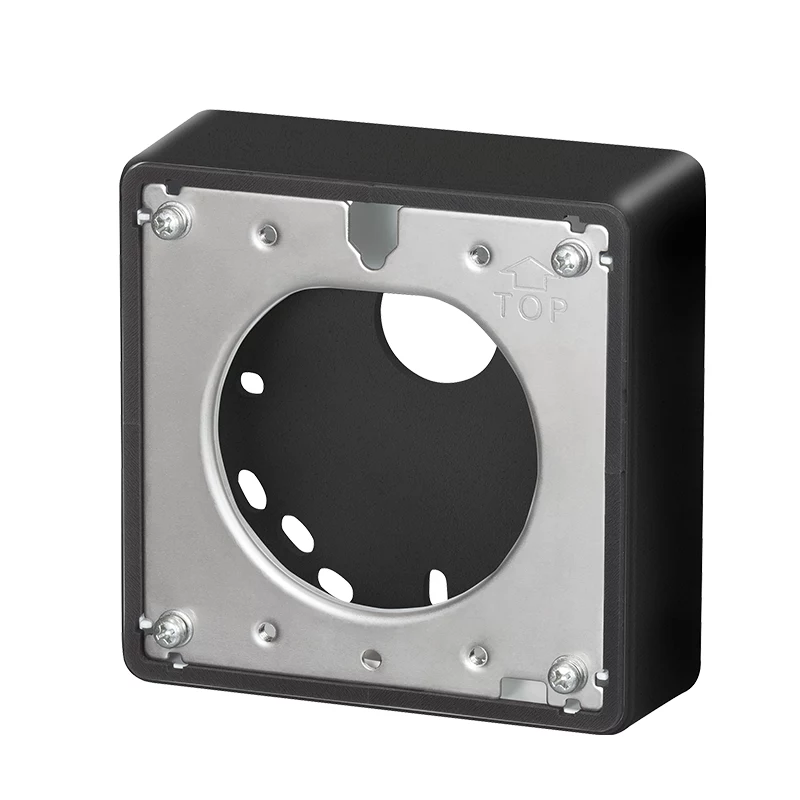

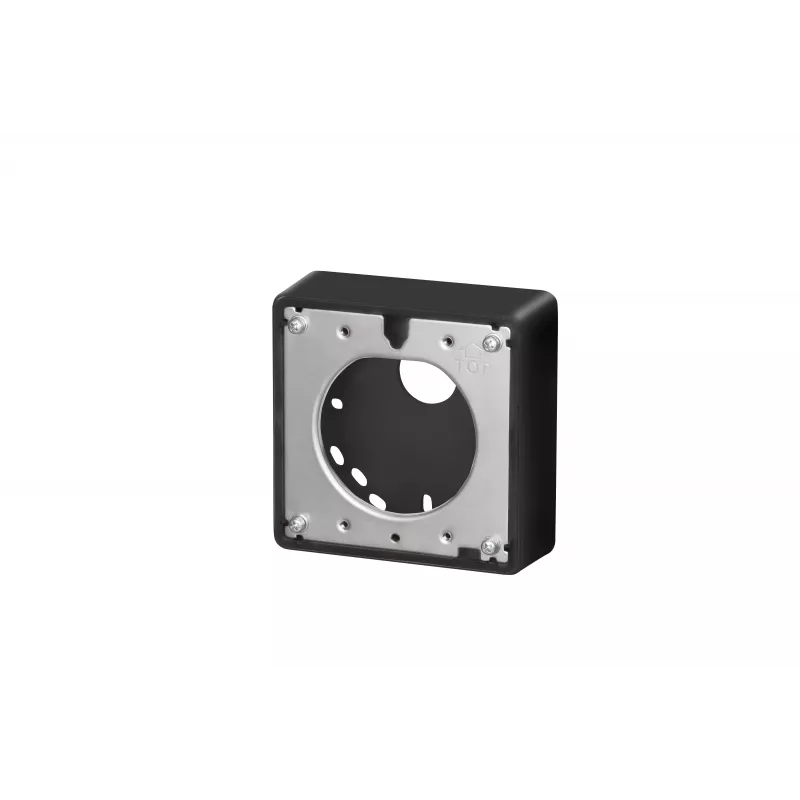

i-PRO WV-QJB500-B Caixa de ligação para câmaras Série S e Série U, Preto, IP66, IK10

The i-PRO WV-QJB500-B is a high-quality aluminum die-cast junction box designed for seamless integration with i-PRO S-Series and U-Series network cameras. This robust accessory provides a secure and weatherproof enclosure for cable connections, ensuring reliable performance in demanding indoor and outdoor environments. With an IP66 rating and IK10 impact protection, it offers exceptional durability against dust, water jets, and physical impact.

Advantages

This junction box simplifies installation and maintenance by providing a dedicated space for cable management and connections. Its vandal-resistant construction ensures long-term reliability in public and high-traffic areas. The black finish blends discreetly with most camera installations.

Suitable for

• i-PRO S-Series network cameras
• i-PRO U-Series network cameras
• Wall, ceiling, or pole mount installations (pole adapter optional)
• Indoor and outdoor surveillance systems

Key specifications

• Product Type: Junction Box
• Compatibility: i-PRO S-Series and U-Series Network Cameras
• Material: Aluminum Die-cast
• Color: Black
• Mounting Options: Wall, Ceiling, Pole (with optional adapter)
• Cable Management: Integrated for concealed wiring
• Ingress Protection: IP66
• Impact Protection: IK10
• Operating Temperature: -40 °C to +60 °C (-40 °F to +140 °F)
• Operating Humidity: 10% to 100% (without condensation)
• Load Capacity: Up to 10 kg (22 lbs)
• Conduit Thread Size: G1/2
• Construction: Vandal-resistant, Weather-resistant
• Application Environment: Indoor/Outdoor
• Certifications: UL, cUL, CE, FCC, VCCI
• Mounting Pattern: Standardized for i-PRO cameras

Recommendations

For optimal performance and protection of your i-PRO network camera installation, pair the WV-QJB500-B junction box with appropriate i-PRO mounting brackets and accessories. Ensure proper sealing of conduit connections to maintain the IP66 rating.
