i-PRO WV-S4156A câmara de rede fisheye 5MP

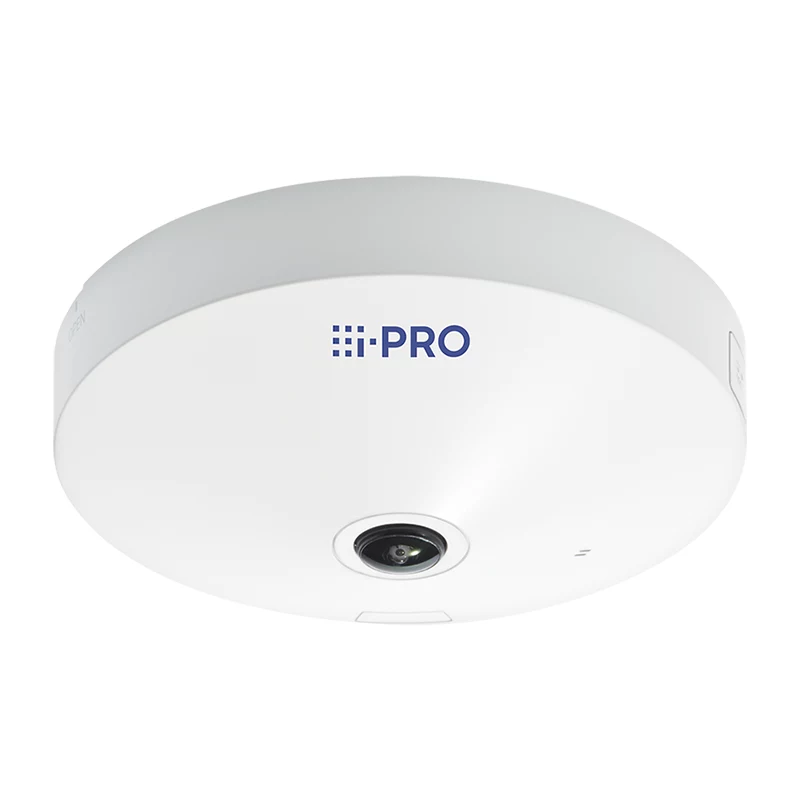

The i-PRO WV-S4156A is a high-performance 5MP fisheye network camera designed for 360° panoramic surveillance. Featuring a 1/2.8" CMOS sensor and a fixed fisheye lens with 1.4 mm focal length, it delivers a 360° field of view at up to 2560x1920 resolution and 30 fps. With H.265/H.264 compression, built-in AI analytics, and IP66/IK10 protection, this camera is ideal for indoor and outdoor applications requiring comprehensive area coverage.

Advantages

360° panoramic view eliminates blind spots; AI-based analytics (AI-VMD, AI Privacy Masking) enhance security; robust IP66 and IK10 rating ensures durability; PoE support simplifies installation; built-in microphone and audio I/O enable two-way communication.

Suitable for

• Retail stores and shopping malls
• Warehouses and logistics centers
• Office buildings and lobbies
• Parking lots and outdoor areas
• Educational campuses

Key specifications

• Sensor: 1/2.8" CMOS
• Maximum Resolution: 2560 x 1920 (5 MP)
• Frame Rate: Up to 30 fps
• Lens: Fixed Fisheye, 1.4 mm, F2.0
• Field of View: 360°
• Video Compression: H.265, H.264, JPEG
• Minimum Illumination: 0.08 lux (Color)
• IR Range: Up to 10 m
• Audio: Built-in microphone, audio in/out
• Network: 10/100Base-TX Ethernet
• Power: PoE (IEEE 802.3af Class 3), 12 V DC
• Local Storage: microSDXC/microSDHC/microSD slot
• Environmental Protection: IP66
• Vandal Resistance: IK10
• Operating Temperature: -10 °C to +50 °C
• Smart Features: AI-based analytics (AI-VMD, AI Privacy Masking)
• Day/Night: IR Cut Filter with Auto Switching
• Viewing Modes: Fisheye, Panorama, Quad, Double Panorama

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. The camera supports microSD cards up to 512 GB for edge recording. Ensure proper mounting to achieve full 360° coverage.
