Impressora DASCOM Europe 28.828.0252 impressora matricial branca

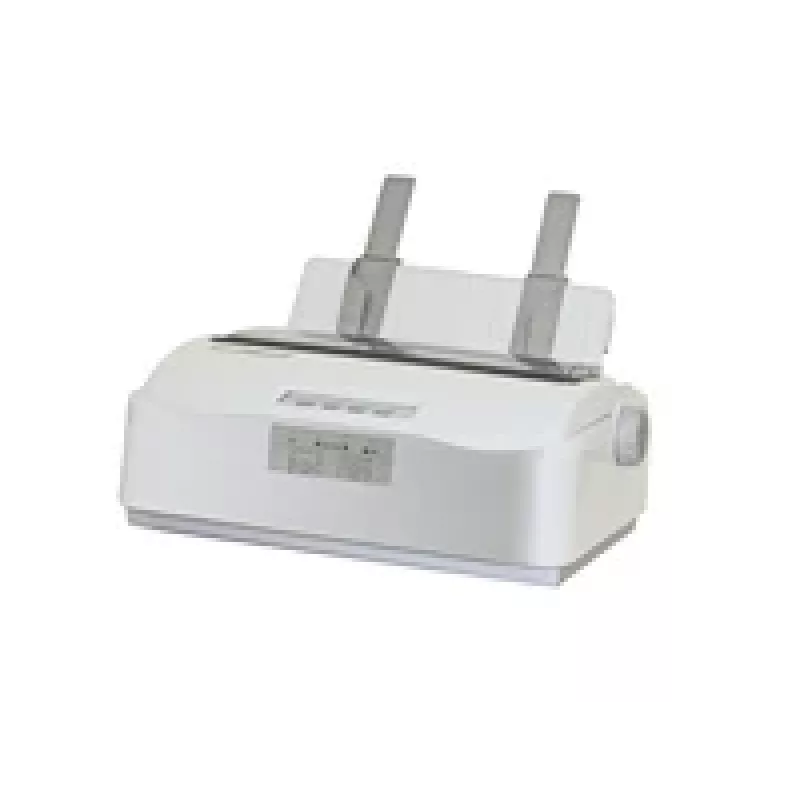

The DASCOM Europe 28.828.0252 dot matrix printer White is a compact impact printer designed for reliable document output in business and industrial environments. It delivers a maximum print speed of 450 characters per second and a resolution of 360 x 360 DPI using a 24-pin print head with bi-directional printing. The unit accepts continuous forms via a push tractor feed and also supports single cut sheets within a width range of 95–267 mm and length range of 114–362 mm. With a USB 2.0 interface and a sound pressure level of 57 dB, this printer balances performance and connectivity for routine printing tasks.

Advantages

The DASCOM 28.828.0252 combines impact printing durability with consistent print quality at 360 x 360 DPI and a robust 24-pin head suitable for multi-part forms. A top-rated print speed of up to 450 cps and bi-directional printing enable efficient throughput for line-oriented output. The push tractor mechanism provides dependable handling of continuous paper, while support for cut sheets makes the device versatile for mixed print jobs. The white enclosure and compact weight of around 5 kg simplify placement in office or production-line settings.

Suitable for

• Printing multi-part forms, invoices and receipts
• Continuous-form reports and logs in warehouse or manufacturing environments
• Low-maintenance line printing for point-of-service and back-office tasks
• Environments requiring USB 2.0 connectivity and compact footprint

Key specifications

• Maximum resolution: 360 x 360 DPI
• Print head: 24-pin
• Maximum print speed: up to 450 characters per second
• Paper handling: push tractor feed for continuous forms; cut sheet width 95–267 mm; cut sheet length 114–362 mm
• Printing mode: bi-directional printing
• Standard interface: USB 2.0
• Acoustic level: 57 dB (sound pressure level)
• Colour: White
• Weight: approximately 5 kg

How to use

Install the printer on a stable, level surface and connect it to a compatible host via the USB 2.0 interface. Load continuous forms using the push tractor feed, aligning perforations and pins according to the paper guide; for single sheets, set the cut sheet width and length within the supported ranges and feed through the cut-sheet path. Select the appropriate paper type and print quality settings in the host application or printer driver to match the 24-pin impact head and the 360 x 360 DPI resolution. For multi-part forms, run a test print to confirm correct alignment across copies and adjust tractor or guide positions if necessary.

Recommendations

Use high-quality ribbons and follow the manufacturer’s maintenance schedule to preserve print head life and consistent output quality. Keep the tractor feed free of dust and ensure proper alignment when switching between continuous and cut-sheet media. Place the printer where its 57 dB acoustic level is acceptable for the working environment, and use USB 2.0 connections for stable data transfer.
