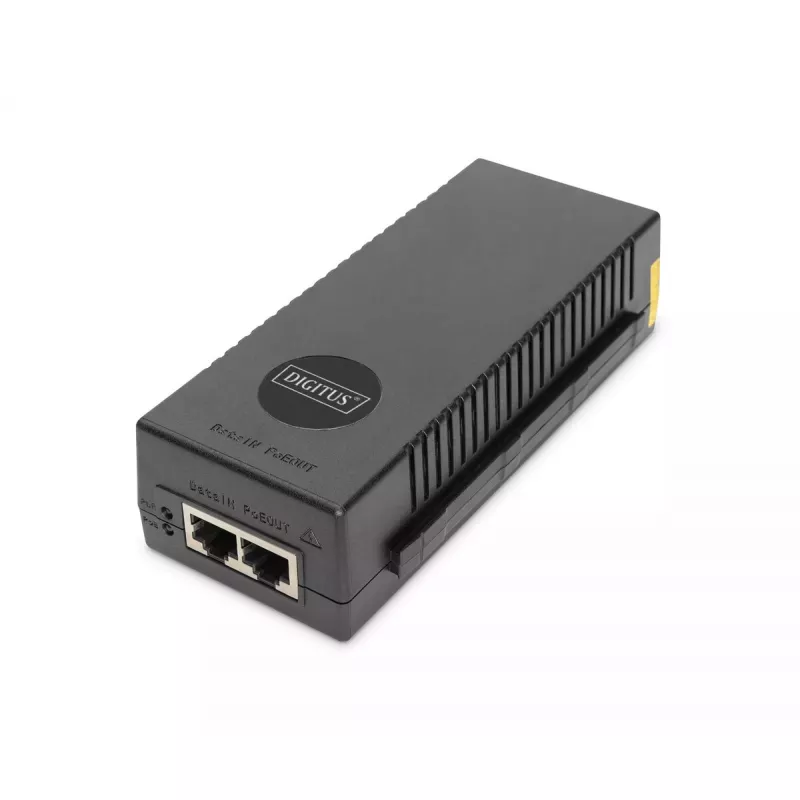

Injetor PoE+ Digitus DN-95108 10 Gigabit Ethernet

The PoE+ Injector Digitus DN-95108 10 Gigabit Ethernet supplies both power and data over a single network cable for PoE-enabled devices such as access points, IP phones and IP cameras. It supports the IEEE 802.3af/at standard, delivers up to 30 W PoE output and provides data transfer rates up to 10 Gbps over distances up to 100 m. The compact unit includes LED indicators, integrated power connection (C14) and protection against overvoltage and short circuits.

Advantages

This DIGITUS PoE+ injector offers a midspan solution that eliminates the need for separate power supplies at the device side by combining power and 10 Gigabit data on a single cable. It is fully IEEE 802.3at-compliant, supports multiple Ethernet speeds (10G/5G/2.5G/1G/100/10), features automatic PoE device detection and provides status LEDs for simple monitoring. Wall-mountable construction and built-in protections improve installation flexibility and operational safety.

Suitable for

• Wireless access points requiring PoE or PoE+
• IP security cameras and remote surveillance devices
• VoIP/IP phones and desktop network endpoints
• Network installations needing 10 Gbps uplinks with remote power

Key specifications

• Model: Digitus DN-95108
• PoE standard: IEEE 802.3af/at (PoE/PoE+)
• PoE output power: up to 30 W
• Data rates: 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, 100/10 Mbps
• Maximum cable distance: up to 100 m
• Ports: 2 x RJ-45 (Ethernet LAN)
• PoE voltage: 52 V

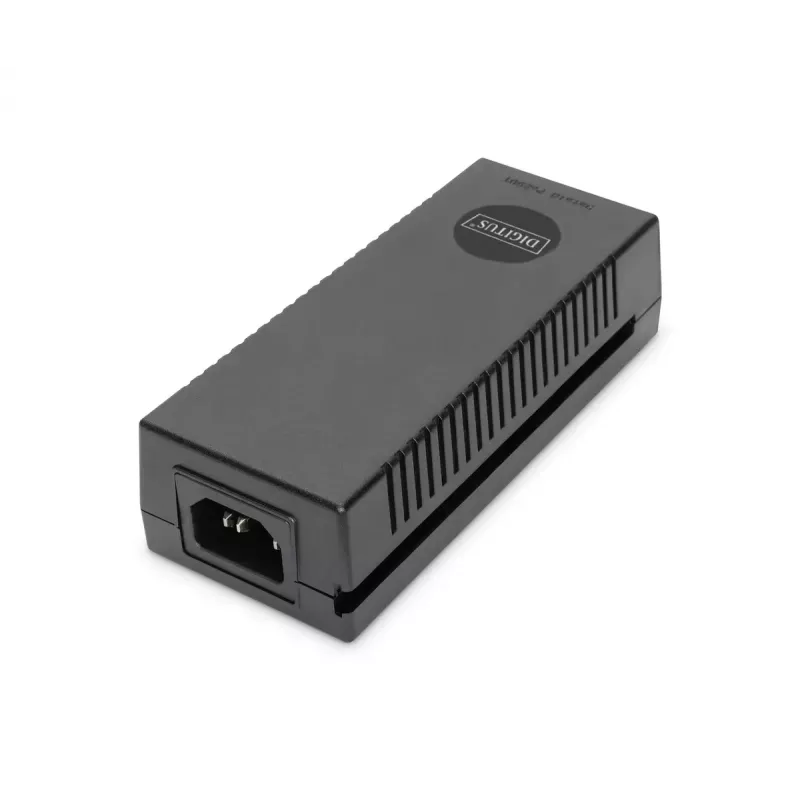

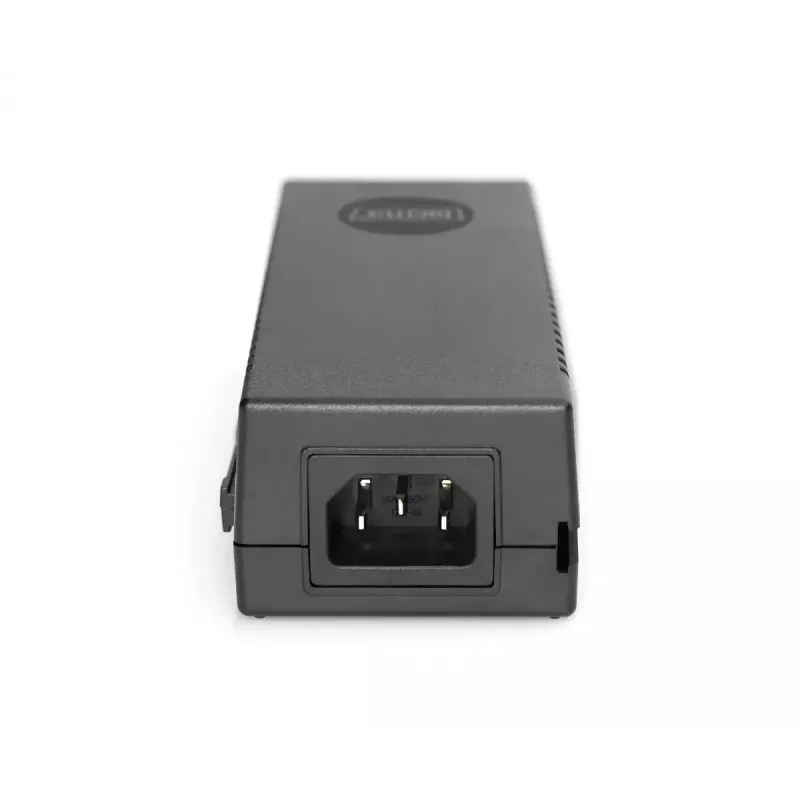

• Input voltage: 100–240 V AC, integrated C14 power connector

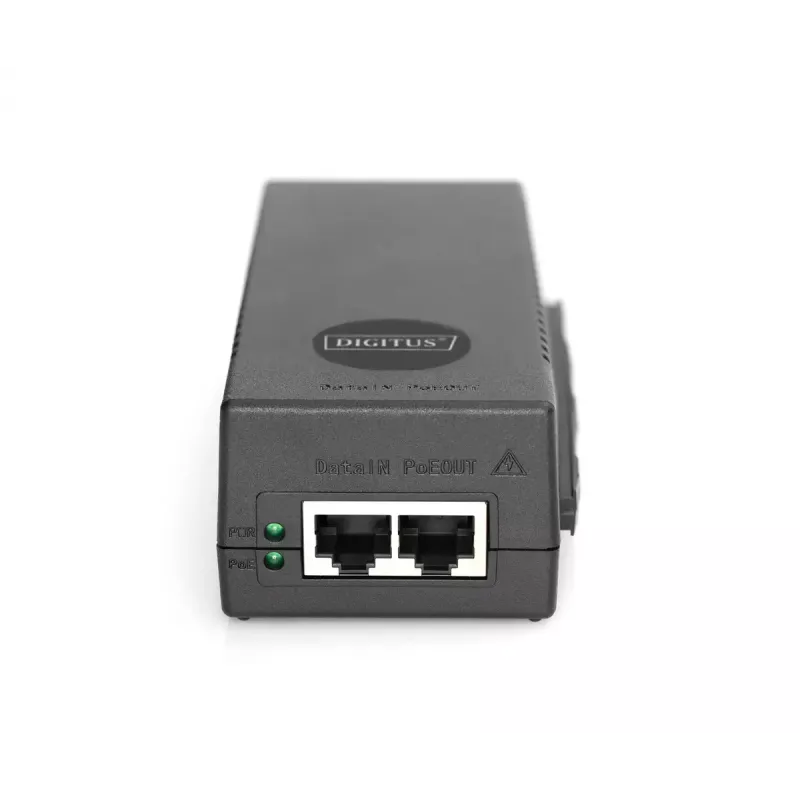

• Indicators: LED status display for power and PoE
• Dimensions: 61.5 × 145.5 × 40 mm; Weight: 0.45 kg
• Colour: Black

How to use

Connect the injector to an AC power source using the integrated C14 power connection. Insert the network cable from your switch or router into the data-in port and connect the device requiring PoE (access point, IP camera, VoIP phone) to the PoE output port. The injector will automatically detect PoE-capable devices and supply up to 30 W while allowing data transfer at supported Ethernet speeds. Verify LED indicators to confirm power and PoE status and mount the unit on a wall if desired.

Recommendations

Use CAT5e or higher-rated cables to achieve reliable PoE and 10 Gbps performance, keep individual cable runs within 100 m, and ensure connected devices are IEEE 802.3af/at-compatible. For permanent installations, secure the injector to a stable surface and allow adequate ventilation around the unit.
