Injetor Power-over-Ethernet Zyxel PoE12-30W

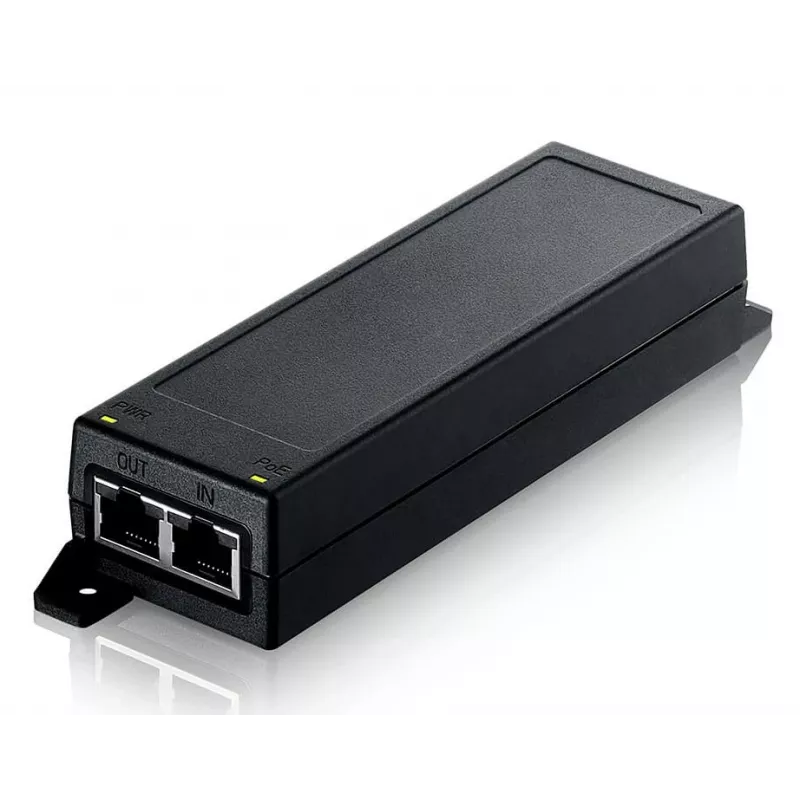

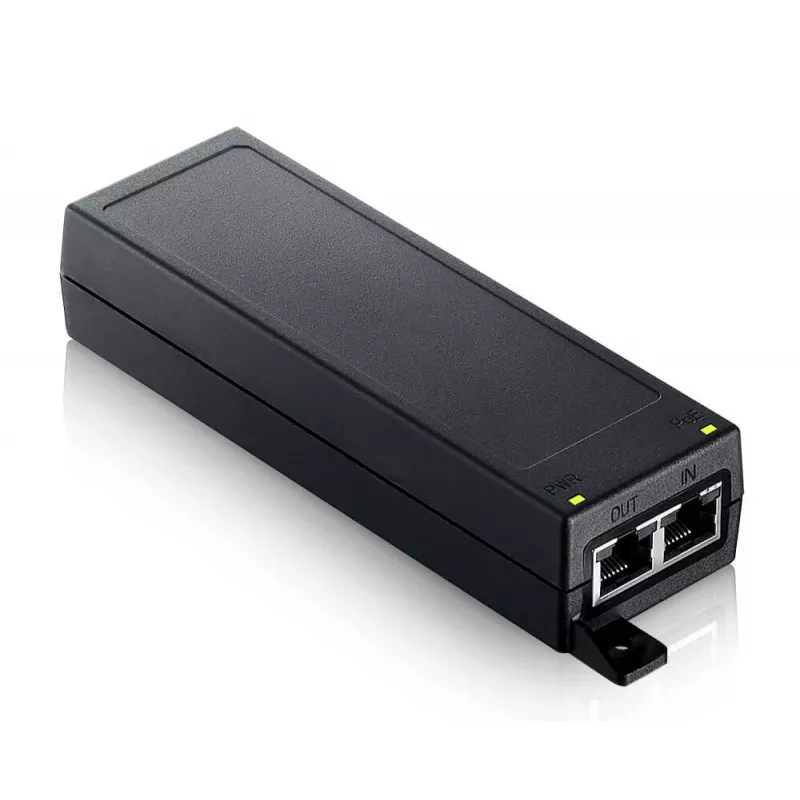

The Zyxel PoE12-30W Power over Ethernet injector delivers multi-gigabit network connectivity and power in a compact form factor. It supports data rates of 100/1000/2500 Mbps over Cat 5e or better cabling and provides up to 30 W of power to connected devices. Compliant with IEEE 802.3 standards, the injector features two RJ-45 ports and a compact black enclosure (140 mm x 45.5 mm x 30 mm), making it suitable for diverse networking environments with a wide input voltage range of 100–240 V.

Advantages

The PoE12-30W supports 2.5 Gigabit speeds to increase throughput on existing cabling and supplies up to 30 W of power to PoE devices without additional wiring. Its plug-and-play operation requires no configuration, and the compact wall-mount/desktop design simplifies installation in constrained spaces. Compliance with IEEE 802.3 ensures interoperability with standard PoE equipment.

Suitable for

• Powering and connecting IP cameras
• Supplying wireless access points
• Small office or home network upgrades to multi-gigabit
• Deployments using existing Cat 5e or better cabling

Key specifications

• Model: Zyxel PoE12-30W (MPN: POE12-30W-EU0101F, EAN: 4718937620227)
• Data rates: 100 / 1000 / 2500 Mbps
• PoE output: up to 30 W
• Standards: IEEE 802.3-compliant

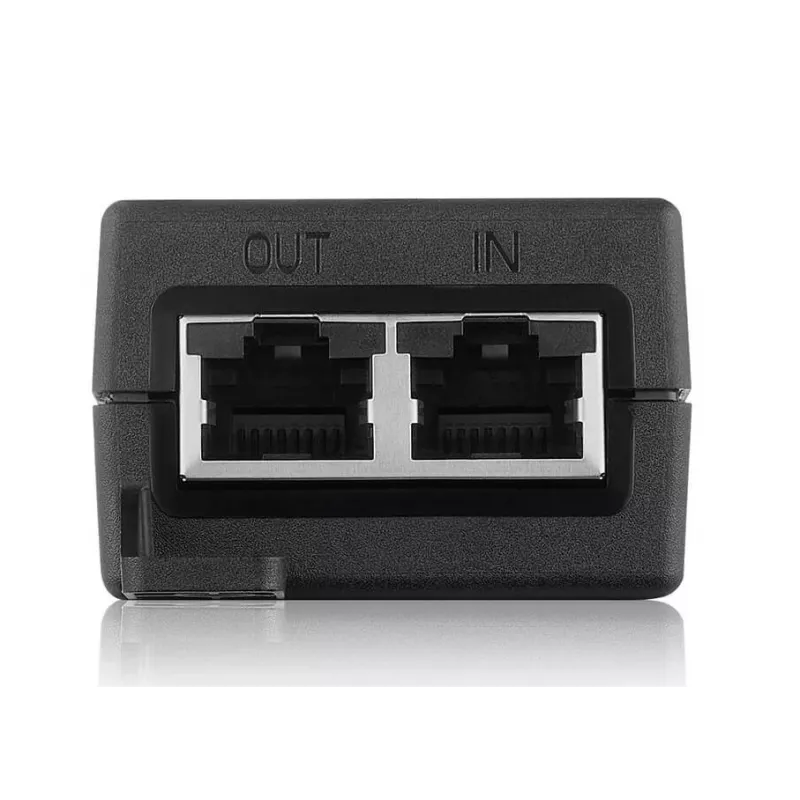

• Ports: 2 x Ethernet (RJ-45)
• Dimensions: 140 x 45.5 x 30 mm
• Weight: 0.144 kg
• Colour: Black

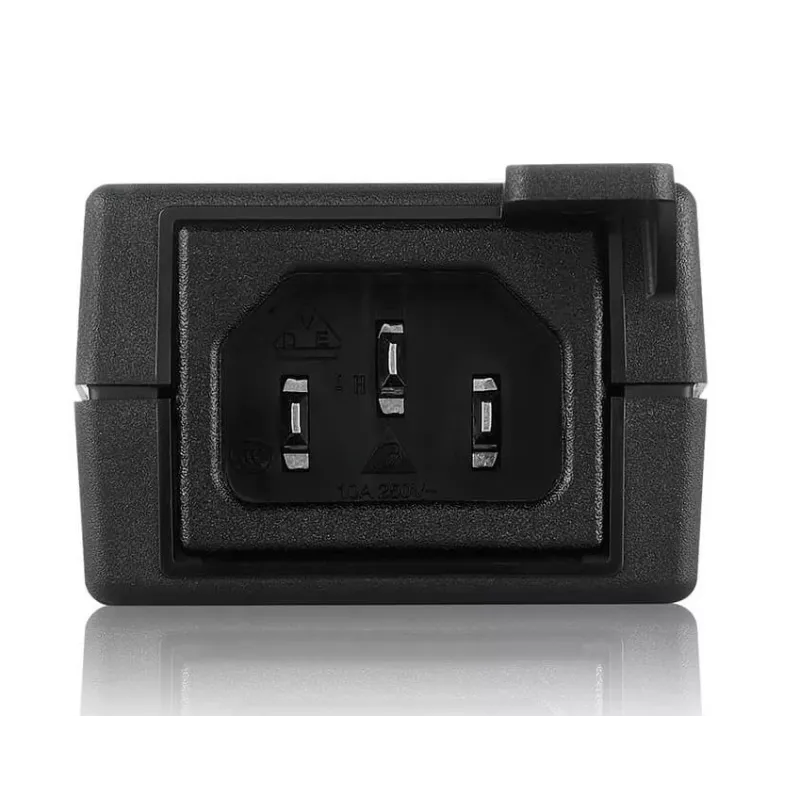

• Input voltage: 100–240 V

How to use

Connect the injector's LAN port to your network switch or router and plug the PoE-enabled device into the PoE port using a Cat 5e or higher cable. Attach the injector to a power outlet (100–240 V). The device is plug-and-play and requires no configuration; once powered, it will deliver both data and power to the connected PoE device automatically. Choose a wall-mounted or desktop position according to the installation space.

Recommendations

Use Cat 5e or better cabling to achieve 2.5 Gbps speeds; ensure the powered device accepts up to 30 W via PoE. Mount the injector in a ventilated location and avoid exposure to moisture or extreme temperatures for reliable operation.
