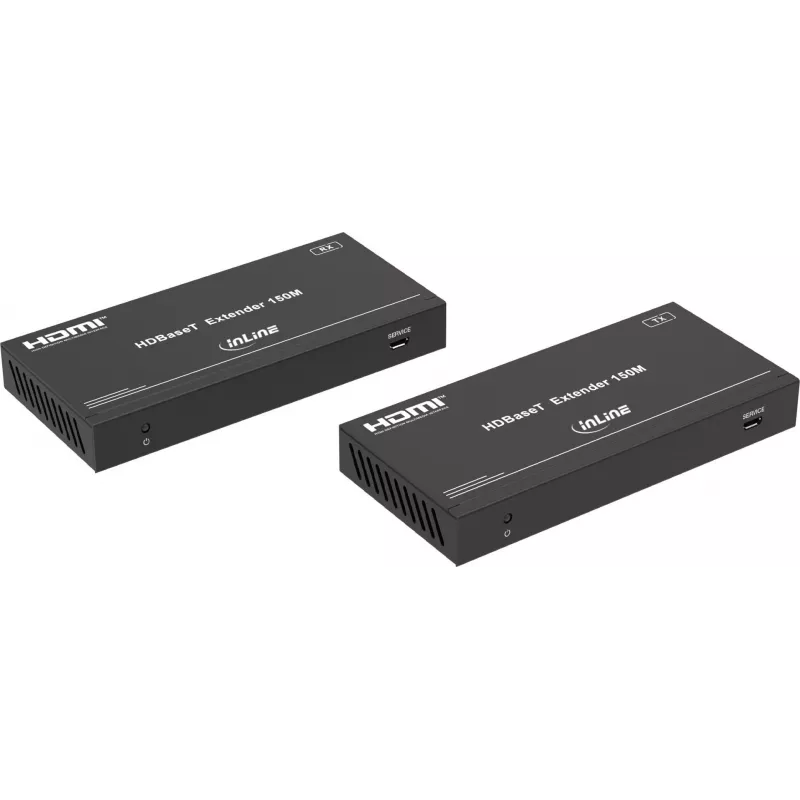

InLine HDBaseT HDMI 4K/60Hz Kit extensor de vídeo, Cat.6 (57886C)

The InLine HDBaseT HDMI 4K/60Hz Video Extender Set transmits HDMI image and sound signals over a single network cable up to 150 metres. It supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) and a maximum data rate of 18 Gb/s. IR and RS-232 signals are transmitted together with the HDMI signal, and the transmitter's HDMI loop-out allows local image output.

Key features

• HDMI transmission over a single network cable up to 150 m
• Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4)
• Maximum data rate: 18 Gb/s
• IR and RS-232 signals transmitted together with HDMI
• HDMI loop-out on transmitter for local image output
• Designed for continuous operation in dry indoor environments

Specifications

• Brand: InLine
• MPN: 57886C
• Transmission medium: Network cable (CAT5e / CAT6)
• Transmission standard: HDBaseT
• Maximum transmission distance: up to 150 m with Full HD (1080p) via CAT6; up to 120 m with 4K@60Hz
• Transmission of control and operating signals: Infrared (IR) and RS-232
• Operating temperature: 0 °C to +40 °C
• Storage temperature: −20 °C to +60 °C
• Permissible humidity: 20–80 %, non-condensing
• HDMI standard: HDMI 2.0b
• HDCP: Version 2.2
• Maximum resolution: 3840 × 2160 @ 60 Hz (4:4:4)
• Maximum data rate: 18 Gb/s
• HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• Colour depth: 8 bits, 10 bits or 12 bits
• Audio: LPCM 2.0 / 5.1 / 7.1; Dolby Digital, Dolby Digital Plus, Dolby TrueHD; DTS, DTS-HD Master Audio
• Analogue audio on receiver: Stereo (L/R)
• Power supply (external): Input AC 100–240 V / 50–60 Hz; Output DC 24.0 V / 1.0 A; Output power max. 24.0 W
• Average efficiency in operation (230 V / 50 Hz): 88.02%
• Power consumption at zero load (230 V / 50 Hz): 0.08 W
• Efficiency at low load (10%) (230 V / 50 Hz): 80.33%
• Transmitter connections: 1 x HDMI input; 1 x HDMI loop-out; 1 x HDBaseT output (RJ45); 1 x IR input (3.5 mm jack); 1 x IR output (3.5 mm jack); 1 x RS-232 connection (3-pin screw terminal connector); 1 x USB service connection; 1 x DC 24 V power supply
• Receiver connections: 1 x HDBaseT input (RJ45); 1 x HDMI output; 1 x 3.5 mm audio output; 1 x IR input (3.5 mm jack); 1 x IR output (3.5 mm jack); 1 x RS-232 connection (3-pin screw terminal connector); 1 x USB service port; 1 x DC 24 V power supply
• Scope of delivery: 1 x HDMI HDBaseT extender – transmitter; 1 x HDMI HDBaseT extender – receiver; 1 x power supply unit (DC 24 V / 1 A, lockable); 1 x IR receiver cable (approx. 1.5 m); 1 x IR transmitter cable (approx. 1.5 m); 4 x mounting brackets; 2 x 3-pin screw terminal connectors (RS-232); 1 x operating instructions in German/English
• Manufacturer information: INTOS ELECTRONIC AG, Siemensstrasse 11, 35394 Gießen, Deutschland, [email protected]
• Country of origin: China
• Complies with HDMI standard: 2.1
• Max. resolution: 3840x2160 / 60Hz
