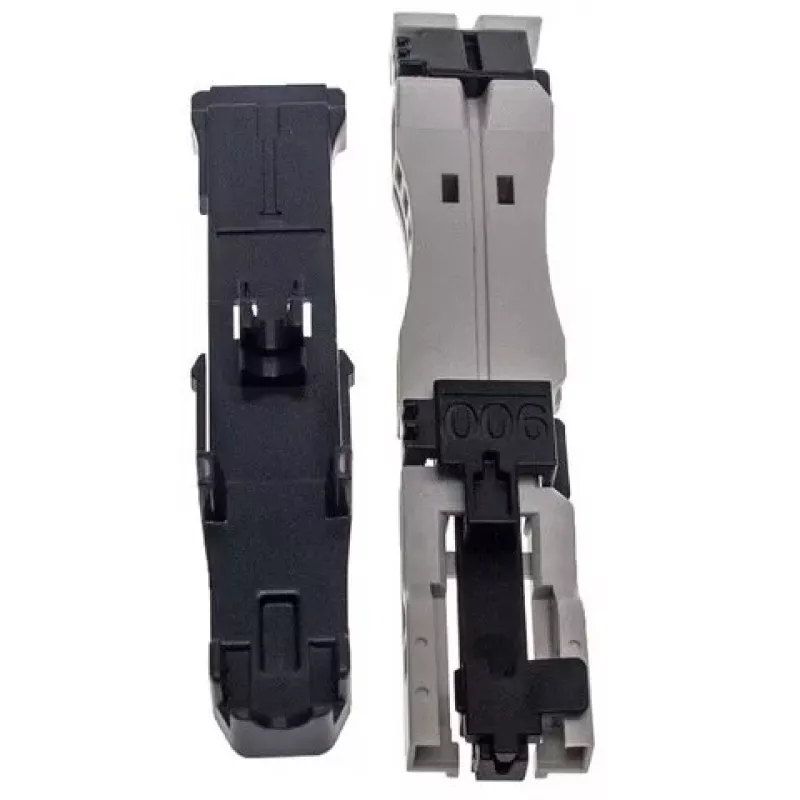

Instruções de montagem Telegärtner N04100A0046 para FFP

The Telegärtner N04100A0046 assembly guide is a printed manual intended for use with the Telegärtner FFP assembly set. It contains step-by-step instructions to ensure correct assembly and compatibility with Telegärtner components, helping achieve reliable mechanical and electrical connections.

Advantages

The guide provides clear, structured assembly steps and references specific parts of the Telegärtner FFP set. It clarifies connector orientation, tightening sequences and checks required after assembly to support consistent, repeatable results and to reduce the risk of assembly errors.

Suitable for

• Technicians assembling Telegärtner FFP connectors and components
• Workshops and service centres performing connector termination
• Quality control personnel verifying correct assembly

Key specifications

• Brand: Telegärtner
• MPN: N04100A0046
• EAN: 4018359565282
• Accessory type: Assembly guide for FFP

How to use

Follow the step-by-step instructions in the guide while working with the components of the Telegärtner FFP set. Verify part numbers against the guide, perform the mechanical assembly in the order shown, apply specified torque values where indicated and complete the final electrical or visual checks described. Use appropriate tools and observe ESD precautions if applicable.

Recommendations

Keep the assembly guide accessible at the workbench and consult it before each termination to ensure correct part selection and assembly sequence. Replace the guide if it becomes damaged or unreadable.
