Intellinet Armário de rede de montagem em parede 19 polegadas, Basic Line, 15 RU, 560 mm de profundidade, cinzento (RAL 9005) 716789

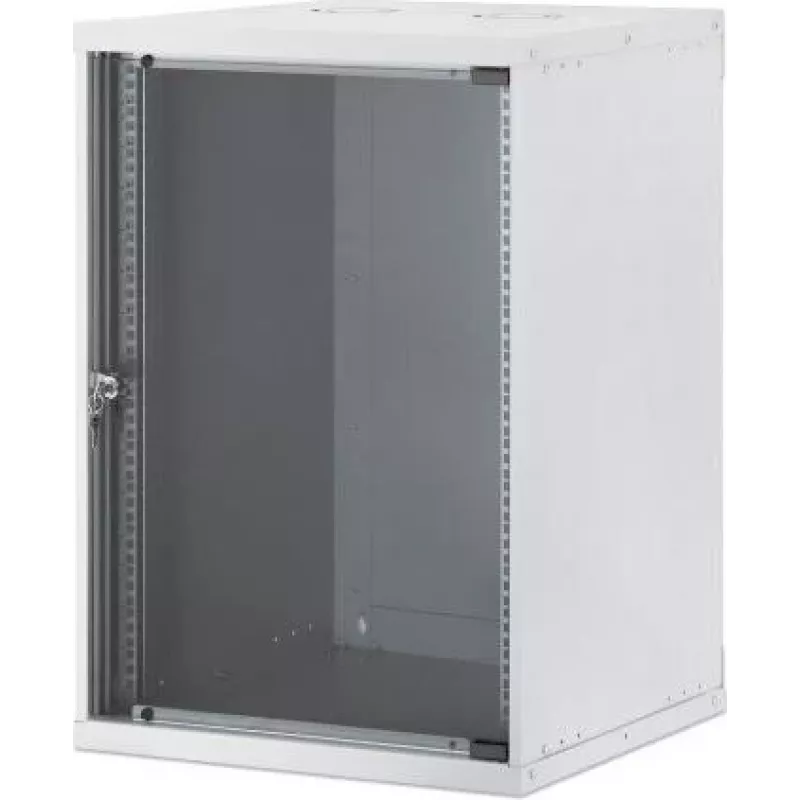

The Intellinet 19" Wall-Mount Network Cabinet in the Basic Line series offers a practical solution for organizing network equipment in environments where floor space is limited. Its flatpack design allows for cost-effective shipping and straightforward self-assembly, while the 15 RU capacity accommodates a substantial amount of hardware. The cabinet can be either wall-mounted or used freestanding with optional castors, providing flexibility for various installation scenarios.

Highlights

• 15 rack units of space for switches, patch panels, and other 19" equipment
• 560 mm depth supports larger devices and cable management
• Grey powder-coated steel construction with RAL 9005 finish
• Lockable tempered glass front door for security and visibility
• Removable and lockable side panels for easy access during installation
• Top and bottom cable entry points with knockouts or brush strips
• Passive ventilation via perforated top and bottom panels
• Adjustable front and rear mounting rails for flexible equipment placement
• Compliant with EIA-310-D 19" rack standard

In daily use

This cabinet is well-suited for small to medium network installations in offices, retail spaces, or workshops. The lockable front door and side panels help prevent unauthorized access, while the tempered glass door allows for quick visual monitoring of equipment status LEDs. The removable side panels simplify initial setup and cable routing, and the adjustable rails accommodate varying equipment depths. When wall-mounted, it keeps the floor clear; when freestanding with optional castors, it can be easily repositioned as needed.

Full specifications

• Rack type: Wall-mount network cabinet
• Rack standard: 19 inch
• Rack units: 15 RU
• External depth: 560 mm
• Colour: Grey (RAL 9005)
• Material: Steel
• Construction: Flatpack (self-assembly)
• Mounting options: Wall-mountable, freestanding
• Front door: Tempered glass, lockable
• Side panels: Removable, lockable
• Cable entry: Top and bottom
• Ventilation: Passive (perforated top/bottom)
• Compliance: EIA-310-D
• Protection rating: IP20
• Adjustable mounting rails: Yes, front and rear
• Product series: Basic Line
• Optional accessories: Castors

Final note

A reliable and flexible enclosure for your network infrastructure, balancing security, accessibility, and space efficiency.
