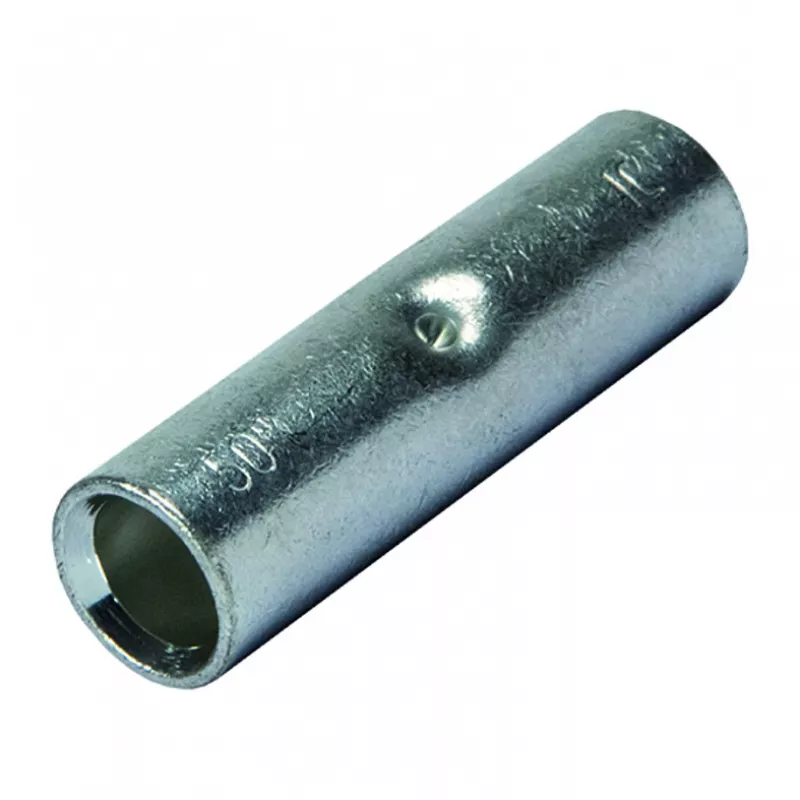

Terminal de compressão de cabo Intercable ICR50V 50 mm² com batente central, cobre estanhado, série R

With a conductor cross-section of 50 mm² and a robust electrolytic copper construction, the Intercable ICR50V tubular cable lug delivers reliable, high-conductivity connections in demanding electrical installations. Its tin-plated surface and integrated center stop ensure precise crimping and long-term corrosion resistance, making it a dependable choice for professionals.

Overview

The Intercable ICR50V is a tubular cable lug from the R-Series, engineered for stranded copper conductors (Class 2, 5, and 6). Manufactured from high-purity electrolytic copper (E-Cu, >99.9% Cu) and electro-tin plated, it offers excellent electrical conductivity and protection against oxidation. The center stop (Mittenanschlag) guarantees accurate conductor insertion, while the hexagonal crimp profile ensures a secure, gas-tight connection. Suitable for voltages up to 1000 V and operating temperatures from -40°C to +120°C, this uninsulated lug is ideal for control cabinets, machinery, and power distribution systems.

What stands out

• High-purity electrolytic copper (>99.9% Cu) for maximum conductivity
• Electro-tin plating provides superior corrosion resistance and low contact resistance
• Integrated center stop ensures correct conductor positioning every time
• Hexagonal crimp profile delivers a reliable, vibration-resistant connection
• Compatible with fine, extra-fine, and stranded copper conductors (Class 2, 5, 6)
• Wide operating temperature range (-40°C to +120°C) for harsh environments

Technical details

• Product Type: Tubular Cable Lug
• Conductor Cross-Section: 50 mm²
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Electro-Tin Plated
• Feature: With Center Stop
• Series: R-Series
• Connection Method: Crimp
• Crimping Type: Hexagonal Crimp
• Conductor Type Compatibility: Stranded Copper Conductors (Class 2, 5, 6)
• Operating Temperature Range: -40°C to +120°C
• Voltage Rating: Up to 1000 V
• Corrosion Resistance: High (due to tin plating)
• Material Purity: >99.9% Copper
• Standard Compliance: DIN 46235 (Implied)
• Application: Electrical installations, control cabinets, machinery
• Insulation: Uninsulated
• Color: Metallic (Silver-grey)

Our verdict

The Intercable ICR50V is a top-tier tubular cable lug that combines high-purity copper, tin plating, and a center stop for reliable, corrosion-resistant crimp connections. Ideal for professionals needing precision and durability in demanding electrical applications.
