Intercomunicador áudio GIRA 126665

Intercomunicador áudio GIRA 126665
Intercomunicador áudio GIRA 126665
259,94 €
PDF
PDF
Stock 2 Código 2190604 Modelo 126665 Garantia 3 anos

Envios e devoluções

Entrega prevista sexta-feira, 11 de dezembro
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardPayPalApple PayGoogle PayTransferência bancária

Faça uma pergunta – o assistente IA responde de imediato.

Descrição

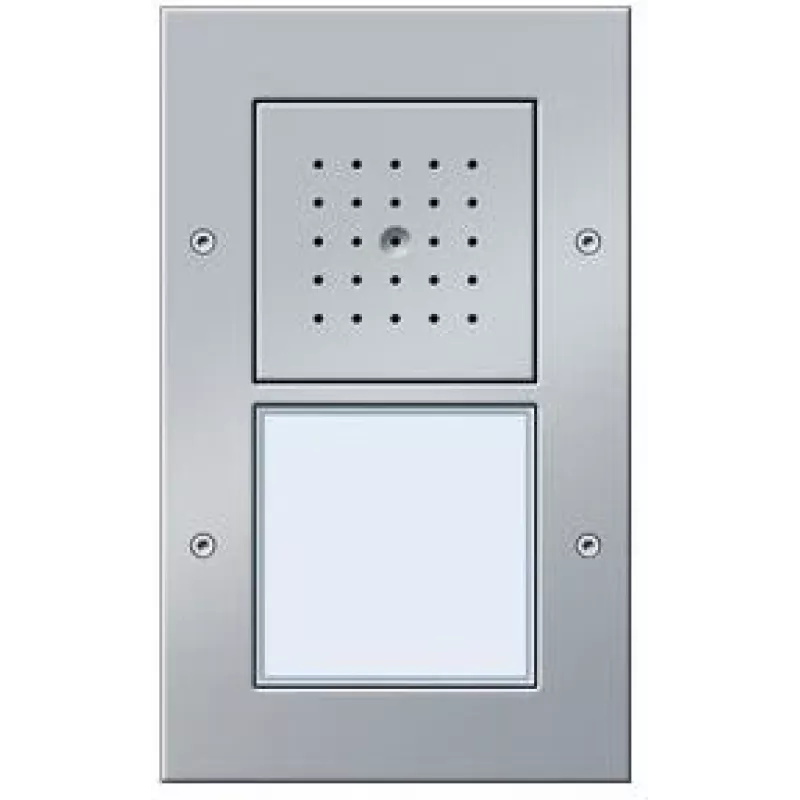

Fully pre-assembled surface-mounted door station designed for vertical surface installation in the Gira TX_44 design line. The unit features an aluminium profile for torsional rigidity and a frame made of shatter-proof thermoplastic with high UV resistance and a scratch-resistant surface. The station is weather-resistant, has theft protection with Torx screws, and low profile height of just 19 mm. Signal transmission and power for audio and video components use a reverse-polarity-protected, short-circuit-proof 2-wire bus. The device is suitable for outdoor use with IP44 protection and comes in a compact form factor (110 mm width × 19 mm depth × 181 mm height).

Advantages

The pre-assembled design enables quick and clean installation while the aluminium profile ensures a torsionally rigid surface-mounted housing. The shock-resistant thermoplastic frame provides UV stability and a maintenance-free, scratch-resistant surface. Built-in theft protection with Torx screws increases security. Audio quality is supported by a weather-resistant speaker, a high-quality electret microphone and an integrated speakerphone function with echo and background-noise suppression. Call-button illumination uses energy-saving white LEDs and the call-button nameplate can be exchanged without tools.

Suitable for

Key specifications

How to use

Mount the pre-assembled door station vertically on a suitable surface following the installation instructions and local electrical regulations. Connect the unit to the building wiring using the reverse-polarity-protected 2-wire bus for signal and power transmission; the unit supports AC/DC supply. Secure the station with the supplied Torx screws for theft protection. After connection, perform the one-person start-up using the easy start-up procedure to configure audio settings and call-button operation. Adjust voice volume as needed.

Recommendations

For reliable long-term operation, install the Gira 126665 at a protected but accessible height, avoid direct exposure to heavy water jets, and use the Gira Inscription Service or the Gira inscription software for professional labelling of the call-button nameplate.
Destaques principais
  • Residential or small commercial exterior entrances
  • Vertical surface-mounted installations where a low-profile station is required
  • Installations requiring a wired 2-wire bus connection
  • Environments needing weather-resistant audio door communication (IP44)
  • Brand: Gira
  • Model / MPN: 126665
  • EAN: 4010337266655
  • Design line: Gira TX_44
  • Mounting: Vertical surface-mounted, fully pre-assembled
  • Dimensions (W × D × H): 110 mm × 19 mm × 181 mm
  • Protection class: IP44 (weather-resistant)
  • Housing/frame materials: Aluminium profile; shatter-proof thermoplastic frame
  • Power / connectivity: AC/DC operation; reverse-polarity-protected, short-circuit-proof 2-wire bus
  • Audio: Weather-resistant speaker; electret microphone; speakerphone with echo and background-noise suppression
  • Call button: White LED illumination; audible acknowledgement; exchangeable nameplate without tools
  • Security: Torx screw theft protection

Especificações

Especificações
Altura
181 mm
Código de proteção internacional (IP)
IP44
Cor do produto
Alumínio
Iluminação do teclado
Sim
Largura
110 mm
Mãos-livres
Sim
Material da carcaça
Alumínio, termoplástico
Número de botões
1
Profundidade
19 mm
Tecnologia de conectividade
Com fios
Temperatura de funcionamento (T-T)
-25 - 70
Tipo de alimentação da unidade exterior
AC/DC
Unidade exterior incluída
Sim
Unidade interior incluída
No

Folheto

Abrir documento

Documento

Abrir documento
