Intercomunicador áudio Orno OR-DOM-RL-901/RL-3208A, 1 família, 2 fios, montagem à superfície, branco, 9094

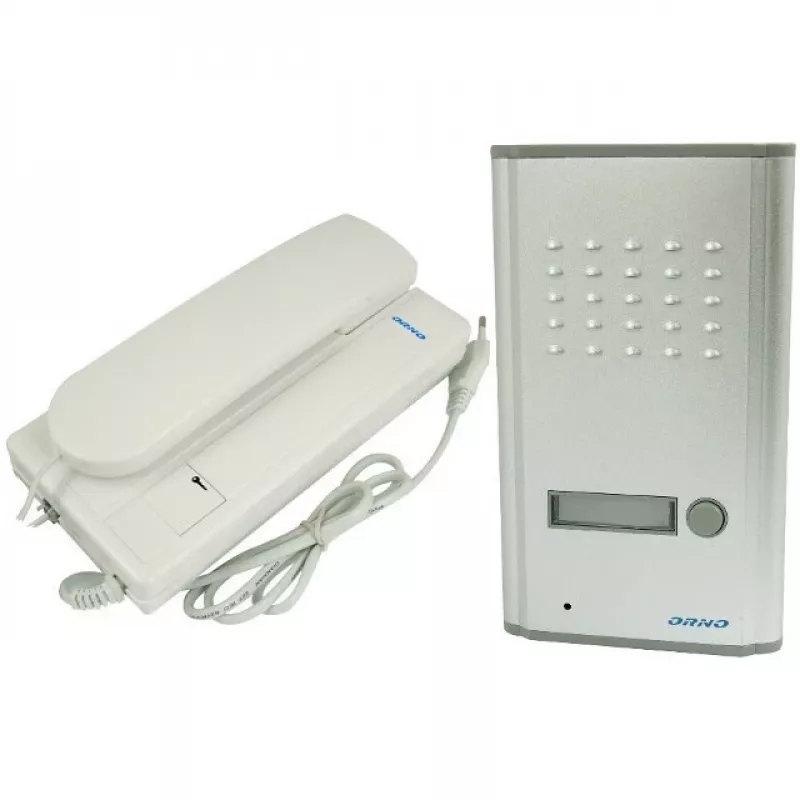

The ORNO OR-DOM-RL-901/RL-3208A is a complete single-family audio intercom system designed for reliable and clear communication. This set includes one outdoor panel (model RL-3208A) and one indoor uniphone (model RL-901), connected via a simple 2-wire cable. Ideal for residential use, it offers door release functionality and is built with durable materials for long-lasting performance.

Advantages

Easy to install with surface mount design and 2-wire connection. The outdoor panel features an aluminum alloy housing with IP44 protection, ensuring resistance against weather conditions. The uniphone provides clear audio and includes a door release button to control an electric strike (max 500mA). Supports cable runs up to 150m with 0.75mm² cable.

Suitable for

• Single-family homes
• Apartments requiring a simple audio intercom
• Surface mount installations on walls or posts

Key specifications

• System Type: Audio Intercom
• Number of Families: 1

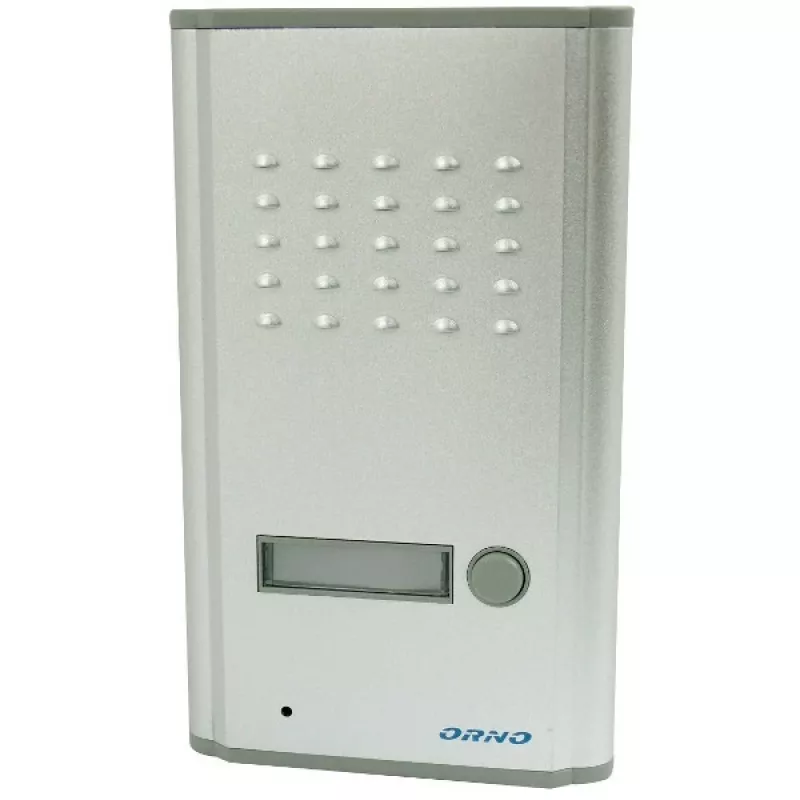

• Outdoor Panel: ORNO RL-3208A, Aluminum Alloy, IP44, 140x90x30 mm
• Uniphone: ORNO RL-901, White, 210x80x45 mm
• Wiring: 2-wire
• Power Supply: AC 230V 50Hz input, DC 12V 1A output
• Door Release: Yes, max 500mA
• Max Cable Length: 150m (0.75mm²)
• Operating Temperature: Outdoor -20°C to +50°C, Uniphone 0°C to +55°C

Recommendations

For optimal performance, use a 2-wire cable with a cross-section of at least 0.75mm² and ensure the power supply is properly connected. The system is compatible with most standard electric strikes.
