Interface Roger RUD-3-DES, leitor administrador

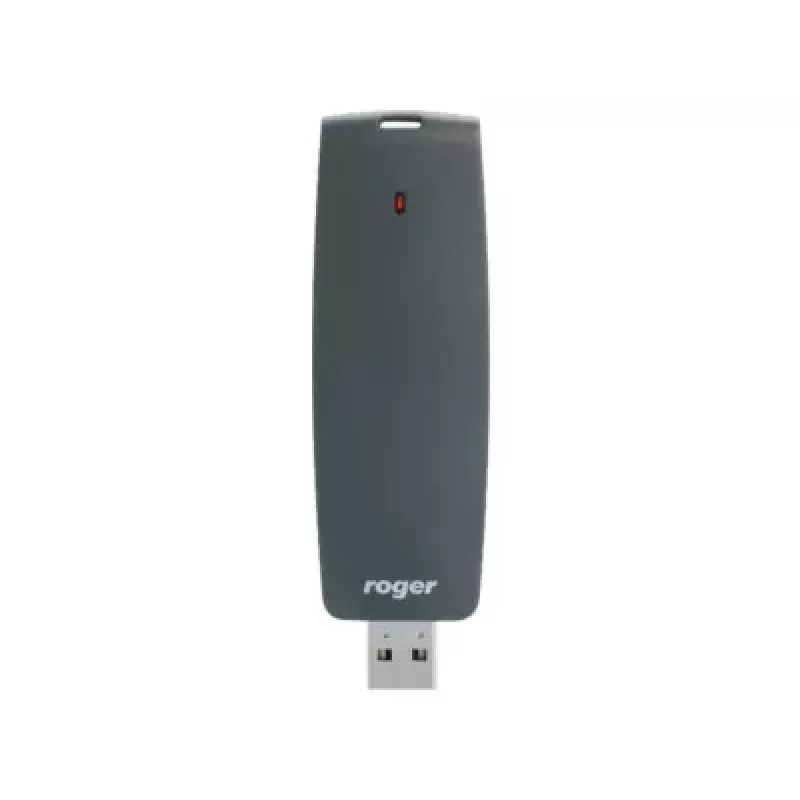

The Roger RUD-3-DES is a desktop administrator reader and transponder programmer designed for the RACS 5 access control system. It enables programming and management of MIFARE transponders via USB connection, supporting a wide range of MIFARE technologies including Classic, Ultralight, and DESFire EV1/EV2/EV3.

Advantages

Easy desktop operation with integrated USB cable, multi-color LED indicator for status, and compatibility with the latest MIFARE DESFire EV3 transponders. Firmware updates via USB ensure future-proof functionality.

Suitable for

• Access control system administrators
• Programming and personalizing MIFARE transponders
• Integration with Roger RACS 5 systems

Key specifications

• Product Type: Administrator Reader / Transponder Programmer
• Supported Transponder Technologies: MIFARE Classic, Ultralight, DESFire EV1, EV2, EV3
• PC Interface: USB 2.0 Full Speed
• Operating Frequency: 13.56 MHz
• Power Supply: 5V DC via USB
• Current Consumption: Max. 100 mA
• Housing Material: ABS Plastic
• Color: Black
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C
• Relative Humidity: 10% to 95% (non-condensing)
• IP Rating: IP20
• Mounting Type: Desktop
• Cable Length: Approx. 1.5 m (integrated USB cable)
• Certifications: CE

Recommendations

For optimal performance, use with Roger RACS 5 software and compatible MIFARE transponders. Ensure USB port provides stable 5V power.
