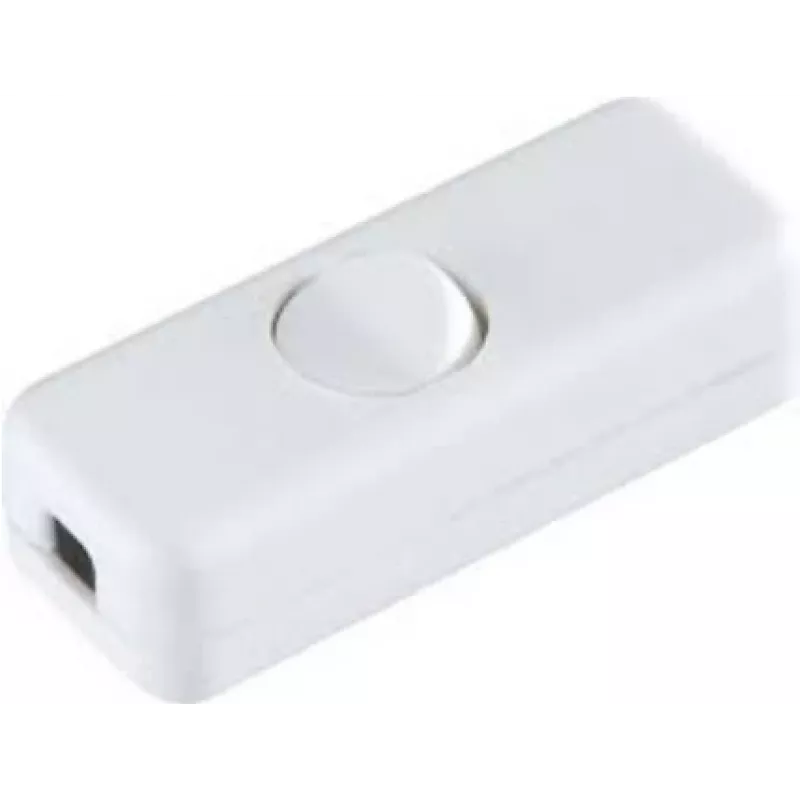

Interruptor de balancim Bachmann 924.037 1P branco — 61×23×15 mm

Bachmann 924.037 is a single-pole (1P) white rocker switch designed for basic on/off control in compact installations. With external dimensions of 61×23×15 mm it fits small panels, control boxes or equipment housings where a manual switching element is needed. The switch provides straightforward switching functionality and is intended for use with double-insulated flat cable 2 x 0.75 mm². The design includes a screwed housing and strain relief to secure the cable entry and screwed contacts to ensure reliable electrical connection.

Advantages

The rocker switch offers a compact footprint and a clear on/off action suitable for simple control circuits. A screwed housing and strain relief improve mechanical stability at the cable entry, while screwed contacts and a dedicated connecting terminal for the neutral conductor support secure electrical connections. The white housing provides a neutral appearance that integrates into various control panels and equipment enclosures.

Suitable for

• Panel-mounted on/off control in small electrical devices
• Replacement or retrofit of basic rocker switches in equipment
• Switching single-phase control circuits with double-insulated flat cable 2 x 0.75 mm²
• Applications requiring a compact manual switch with secure cable fixation

Key specifications

• Switch type: single-pole (1P) rocker switch
• Color: white
• External dimensions: 61 × 23 × 15 mm (width × depth × height)
• Cable compatibility: double-insulated flat cable 2 x 0.75 mm²
• Terminals: screwed contacts
• Housing: screwed housing with strain relief
• Additional terminal: connecting terminal for neutral conductor

How to use

Mount the switch into the prepared panel cutout matching the external dimensions and secure the housing with the provided screws. Route the double-insulated flat cable 2 x 0.75 mm² into the housing and fasten it using the strain relief to prevent mechanical stress on the connections. Connect the live and neutral conductors to the corresponding screwed contacts, observing correct polarity and local electrical codes. After tightening the screwed contacts, verify the mechanical retention of the cable and test the switch operation to confirm reliable on/off switching.

Recommendations

Use the switch only within the specified cable type and conductor cross-section. Ensure all wiring is performed by a qualified person and that power is disconnected before installation or maintenance. Regularly check screwed terminals for tightness in applications subject to vibration.
