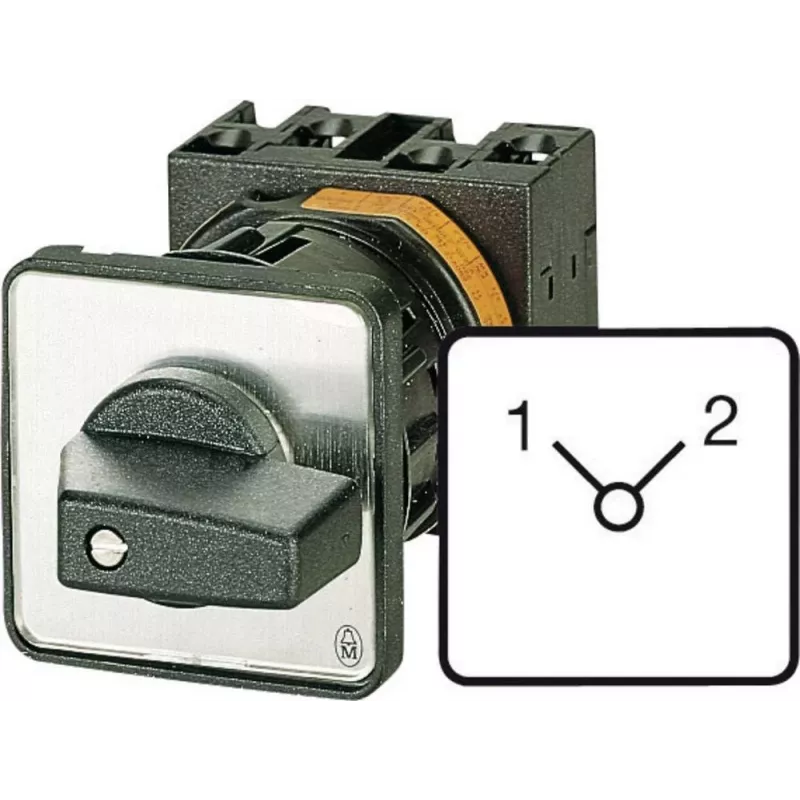

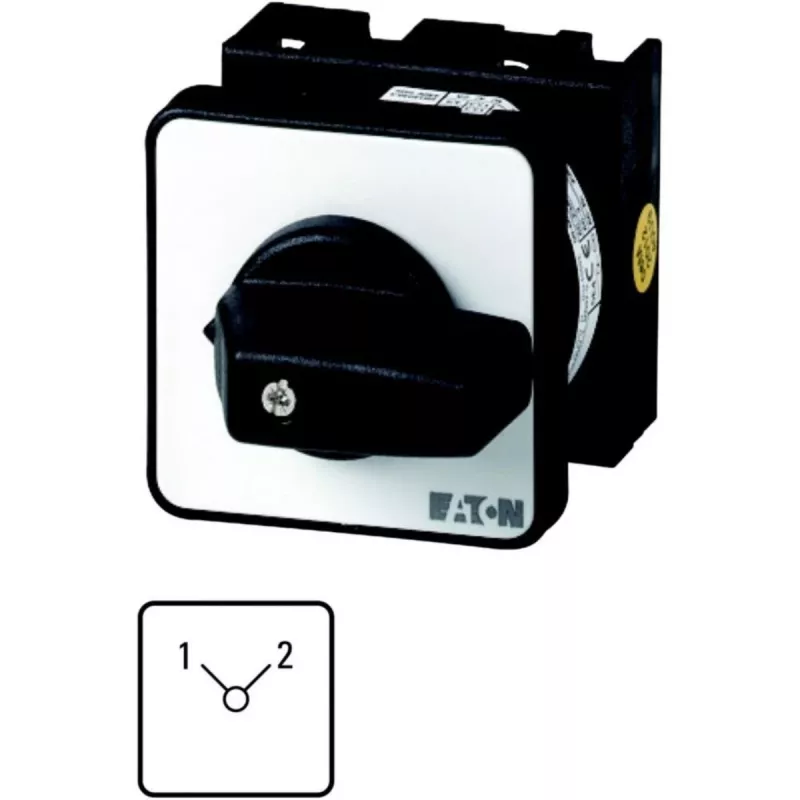

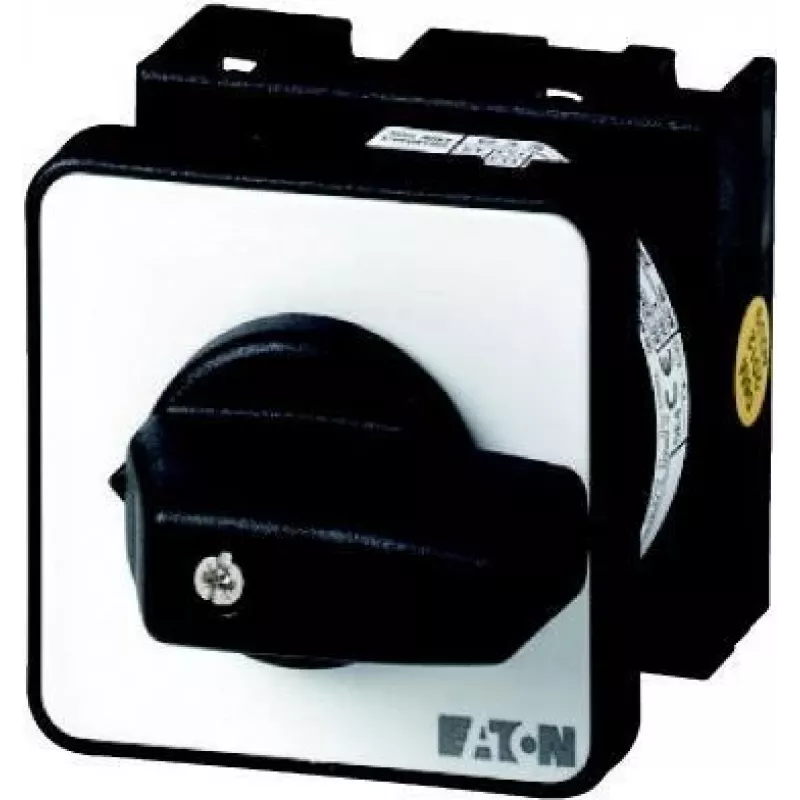

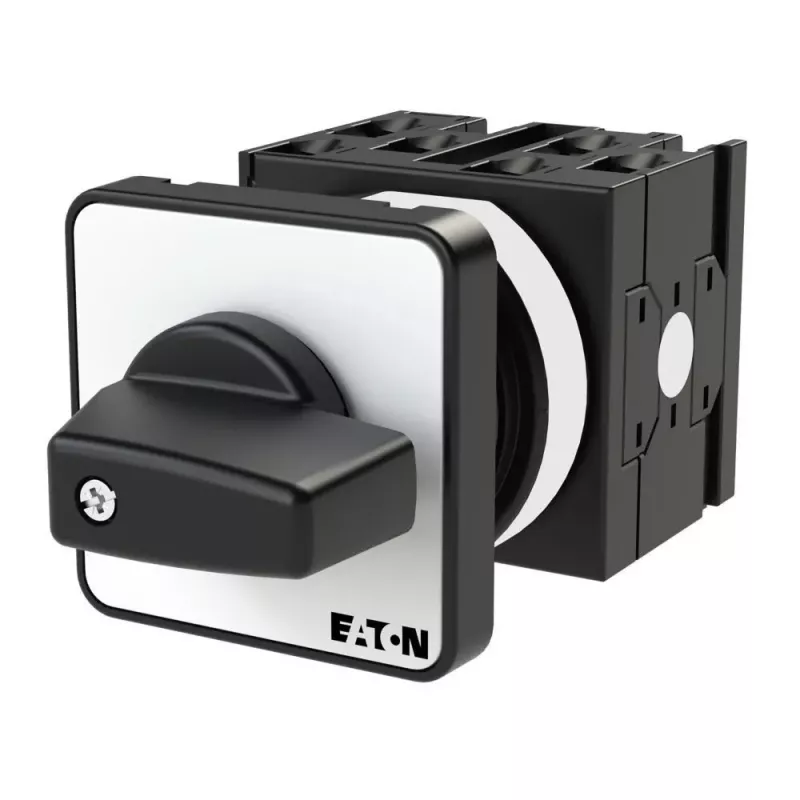

Interruptor de came Eaton T0-3-8222/E 3 polos 20A 690V AC, preto/prateado 048339

Rated at 20 A and 690 V AC, the Eaton T0-3-8222/E cam switch delivers robust circuit control for industrial applications. With a 3-pole configuration and a 90° switching angle, it provides reliable on-off switching for motors up to 5.5 kW (AC-23A, 400 V). The front-mounted design with IP65 protection ensures dependable operation even in demanding environments.

Overview

The Eaton T0-3-8222/E is a main switch/cam switch engineered for manual motor and circuit control. It features three poles, two switching positions (0-1), and a rated operational current of 20 A. The switch is designed for front mounting with a 90° switching angle and screw terminals for secure wiring. Its black handle and silver front plate offer clear visual indication and a professional appearance.

What stands out

• High rated operational voltage of 690 V AC for versatile industrial use.
• IP65 front protection against dust and water jets.
• Robust construction compliant with IEC/EN 60947 and VDE standards.
• Wide ambient operating temperature range from -25 °C to +50 °C.
• Rated impulse withstand voltage of 6 kV for enhanced surge resistance.

Technical details

• Switch type: Main switch / Cam switch
• Number of poles: 3
• Rated operational current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Rated power AC-23A at 400 V: 5.5 kW
• Rated power AC-3 at 400 V: 3 kW
• Switching positions: 2 (0-1)
• Switching angle: 90°
• Mounting type: Front mounting
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Connection type: Screw terminals
• Handle colour: Black
• Front plate colour: Silver
• Standards compliance: IEC/EN 60947, VDE
• Ambient operating temperature: -25 °C to +50 °C
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-circuit current (Icw): 0.32 kA (1 s)

Our verdict

The Eaton T0-3-8222/E is a reliable and durable cam switch for industrial control panels. Its high voltage rating, IP65 front protection, and compliance with international standards make it a solid choice for motor and circuit switching applications.
