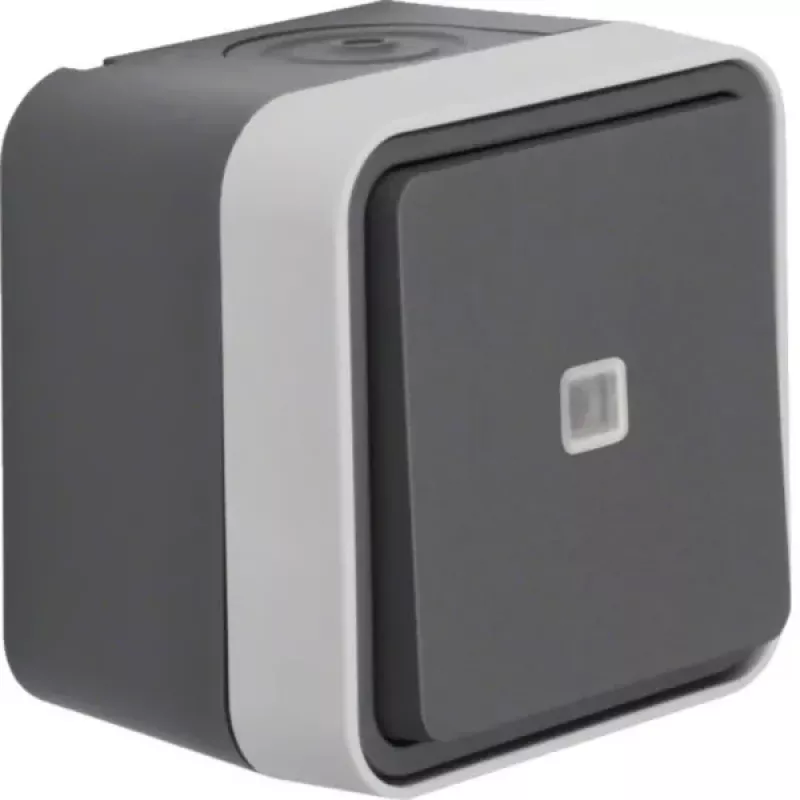

Interruptor de comutação com luz de controlo Hager WNC003, saliente, IP55, cinzento

In damp or dusty environments, standard light switches often fail prematurely or pose safety risks. The Hager WNC003 control two-way switch solves this by providing a robust, surface-mounted solution with IP55 protection, ensuring reliable switching in challenging conditions. Its integrated indicator light allows you to easily locate the switch even in the dark, while the two-way functionality enables convenient control of a single light from two different locations.

Who is it for

This switch is ideal for electricians, facility managers, and homeowners who need a dependable switching solution for garages, basements, workshops, outdoor covered areas, and other spaces where moisture or dust may be present. It is particularly suited for installations where surface mounting is preferred or required, and where a clear visual indication of the switch state is beneficial.

Main features

• Surface-mounted design for easy installation on walls or panels
• IP55 rated: protected against dust and water jets
• Two-way switching: control one light from two locations
• Built-in neon indicator light for visibility in the dark
• Rated for 250 V AC and 10 AX, suitable for resistive and inductive loads
• Robust thermoplastic housing, halogen-free and UV resistant
• Impact resistance IK07 for durability
• Wide operating temperature range: -25 °C to +45 °C

Specifications

• Brand: Hager
• Model: WNC003
• MPN: WNC003
• EAN: 3250617170031
• Product type: Control two-way switch
• Mounting type: Surface-mounted (AP)
• IP protection rating: IP55
• Colour: Grey
• Series: Hager W.1
• Rated voltage: 250 V AC
• Rated current: 10 AX
• Switch function: Two-way switch
• Control function: With indicator light
• Indicator light type: Neon lamp
• Connection type: Screw terminals
• Material: Thermoplastic
• Halogen-free: Yes
• Number of rockers: 1
• Number of poles: 1-pole
• Operating temperature range: -25 to +45 °C
• UV resistance: Yes
• Impact resistance: IK07

Tips

For outdoor installations, ensure the switch is mounted in a location protected from direct rain and use appropriate cable glands to maintain the IP55 rating. The indicator light can be wired to show the switch state or act as a locator light; consult the wiring diagram for your specific application.
