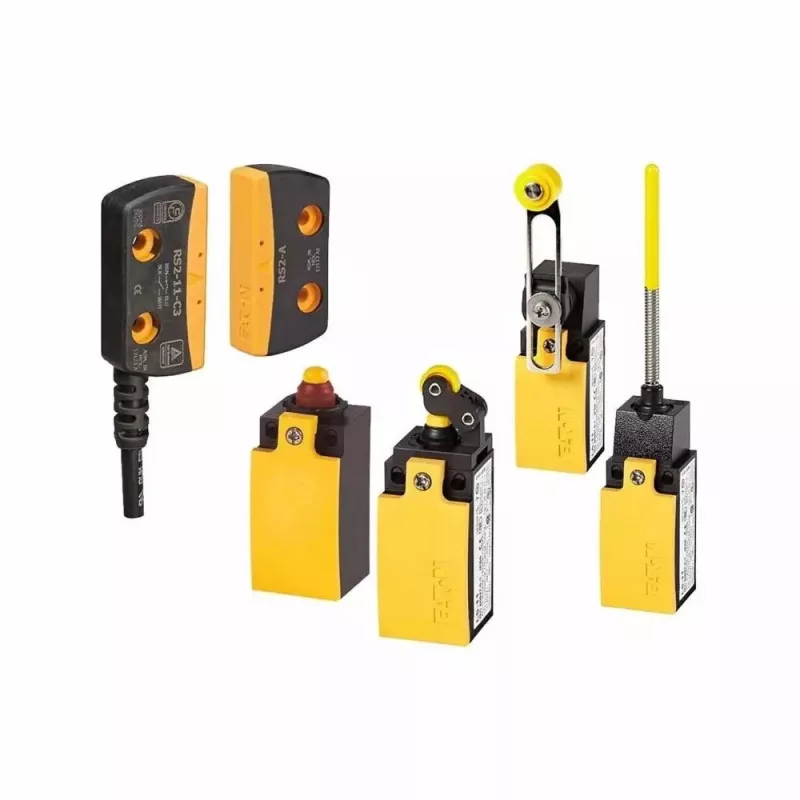

Interruptor de posição Eaton LS-Titan LS-20 com êmbolo de cúpula, 1NO+1NC, IP66/IP67 266120

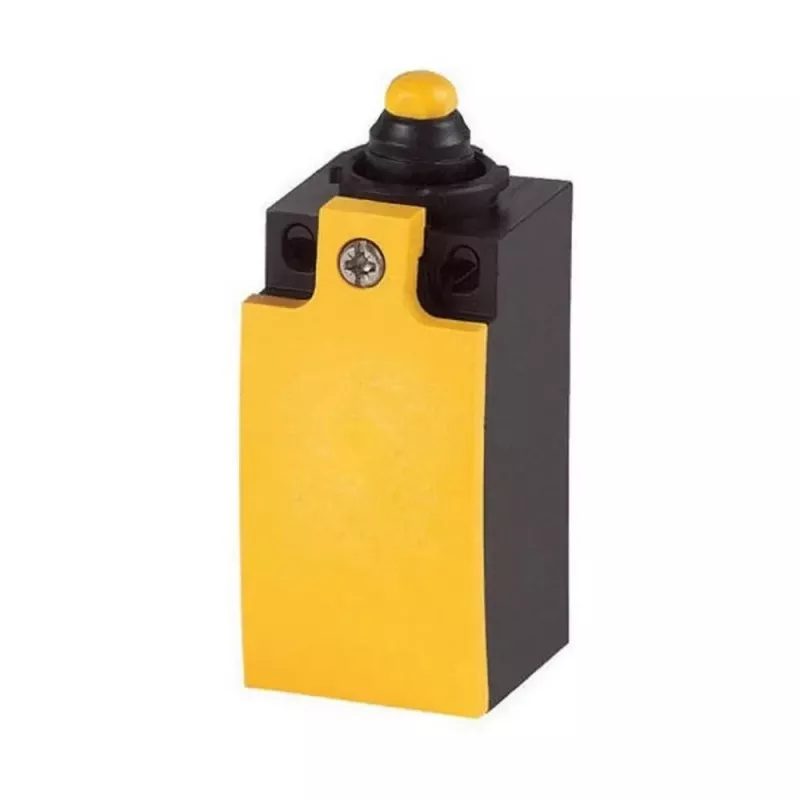

Eaton LS-Titan position switch with dome plunger actuator, offering reliable position detection in industrial applications. Its snap-action switching element provides 1 NO and 1 NC contacts, ensuring dependable circuit control.

Advantages

The LS-20 features a robust thermoplastic housing with IP66 and IP67 protection, making it suitable for harsh environments. The dome plunger actuator allows for precise actuation, and the screw terminals enable secure wiring.

Suitable for

• Machine tools and conveyor systems
• Industrial automation and control panels
• Applications requiring high mechanical durability

Key specifications

• Actuator type: Dome plunger
• Contact configuration: 1 NO + 1 NC
• Switching element: Snap-action
• Housing material: Thermoplastic
• Protection class: IP66, IP67
• Rated operational current AC-15: 6 A at 230 V AC
• Rated operational current DC-13: 0.5 A at 230 V DC
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 6 kV
• Cable entry: 1 x M20 x 1.5
• Connection type: Screw terminals
• Operating temperature: -25 to +70 °C
• Mechanical life: 10 million operations
• Electrical life: 0.5 million operations
• Standards: IEC/EN 60947-5-1
• Mounting: Base mounting (2 x M4 screws)
• Series: LS-Titan
• Degree of pollution: 3
• Short-circuit protection: Fuse 10 A gG/gN

Recommendations

For reliable position sensing in demanding industrial environments, the Eaton LS-20 offers a durable and precise solution.
