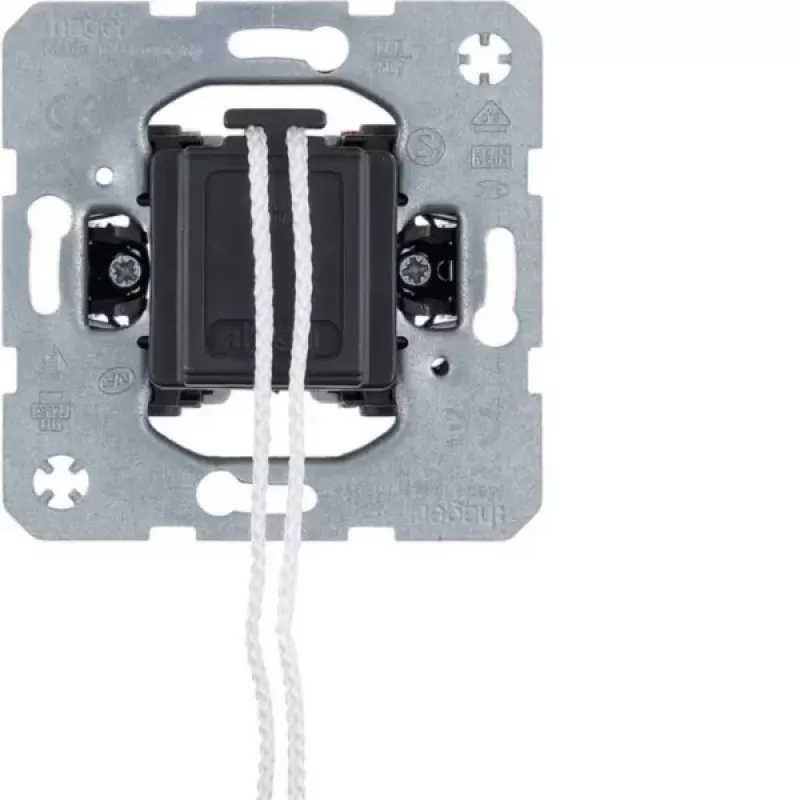

Interruptor de puxar HAGER WDE3966 com contacto de sinalização separado, 10 AX, 250 V, branco polar

The HAGER WDE3966 stands out with its separate signalling contact, allowing the switch position to be monitored independently from the load circuit—a feature not found on standard pull switches. This makes it ideal for applications where status indication is required, such as in damp rooms, basements, garages, or covered outdoor areas.

Highlights

• Pull cord operation for easy switching from a distance
• Separate signalling contact for remote status monitoring
• Rated current 10 AX, suitable for resistive and inductive loads
• Flush-mounted design with screw terminals
• Halogen-free thermoplastic construction in polar white

In daily use

The pull cord mechanism allows convenient control of lighting or other devices without the need to reach a wall switch. The separate signalling contact can be wired to an indicator lamp or a building management system, providing clear feedback on the switch state. The robust thermoplastic housing is halogen-free, contributing to improved fire safety in installations.

Full specifications

• Switch type: Pull switch
• Switch function: On/Off or changeover
• Separate signalling contact: Yes
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Mounting type: Flush-mounted
• Material: Thermoplastic, halogen-free
• Colour: Polar white
• Connection type: Screw terminals
• Number of poles: 1
• Design line: Hager W.1 (Berker W.1)
• Terminal capacity: 1.5 - 2.5 mm² rigid conductors
• Mounting depth: 32 mm

Final note

The HAGER WDE3966 combines a robust pull switch with a separate signalling contact, offering both convenience and enhanced monitoring capabilities for demanding environments.
