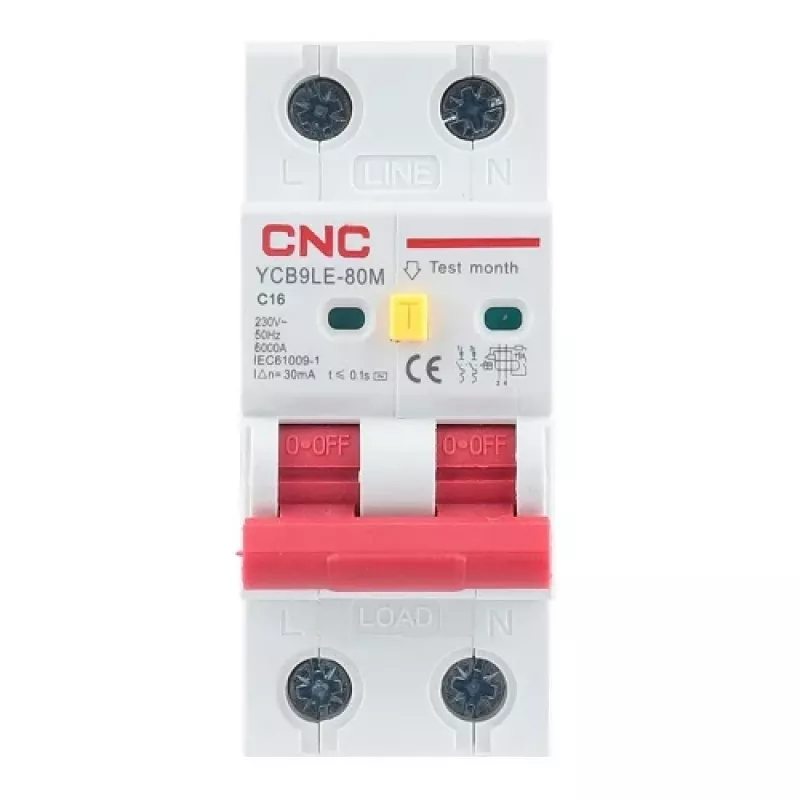

Interruptor diferencial CNC NV821877 2 polos 16A 30mA

Residual current circuit breaker with overcurrent protection (RCBO), 2 poles, rated current 16 A and residual sensitivity 30 mA. The CNC NV821877 combines residual-current detection and overcurrent protection in a single modular device for DIN-rail installation in residential and light-commercial electrical panels. It is designed to disconnect supply quickly in case of earth leakage or overload/short-circuit, helping to reduce electric shock and fire risk.

Advantages

The RCBO integrates both residual-current and short-circuit/overload protection, saving space in the distribution board and simplifying wiring. It features a clear contact position indicator (red = closed, green = open), an anti-mistake contact terminal block, and a flame-retardant housing with high temperature and impact resistance. The device supports top-side connection and accepts cable or pin-type busbar up to 35 mm².

Suitable for

• Residential electrical distribution boards
• Small commercial installations
• Protecting circuits with basic earth-leakage and overcurrent protection requirements
• DIN-rail (35 mm) modular assemblies

Key specifications

• Type: RCBO, 2 poles
• Rated current: 16 A
• Tripping characteristic: Class C
• Residual sensitivity: 30 mA
• Rated voltage: AC 230 V
• Rated short-circuit capacity (Icn): 6000 A
• Rated impulse withstand voltage (Uimp): 4000 V
• Insulation voltage (Ui): 500 V
• Frequency: 50/60 Hz
• Break time: ≤ 0.1 s
• Mechanical life: 10000 cycles; Electrical life: 4000 cycles
• Protection degree: IP20
• Connection: from top; cable or pin-type busbar; up to 35 mm²
• Mounting: DIN rail EN 60715 (35 mm)
• Operating temperature: -25 °C to +70 °C
• Dimensions: 82 × 36 × 78 mm
• Standards: IEC 61009-1 / EN 61009-1
• Warranty: 24 months

How to use

Install the CNC NV821877 on a 35 mm DIN rail in the distribution board and secure electrical connections from the top according to wiring diagrams and local regulations. Use appropriate conductors or pin-type busbars up to 35 mm². Ensure the device is connected to the correct phase and neutral poles and that the earth conductor is present in the installation. After wiring, test the device using the built-in test function or a suitable RCD tester to confirm correct operation.

Recommendations

Use this RCBO in circuits where combined residual-current and overcurrent protection is required; perform periodic testing (monthly recommended) and follow national electrical codes for installation, testing, and maintenance.
