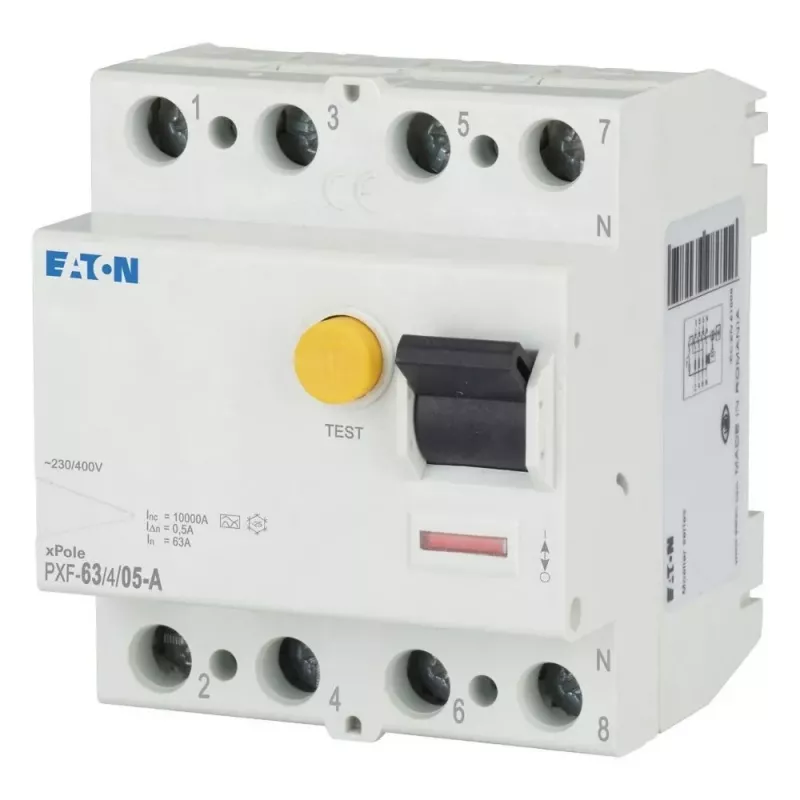

Interruptor diferencial (RCCB) Eaton PXF-63/4/05-A, tetrapolar, 63 A, 50 mA, tipo A 236805

Residual current circuit breaker (RCCB) with a rated current of 63 A and 4 poles, providing protection against AC and pulsating DC residual currents. Its 50 mA sensitivity and instantaneous tripping ensure rapid disconnection in the event of a fault, enhancing electrical safety in industrial and commercial installations.

Advantages

Type A residual current detection covers both sinusoidal AC and pulsating DC fault currents, making it suitable for circuits with electronic loads. The 10 kA rated short-circuit current withstand capacity ensures reliable operation under fault conditions. DIN rail mounting simplifies installation in distribution boards, and the 4-module width optimizes space usage.

Suitable for

• Protection of three-phase circuits with neutral in industrial control panels
• Commercial building distribution systems requiring residual current protection
• Installations with electronic equipment generating pulsating DC leakage currents

Key specifications

• Rated current: 63 A
• Number of poles: 4
• Rated residual current: 50 mA
• Residual current type: A
• Rated voltage: 230/400 V AC
• Rated frequency: 50/60 Hz
• Rated short-circuit current: 10 kA
• Mounting type: DIN rail
• Degree of protection: IP20 (terminals), IP40 (enclosure)
• Operating temperature range: -25 to +50 °C
• Standards: IEC/EN 61008
• Tripping characteristic: Instantaneous
• Terminal capacity (rigid): 1.5 - 50 mm²
• Terminal capacity (flexible): 1.5 - 35 mm²
• Mechanical endurance: 20,000 operations
• Electrical endurance: 10,000 operations
• Width in modules: 4

Recommendations

For reliable residual current protection in demanding industrial environments, this Eaton RCCB offers robust performance and compliance with international standards.
