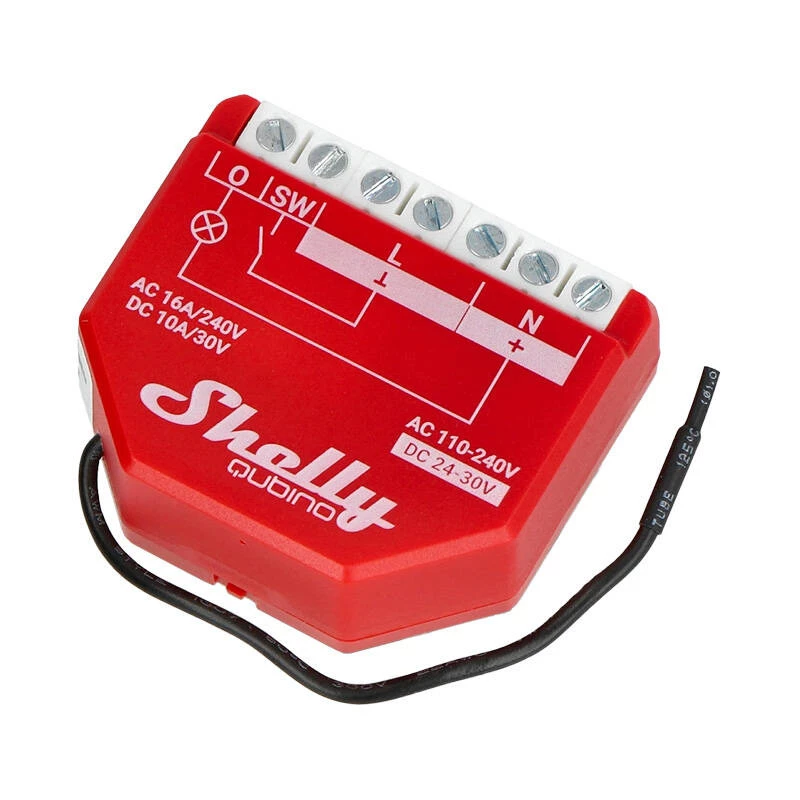

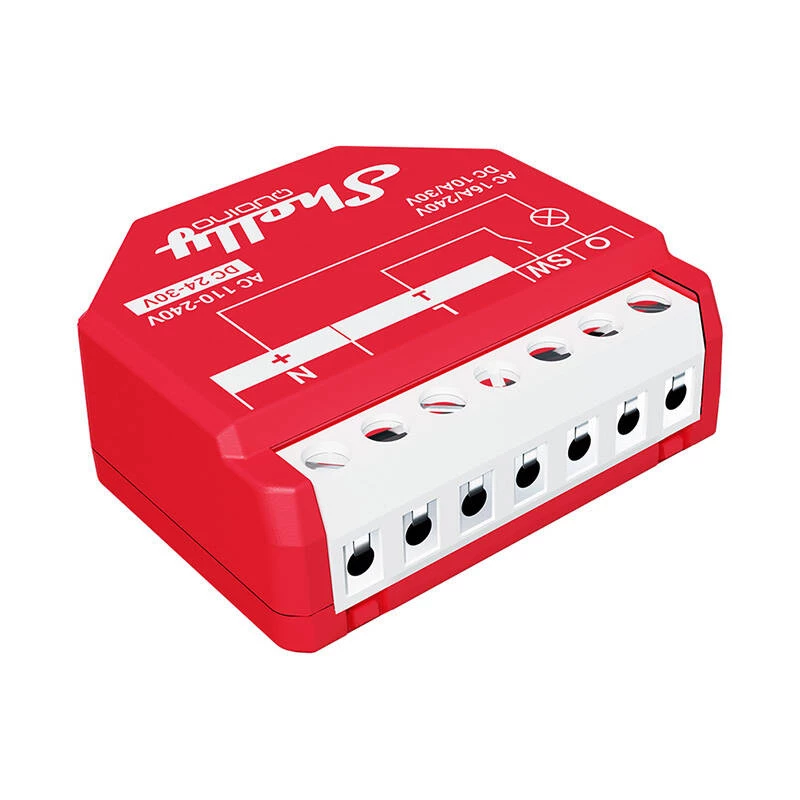

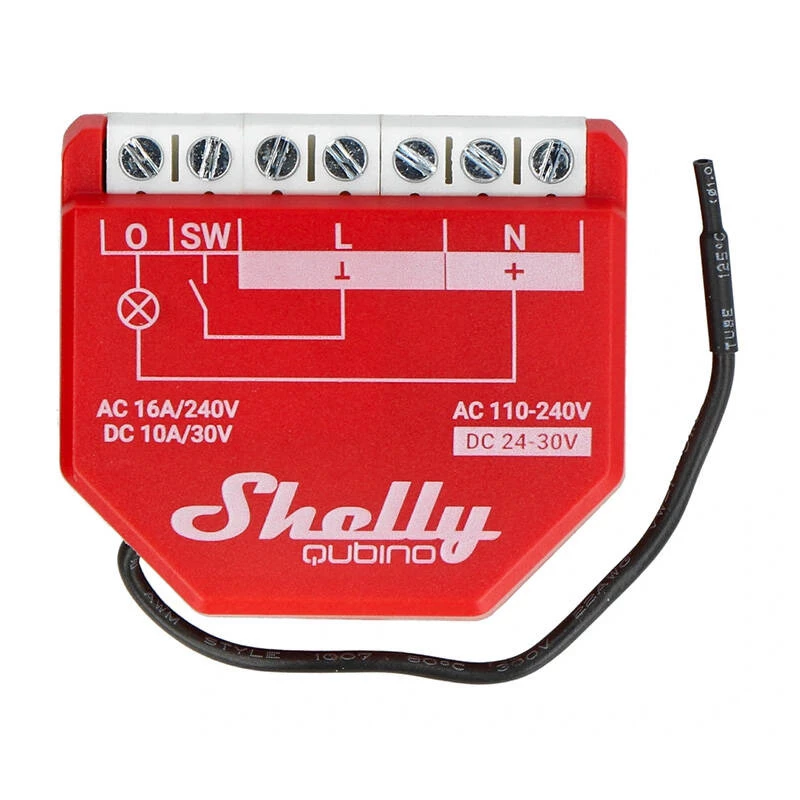

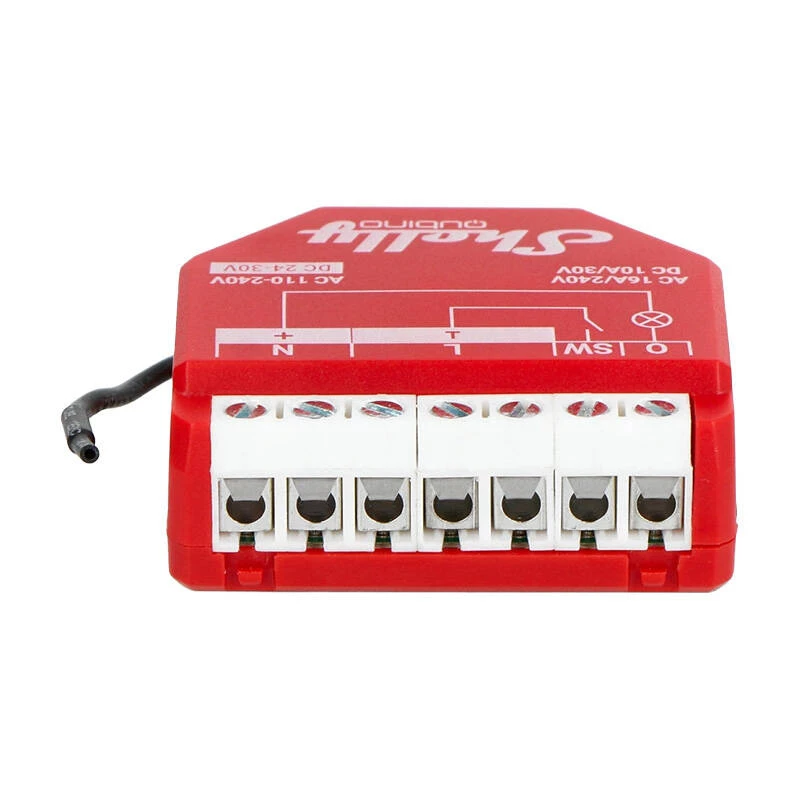

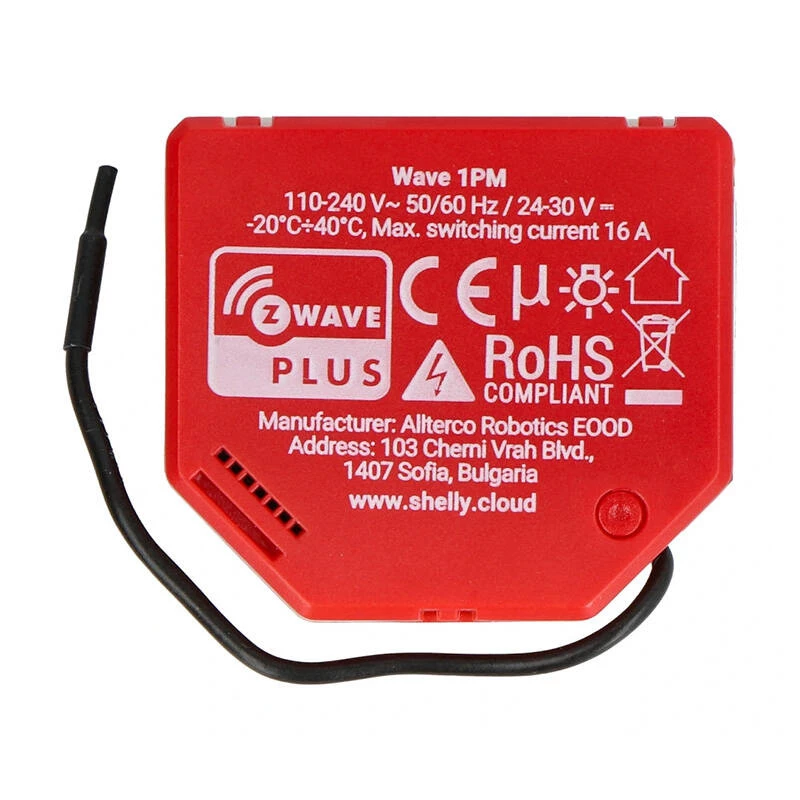

Interruptor inteligente Shelly W 1PM plástico 16A 110–240V, Z-Wave, 868,4 MHz, vermelho, 42×37×16 mm

The Shelly Qubino Wave 1PM is a compact smart switch designed for retrofit installation behind existing switches or sockets. Made of durable plastic, it supports AC supply 110–240 V and DC supply 24–30 V and provides a dry (voltage-free) output contact with a switching capacity up to 16 A. The device uses the Z-Wave S800 platform, allowing interoperability with certified Z-Wave gateways and devices for remote control and automation.

Advantages

Shelly Qubino Wave 1PM offers wide compatibility with Z-Wave networks and works with more than 4000 Z-Wave certified devices and gateways. Its dry contact output allows connection of diverse loads up to 16 A. The unit supports a wide range of output voltages including low-voltage applications and is suitable for compact installations thanks to its small dimensions. Using Z-Wave associations, the device can trigger direct device-to-device actions without a hub, and it supports schedules and scenes when used with a Z-Wave gateway.

Suitable for

• Controlling lights and LED strips
• Automating gates, garage doors and electric locks
• Managing irrigation and sprinkler systems
• Switching sockets and office equipment
• Integration into Z-Wave home automation scenes

Key specifications

• Brand: Shelly (Qubino Wave 1PM, MPN: SHELLY_W_1PM, EAN: 3800235269022)
• Switch type: 1-channel smart switch with dry contact
• Breaking capacity: up to 16 A
• AC supply: 110–240 V
• DC supply: 24–30 V (device also mentions operational DC ranges 12 V and 24–48 V for certain uses)
• Dimensions: approximately 42 mm (width) × 16 mm (depth) × 37 mm (height)
• Protocol: Z-Wave (S800 chip generation)

How to use

Install the Wave 1PM behind an existing switch or socket following local wiring regulations and safety standards. After wiring, include the device into your Z-Wave network using a compatible certified gateway. Configure output behavior, schedules and scenes through your gateway app. For direct device interactions, configure Z-Wave associations to enable local, hub-less control between supported devices. The dry contact output connects to the target load; ensure the connected load does not exceed 16 A.

Recommendations

Use a certified Z-Wave gateway for full remote control, schedules and scene management. Verify compatible voltages and wiring before installation, and consult a qualified electrician if unsure. Do not exceed the 16 A switching capacity and follow manufacturer instructions for safe retrofit mounting behind switches or sockets.
